DONGGUAN YUYANG INSTRUMENT CO.,LTD
China Good Quality Manufacturer of Testing Equipment
|Place of Origin:||CHINA|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Plywood case|
|Delivery Time:||30 days|
|Supply Ability:||5 sets|
|Test Standard:||IEC 60754-1&2: 2011||Application Field:||Wire&cable|
|Size:||889 Mm (W) X 432 Mm (D) X 406mm (H)||Control Unit:||430 Mm (W) × 370 Mm (D) × 320 Mm (H)|
|Color:||White||Electrical:||110V AC 60Hz / 230V AC 50Hz, 15A|
|Ambient Temperature:||Operating 10°C To 35°C||Warranty:||1 Year|
|Weight:||76Kg||Keyword:||Halogen Acid Gas Release Corrosion Testing Equipment|
cable testing equipment,
flame test chamber

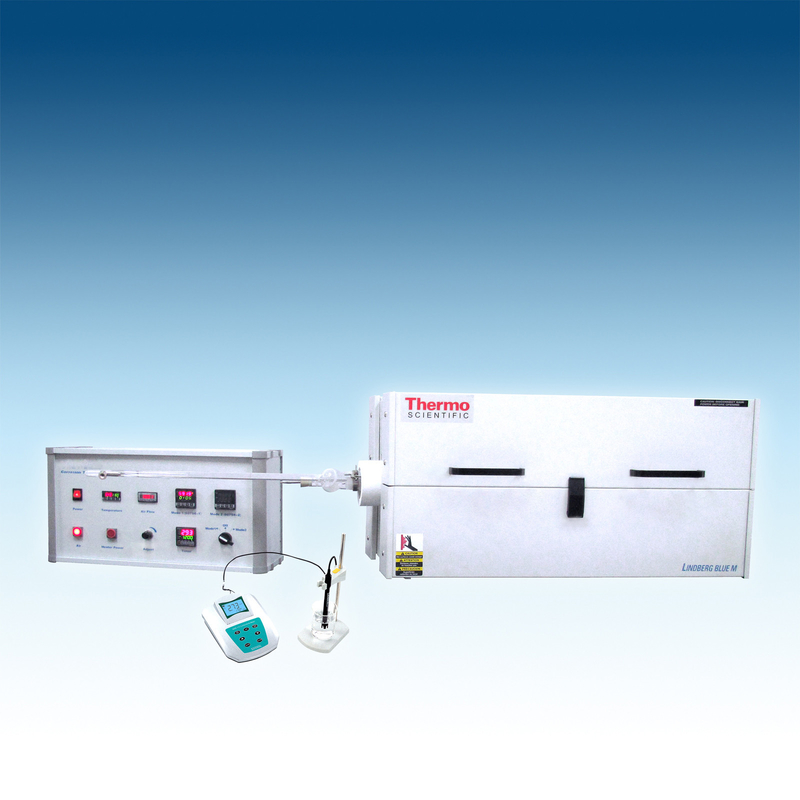

Halogen Acid Gas Release Corrosion Testing Equipment IEC 60754-1&2 Test Standard
The International Electrotechnical Commission IEC 60754 Part 1 and Part 2 test is performed to determine the degree of acidity of gases evolved during the combustion of materials taken from electric cables by measuring the pH & conductivity.
IEC 60754-1 is halogen-free cable came from and including the polymer to halogenated compounds on the basis of the additive compounds emitted during combustion, except the fluoridation hydracids, it is measurement for gas of halogen volume, IEC 60754-2 for electrical or optical cable from compounds emitted during the combustion of measure the gas of oxidation limit.
IEC 60754-1: Test on gases evolved during combustion of materials from cables - Part 1: Determination of the amount of halogen acid gas
IEC 60754-2: Test on gases evolved during combustion of electric cables - Part 2: Determination of degree of acidity of gases evolved during the combustion of materials taken from electric cables by measuring pH and conductivity.
1200°C Split-Hinge Tube Furnaces for horizontal use.
Heating element modules for superior radial and linear temperature uniformity and fast heat up and cool down.
Long-life, energy-efficient elements require little or no maintenance.
Mode conversion switch (Test method of IEC 60754-1&2 could be selected).
Alarm Temperature Controller: Temp controller to protect overheating of furnace.
Quartz work tube and sample lading assembly.
pH and conductivity measuring instruments with digital display and electrodes Stirrer.
Mass flow meter control the flow rate of air and digital display.
Activated Charcoal (air filtering): Filter for filtering the supplied air (activated charcoal).
Silica Gel (air drying): Device for drying the supplied air.
100 ceramic sample boats
Installation requirements of IEC 60754-1&2 Halogen Acid Gas Release Corrosion Tester
|Electrical||110V AC 60Hz / 230V AC 50Hz, 15A|
|Ambient Temperature||Operating 10°C to 35°C|
