FMVSS 302 Motor Vehicle Materials Horizontal Flammability Tester Burning Behavior Test Equipment

FMVSS 302 Motor Vehicle Materials Horizontal Flammability Tester Burning Behavior Test Equipment

  • FMVSS 302 Motor Vehicle Materials Horizontal Flammability Tester Burning Behavior Test Equipment
  • FMVSS 302 Motor Vehicle Materials Horizontal Flammability Tester Burning Behavior Test Equipment
FMVSS 302 Motor Vehicle Materials Horizontal Flammability Tester Burning Behavior Test Equipment
Product Details:
Place of Origin: CHINA
Brand Name: YUYANG
Certification: ISO
Model Number: HFT
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: 60 days
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Test Standard: ISO 3795, ASTM D5132, FMVSS 302 Power Supply: 110 To 230 V 5 Amps
Size: 430 Mm (W) X 310 Mm (D) X 360 Mm (H) Weight: 12KG
Gas Supplies: Propane Warranty: 1 Year
High Light:

45 degree flammability tester

,

flammability test equipment

FMVSS 302 Motor Vehicle Materials Horizontal Flammability Tester Burning Behavior Test Equipment



INTRODUCTION



EC Directive 95/28/EC relates to the burning behavior of materials used in the interior construction of certain categories of motor vehicles, and is intended to ensure that they meet fire safety standards.
95/28/EC fire test to interior material of motor vehicle to determine the Characteristic of Burning:



  • Horizontal Burning Behavior

  • Vertical Burning Behavior

  • Burning Dropping



Horizontal Burning Behavior Tester can be used for determining the horizontal burning rate of motor vehicle materials.



FEATURE

  • This Horitontal Burning Behavior Tester is suitable to determination for flammability, after burning, flame resistance and burning speed in car organic materials.

  • ​Comply with ISO 3795, ASTM D5132, FMVSS 302 etc.

  • Comprised of draft free stainless steel cabinet with observation window, sample holder and door mounted burner.

  • ​Automated control of timing and gas supply

Installation requirements



Electrical

110 to 230 V 5 Amps

Ambient Temperature

Operating 10°C to 30°C

Dimensions

430 mm (W) x 310 mm (D) x 360 mm (H)

Weight

12KG

Applicable standards

ISO 3795, ASTM D5132, FMVSS 302

Gas

Propane

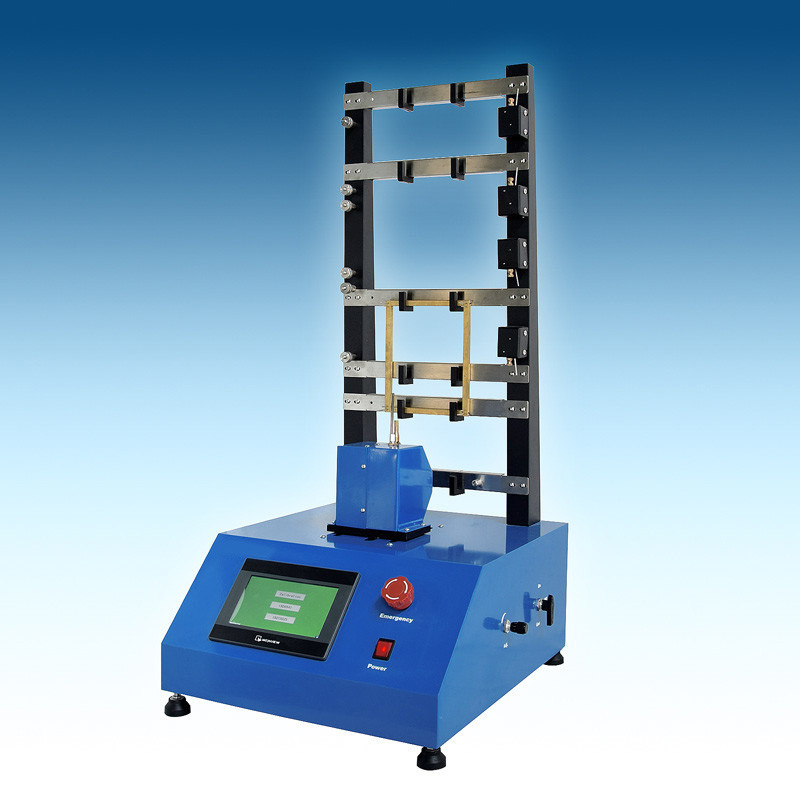

Photos of FMVSS 302 Motor Vehicle Materials Burning Behavior Test Equipment

FMVSS 302 Motor Vehicle Materials Horizontal Flammability Tester Burning Behavior Test Equipment 0
