Place of Origin:
China
Brand Name:
YUYANG
Certification:
GB4706, GB2423, GB7000.1, IEC60529GB4706, GB2423, GB7000.1, IEC60529
Model Number:
YYE039

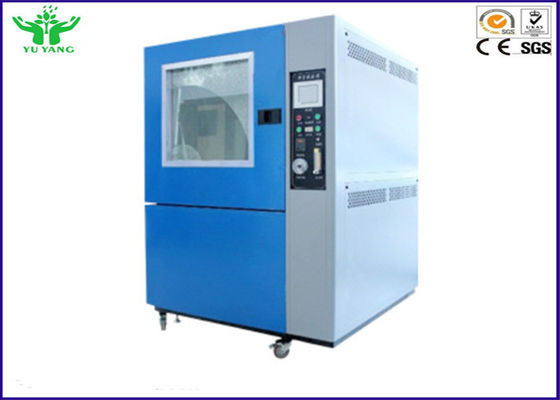

IP5X IP6X Professional Environment Sand Dust Test Chamber
IP5X IP6X Professional Environment Sand Dust Test Chamber +15～+40℃ 2 -4 Kg/m3
Application:
Professional Environment Sand Dust Test Chamber is designed according to GB4706, GB2423, GB7000.1, IEC60529,ect standards and meet the IPX5 and IPX6 dust test requirements. it use artificial dust environmental to test the dust-proof ability of sample tested in the situation of storage,transportation and performance.
Parameter:
| Temperature range: | +15～+40℃( dust dehumidification) |
| Humidity range: | relative humidity |
| Dust concentration in box/pipe: | 2Kg/㎡ |
| Dosage talc: | 2kg/ ㎡, can be recycled |
| Dust requirements: | dust used should contain 1Kg of dry quartz sand |
| Particle distribution: | A) Through 150 μm aperture, 104 μm diameter: 99%~100% B) Through 105 μm aperture, 64 μm diameter: 76%~86% C) Through 75 μm aperture, 52 μm diameter: 60%~70% |
| Nominal wire diameter: | 50um |
| Nominal spacing between lines: | 75um |
| Airflow velocity: | ＜ 2m/s |
| Wind path parts: | centrifugal fan |
| Chamber bearing: | product under test in the dust test box shall ＜ 40kg |
| Dust concentration: | 2 -4 Kg/m3 |
| Test chamber dimension: | 600×600×600mm (L*W*H) |
| Outer dimension: | 1150*1200*1750MM |
Characteristics:
1. The inner shell and outer shell of the test box are made of 304 stainless steel
2. Dust-blowing motor for the characteristics of stainless steel housing, sealing, low noise, high wind
speed
3. The inner shell of the box is shaped like a funnel, with adjustable vibration period,The dust settled
freely around the blowhole
4. An observation window is arranged on the door of the box to observe the status of samples in the box
when the dust blowing stops
5. Controller: programmable controller (this controller has the following kinds of arbitrary setting
control functions)
(a) Dust blowing time (stop, blow) h/m/s adjustable
(b) cycle time :any adjustable
(c) Preset test time :0s ~ 999h/99m/99s adjustable
(d) Power on: off -- on -- off
6. Simple parameter setting, no need to enter the program menu, can directly enter the parameters menu
can be modified
7. The total time of test, interval time of dust blowing and period of dust blowing can be controlled
8.The test tank and control cabinet are integrated, the lower part is equipped with casters, other systems
are hidden, beautiful and generous
Equipment operating environment:
1. Temperature:15℃~35℃
2. Relative humidity:∠85%RH
3. There is no strong vibration and no strong electromagnetic field around
4. No high concentration of dust and corrosive substances around
5. No direct sunlight or other direct heat radiation
6. There is no strong airflow around. When the surrounding air needs to be forced, the airflow should
not blow directly on the box
7. The test chamber shall be placed smoothly and level
8. The installation site is well ventilated
9. Good grounding
