Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: GB15085-1994,QC/T44-2009,QC/T44-1997,GB 15085-94 ,GB 11556,
Model Number: YYE061
Payment & Shipping Terms:
Packaging Details: Plywood box
Delivery Time: 8-10 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5 sets/month
Contact Now
Detailed Product Description
Durability Test Frequency Range:: 1~9999999 Times Force Sensor Measurement Range:: 0 ~ 20N
Pressure Sensor Measurement Range:: 0 ~ 400KPa Measurement Range Of Flow Sensor:: 0 ~ 3L/min
Angle Sensor Measuring Range:: 0-180 ° Voltage Adjustment Range:: 5~30V, Computer Program Control;
Current Sensor Measurement Range:: 0~30A Test Frequency:: 0 ~ 200 Times/min
High Light:

thermal shock test chamber

,

salt spray test chamber

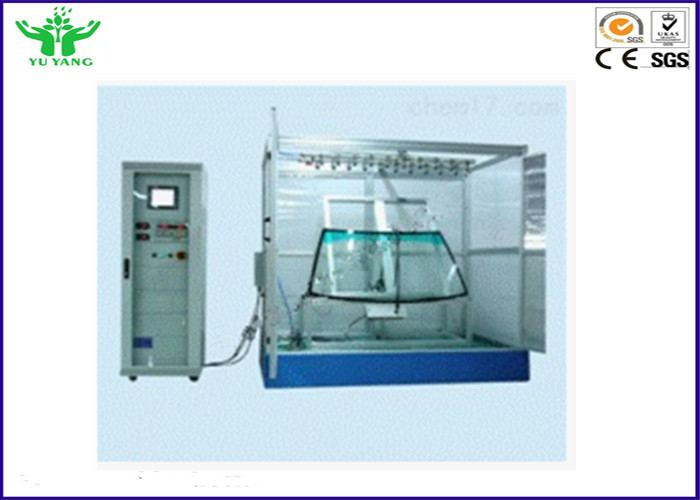

Car Accessories Universal Windshield Windscreen Wiping Test Equipment / Wiper Blade Test Machine

Application:

It is sued for testing the performance and durability of audtormobile wiper and assembly. The test bench can test wiper's wier area, wiper frequency,automatic return, wiper rod's compression force, braking force,wiper effect,system strength and durability. It can simulate ice and snow working condition and durability test.



Standard:

GB15085-1994,QC/T44-2009,QC/T44-1997,GB 15085-94 GB 11556



Parameter:



Durability test frequency rang 1-9999999 times
Force sensor measurement rang 0-20N
Pressure rang of flow sensor 0-3L/min
Angle sensor measuring rang 180°
Voltage adjustment rang 5-30V, computer program control
Current sensor measurrement rang 0-30A
Test frequency 0-200times/min







Testing principles and methods:

Test environment temperature 10 ~ 40 ° c;The windscreen stays wet;Test water should be kept clean and free from any impurities.

Hardness is not higher than 205 g / 1000 kg, the water temperature is not higher than 38 ℃.

When the nominal voltage is 12V, the test electrical pressure is 13.5V±0.3V.When the nominal voltage is 24V, the test voltage is 27V ±0.6v.

The outside surface of the windscreen should be kept clean and free from oil and dirt
