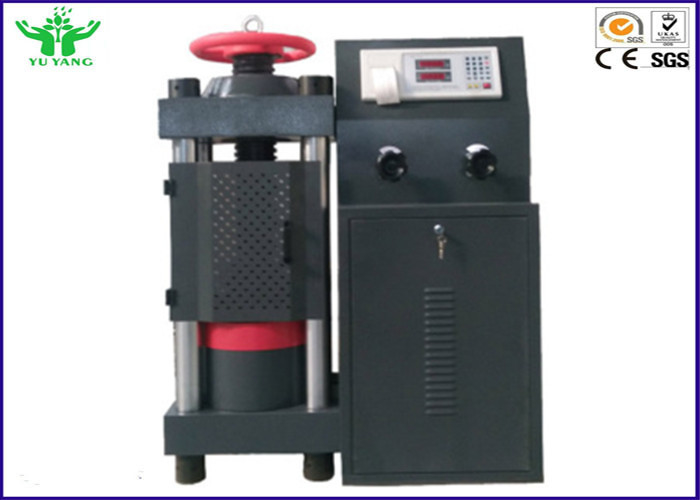

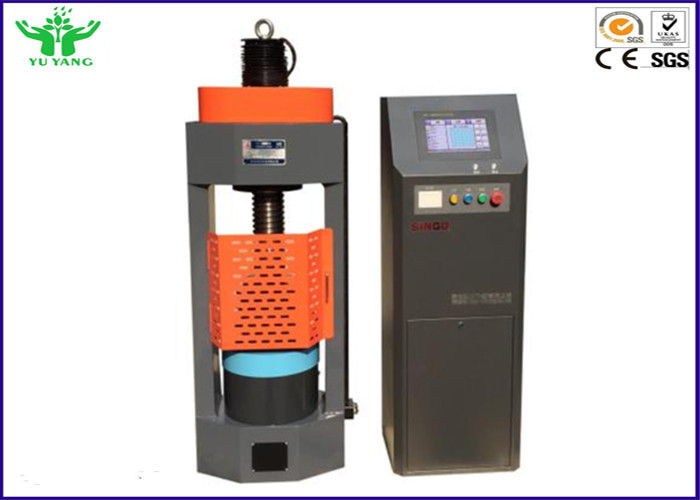

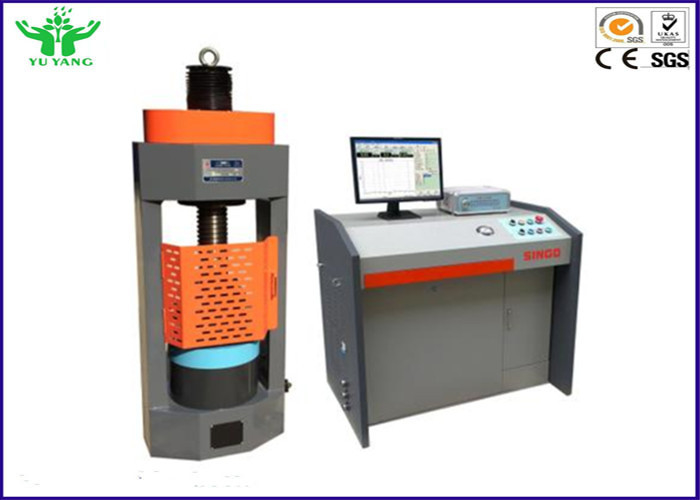

2000KN~5000KN Digital Concrete Compression Testing Machine / Concrete Pressure Tester 4%-100%FS

2000KN~5000KN Digital Concrete Compression Testing Machine / Concrete Pressure Tester 4%-100%FS

  • 2000KN~5000KN Digital Concrete Compression Testing Machine / Concrete Pressure Tester 4%-100%FS
  • 2000KN~5000KN Digital Concrete Compression Testing Machine / Concrete Pressure Tester 4%-100%FS
  • 2000KN~5000KN Digital Concrete Compression Testing Machine / Concrete Pressure Tester 4%-100%FS
  • 2000KN~5000KN Digital Concrete Compression Testing Machine / Concrete Pressure Tester 4%-100%FS
2000KN~5000KN Digital Concrete Compression Testing Machine / Concrete Pressure Tester 4%-100%FS
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: CE ISO BS.ASTM
Model Number: YYE063
Payment & Shipping Terms:
Packaging Details: Plywood box
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Max Load: 5000kn Test Force Measuring Range: 4%-100%FS
Test Value Accuracy: Better Than ±1% Accuracy Class: 1 Class
Test Space Adjusting Way: Electric Ball Screw Adjusting Test Force Accuracy: <±1%
High Light:

thermal shock test chamber

,

salt spray test chamber

Digital concrete compression testing machine/Concrete pressure tester

Application:
It is suitable for the compressive strength test of building materials such as concrete, cement, airbrick, fire proofing tile, engineering ceramics and building stone, equip safety door.

Standard:
ASTM D2664, D2938, D3148, D540

Parameter:


Capacity 2000kN 2000kN 3000kN
Effective measuring range 4%-100%FS
Test force accuracy ≤±1% ≤±1% <±1%
Way of ajust screw Manual Manual Electric
Size of compression plates φ225mm
φ300mm
260×300mm 370×370mm
Max space of the upper and lower plate 320mm 320mm 330mm
Max stroke 30mm 30mm 50mm
Pistons diameter φ250mm φ250mm φ310mm
Pump pressure 40MPa 40MPa 40MPa
Motor power Three-phase 0.75kW Three-phase 0.75kW Three-phase
1.1kW
Host Dimensions
(L × W × H)
800×500×1200mm 800×500×1200mm 1000×600×1500mm
Weight 750Kg 750Kg 1800Kg


Force measuring system
1. Manually adjust the return valve, the operation is simple and flexible;
2. Has the maximum load peak hold function(When the test force exceeds 3% of the maximum test force, the overload protection and the pump motor stop.);
3. With load rate dynamic display function;
4 Randomized test report with test date, number, damage load, compressive strength, etc.
2000KN~5000KN Digital Concrete Compression Testing Machine / Concrete Pressure Tester 4%-100%FS 02000KN~5000KN Digital Concrete Compression Testing Machine / Concrete Pressure Tester 4%-100%FS 12000KN~5000KN Digital Concrete Compression Testing Machine / Concrete Pressure Tester 4%-100%FS 2
