Place of Origin:
China
Brand Name:
YUYANG
Certification:
GB/T, ISO, BS, AATCC
Model Number:
YY058

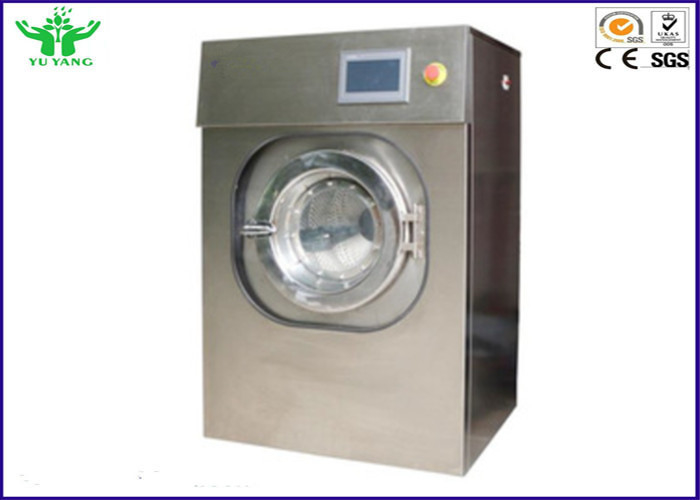

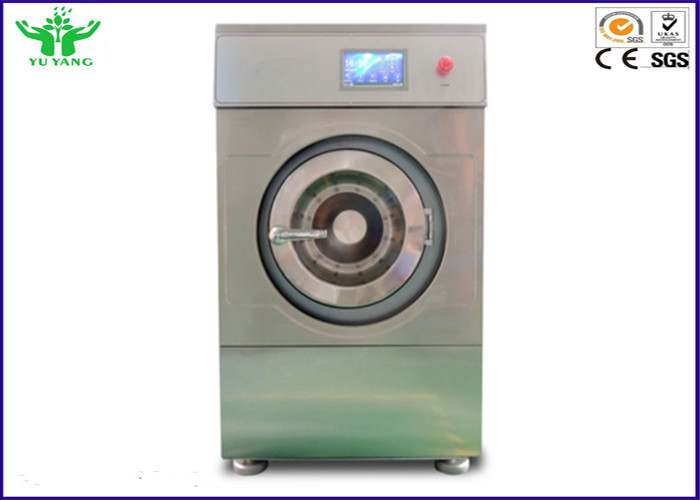

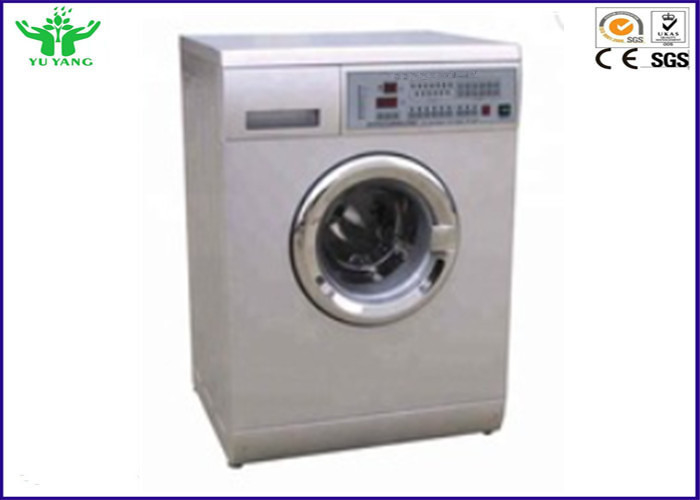

Digital Textile Fabric Shrinkage Test Machine /Wascator Textile Shrinkage Tester
Description:
Fabric Garment Washing Shrinkage Test Machine. Accelerated washing apparatus for knitted and woven fabrics to assess shrinkage in accordance with international test methods. Also used for assessing fabric stability, color fastness, finish durability, spirality and pilling to washing.
Technical parameters:
| Type |
A Model washing machine;Load from the front door with a flat roller |
| Interior rowing box diameter | (51.5±0.5)cm |
| Interior rowing box depth | (33.5±0.5)cm |
| Inside and outside cylinder radial distance | (2.8±0.1)cm |
| Raised wing number | 3 (The distance of between 2 piece 120°) |
| Raised wing height | (5±0.5)cm |
| Rowing speed |
Washing52r/min,Dehydrating(500±20)r/min; Digital setting and stepless speed variation 40-700r/min |
| Water Level Control | low level10cm high level13cm |
| Temperature Detection | interior temp.--99℃±1℃, Distinguishability0.1℃ |
| Heating power | 5.4±2%KW |
| Rated loading capacity | 5kg |
| External dimension | 810*720*1300mm(L*W*H) |
| weight | 260Kg |
| power source | AC220V 50Hz 6.5KW |
Standard:
GB/T8629 ,GB/T8630, ISO6330/5077, FZ/T70009 Bs4923, EN25077/26330 , JIS 1909 M&S IWS, AATCC 88B+C, 124, 130, 135, 142, 143, 150, 172, 179
Feature
1. the technical specifications of the instrument meet the requirements of the ISO6330-2012 standard.
2. Instrument uses full independent suspension rolling technology, high shock resistance, ultra quiet operation, without foot fixing.
3. Use high performance stepless speed change motor, high speed dewatering coefficient, digital setting
4. The color touch screen is displayed in English and the operation is convenient.
5. Using 32 bit cortex-M3 microprocessor, the data processing speed is fast, the instrument is responsive and the operation is stable and reliable.
6. The high precision electronic pressure sensor is used to ensure the accuracy and reliability of the water level.
7. The temperature control adopts the optimized PID algorithm, the heating speed is fast and the control fluctuation is small.
8. Built-in 10 sets of GB/T8629 programs, 13 sets of ISO6330 programs; 3 sets of custom programs,1 set of manual single program.
9. The use of stainless steel metal handle and high pressure glass window to ensure that the opening door is more durable.
