| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | YD/T 2344.1—2011 ,GB/T 2423.5,GB/T 2423.6 ,IEC 68-2-29 ,JJG497-2000 |
| Model Number: | YYE066 |
| Packaging Details: | Standard Export Wooden Case |
|---|---|
| Delivery Time: | 8-10 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets/month |
| Pulse Wave: | Half Sinusoidal Wave | Shock Impact Peak Acceleration: | Half Sinusoidal Wave:150~20000m/s2 |
|---|---|---|---|
| Pulse Duration Time: | Half Sinusoidal Wave: 0.6~20ms | Max. Impact Frequency: | 80 Times/min |
| Max. Drop Height: | 1500mm | Protection Device: | Door Protection, Over-load Protection, Zero Signal Protection |
| Power: | AC 220V(±10%), 1 Ph 3 Lines ,50/60HZ; AC 380 V(±10%) ,3 Ph 5 Lines,50/60HZ | Environmental Conditions: | Temperature: 25degree C ±5.0degree C Humidity: <85%(25degree C) |
| High Light: | thermal shock test chamber,salt spray test chamber |
||

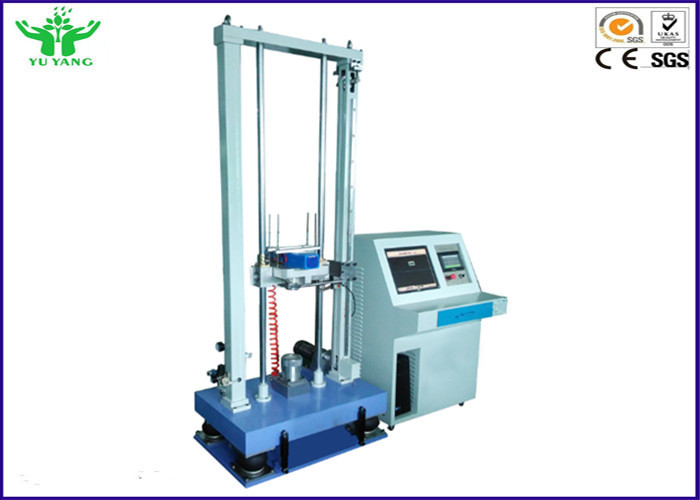

Mechanical Shock Impact Tester Equipment for Material Testing
80 times/min Mechanical Shock Impact Tester Equipment for Material Testing 1500mm
Application
Mechanical acceleration shock impact tester is designed for measuring and ensure shock performance of products and packages. It can do normal shock test with half sine wave, square wave, sawtooth wave etc., simulate products under real environment shock conditions, thus improve and perfect products package structure.
Features:
1) Convenient touch screen operation.
2) Complete safety protection systems.
3) Utilize pneumohydraulic booster and braking systems to prevent multiple impact.
4) With air spring shock absorber and hydraulic shock damping mechanism,there will be no influence of impact on the surrounding and no foundation requirement.
Mechanical Shock Impact Tester parameters:
| Model | YYE066-50 | YYE066-100 | YYE066-200 | YYE066-500 | YYE066-800 | |
| Load capacity (kg) | 50 | 100 | 200 | 500 | 800 | |
| pulse acceleration( m/s2) | 50~1200 | 50~1000 | 50~1000 | 50~500 | 50~500 | |
| Pulse Width (ms) | 20~3 | 20~3 | 20~3 | 20~3 | 20~3 | |
| Frequency (times /min) | 10~80 | 10~80 | 10~80 | 10~80 | 10~80 | |
| Table Size (mm) | 500X700 | 700X700 | 700X700 | 800X800 | 1000x1000 | |
| Max. Dropped Height (mm) | 60 | 60 | 60 | 60 | 60 | |
| Pulse Type | Half Sine wave, (trapezoidal wave, and the sawtooth wave, square wave optional) | |||||
| External Dimension WXHXD (mm) |
800X1300X 1000 |
800X1300X 1000 |
850X1350X 1100 |
1000X1300X 1900 |
1000X1300X 1900 |
|
| Weight (Kg) | 1100 | 1250 | 2000 | 3000 | 3500 | |
| Protection Device | Door protection, over-load protection, zero signal protection | |||||
| Power | AC 220V(±10%), 1∮3 Lines ,50/60HZ; AC 380 V(±10%) ,3∮ 5 Lines,50/60HZ |
|||||
Environmental Conditions |
Temperature: 25ºC±5.0ºC humidity: <85%(25ºC) | |||||
1.YD/T 2344.1—2011 LiFePO4battery system for telecommunications. Part 1:Integrated battery system
2.GB/T 2423.5 Environmental testing for electric and electronic products. Part 2: Test methods. Test Ea and guidance: Shock
3.GB/T 2423.6 Environmental testing for electric and electronic products. Part 2: Test methods. Test Eb and guidance: Bump
4.IEC 68-2-29 Test Eb and guidance: Bump
5.JJG497-2000 Verification Regulation of Bump Testing Machines
