DONGGUAN YUYANG INSTRUMENT CO.,LTD
China Good Quality Manufacturer of Testing Equipment
|Place of Origin:||China|
|Minimum Order Quantity:||1|
|Packaging Details:||Packed in wooden cases|
|Delivery Time:||5-8 days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Max Temp.:||1800℃||Temp. Rising Time (Empty/min):||Temp. Rising Time (Empty/min)|
|Power Supply::||110/220V±10%, 50/60Hz||Capacity(L)::||2-6L|
thermal shock test chamber,
salt spray test chamber

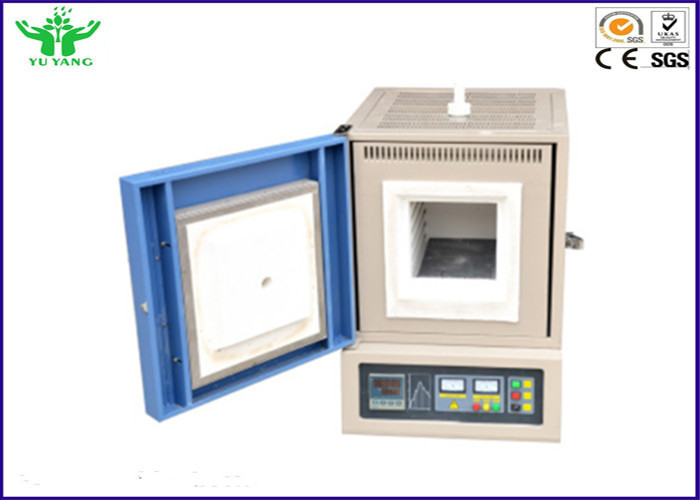

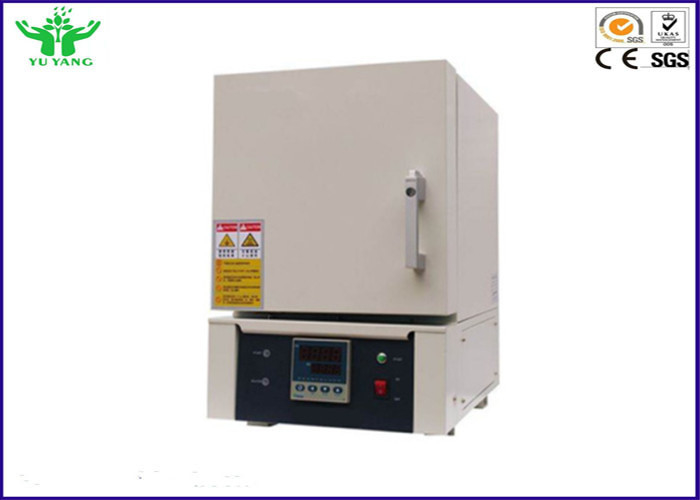

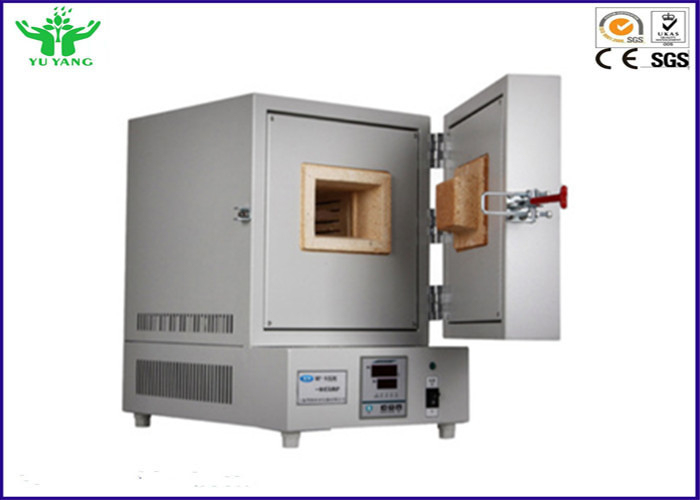

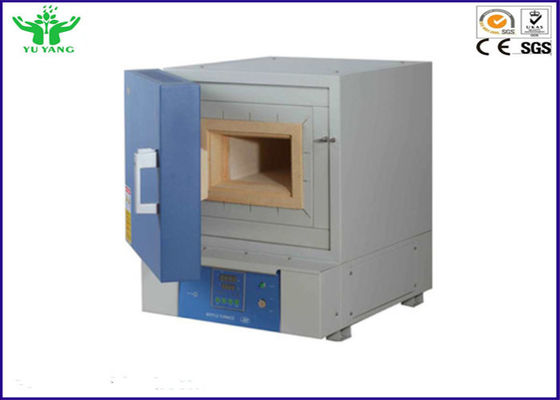

High Temperature Muffle Furnace
The equipment is suitable for all kinds of small parts, springs, molds for less oxidation, no decarburization heat treatment.It is also suitable for powder roasting, ceramic sintering, high temperature experiment, chemical analysis, material processing, quality testing and other metal parts heat treatment.
1. Chamber material adopts imported high purity alumina ceramic fiber,which has the advantage of no powder drops off with high temperature , small heating capacity and saving energy more than 50%.
2. Heating element uses high quality Sic Rod and it can bear heavy load. Also it is stable and for long time using
3. Fast heating speed ,0-30ºC/min and it also can be set freely
4. High precision of temperature control has the temperature compensation and correction function with precision ±1ºC
5. The imported temperature control instrument with the programmable function can set heating curve and programme 2 groups 8 segments.
6. Integrative structure can reduce the using space .Also it has excellent appearance design
7. Electronic parts and components all adopt DELIXI brand with earth leakage function and it is safe and reliable.
8. The product will send out alerting signal when it is in the over-temperature working process and it can completely realize the protective action automatically.
9. When the programs are set and just press the starting button, the following steps will proceed automatically.
10. Large screen paperless recorder is optional and it not only can realize the real time record of the heating curve, but also can analysis and print experimental data with memory card .
11. Optional installation of gas inlet pipe is available and it can inlet inert gas for purging and protecting . Also it can install exhaust chimney, connecting with stainless steel bellows to make the high temperature volatile and harmful gases flow to the specified place.
|Continuous operating max. temperature||1350ºC|
|Heat-up rate||10-30ºC/min, it will take 15-30minutes to rise from room temperature to 1000ºC|
capacity: 36 Liters
|Temperature control||PID automatic control|
|AC 380V Three Phase,50/60 Hz|
|Heating element||High Quality SiC rod|
|high temperature gloves 1 pair, crucible tong 1pc, Al2O3 sample block 1pc,power line 1 pc|
|Warranty||One year limited warranty (Consumable parts such as heating elements are not covered by the warranty.)|
Contact Person: Yannis Ye
