Place of Origin:
CHINA
Brand Name:
YUYANG
Certification:
ISO5470
Model Number:
YYE005
PLC Control Martindale Abrasion and Pilling Textile Testing Equipment with PLC control

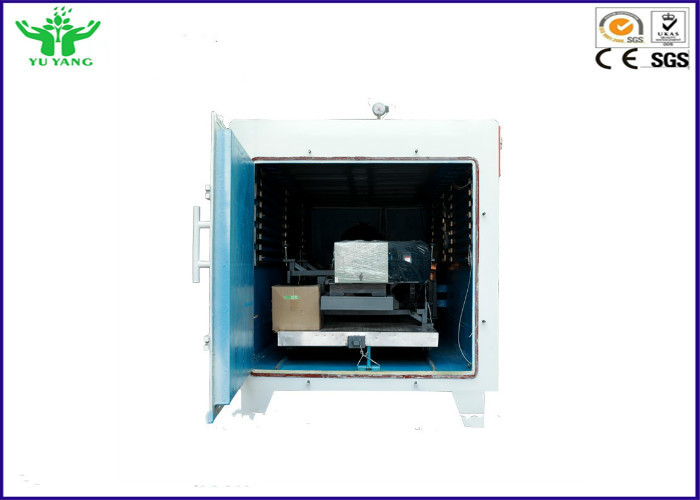

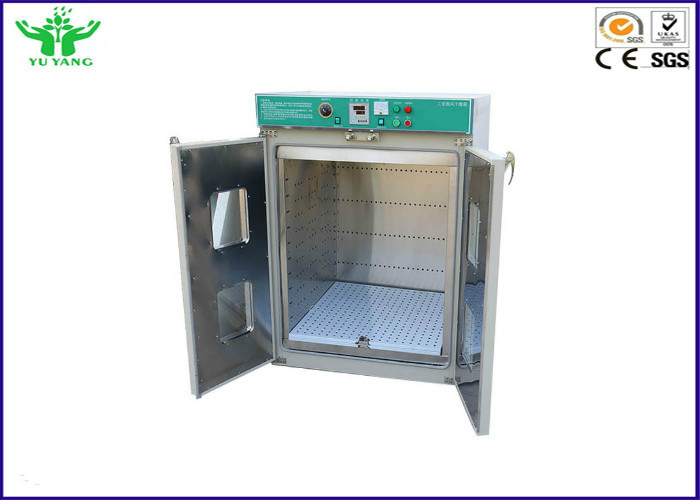

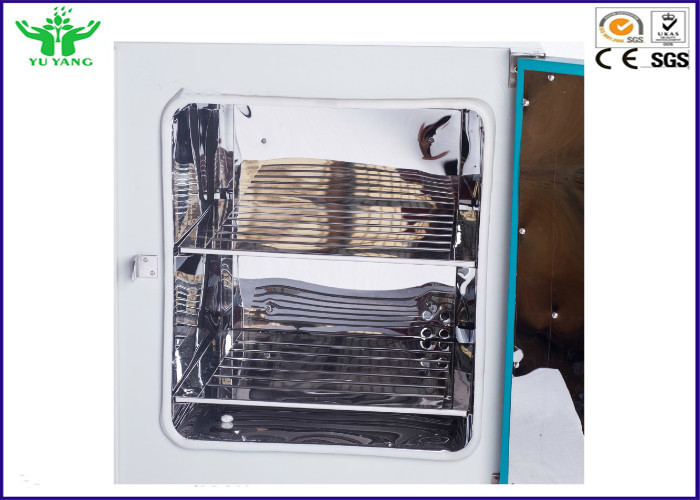

RT+10-200℃ 1.0 KW Laboratory High Temperature Vacuum Drying Oven With Touch Screen Control
Product Description:
1. Professional Manufacturer
2. Material:SUS#304
3. Customized Size
4, LCD touch screen
Electric Oven is mainly used in biochemical,chemical and pharmaceutical, health care,agricultural research,environmental protection and other research applications of drying, baking, dewaxing, sterilizing, preheat variours materials, heat treatment, preservation and so on. It als can be used for ordinary constant temperature test. This drying oven is electrothermal blowing dry chamber/box, it reaches temperature regularity index depending on air enforcement convection.
Application:
Climatic chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of
electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials,
medical and aerospace industries.
Technical parameters:
| Humidity Range | 30%R.H.(Humidity according to customer's requirement) |
| Analytic Accuracy/ Distribution uniformity of temperature and humidity | 0.1ºC; 0.1% R.H/±2.0ºC; ±3.0% R.H. |
| Control Accuracy of Temperature and Humidity | ±0.5ºC; ±2.5% R.H. |
| Temperature Rising/ falling Speed Rate | Temperature rising approx. 0.1~3.0ºC/min / temperature falling approx. 0.1~1.5ºC/min; ( The Falling Speed Rate Min.1.5ºCper minute is a special optional condition) |
| Temperature /humidity | -40 degree, 20%~98%R.H. |
| Material | Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or SEE cold-rolled steel with paint coated, Insulation material is resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials |
| Cooling System | Wind cooling or water cooling/single segment compressor(-40ºC, double segment compressor -70ºC) |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
| Optional Accessories | Inner door with operation hole , Recorder, Water Purifier, Dehumidifier |
| Compressor | French Tecumseh Brand,Germany Bizer Brand |
| Power | AC220V 1ph 3 lines, 50/60HZ , AC380V 3ph 5 lines , 50/60HZ |
| Approx. Weight (Kg) | 250 |
