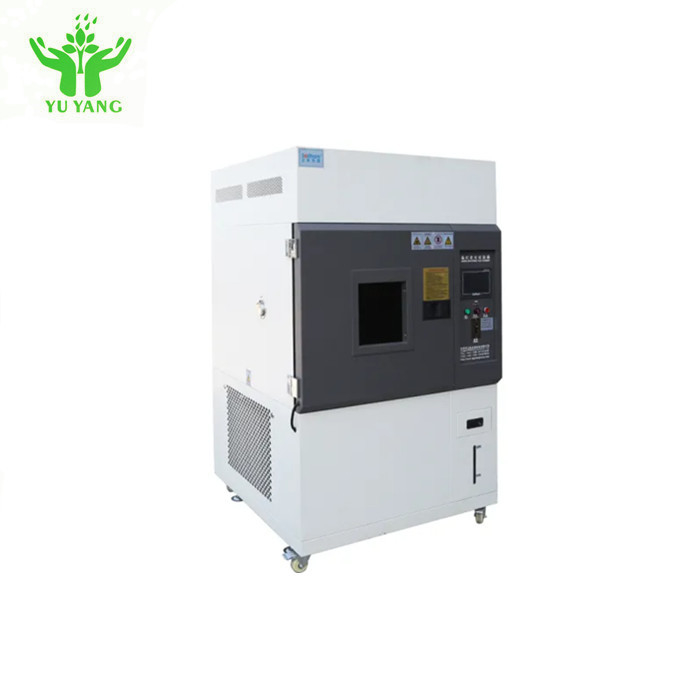

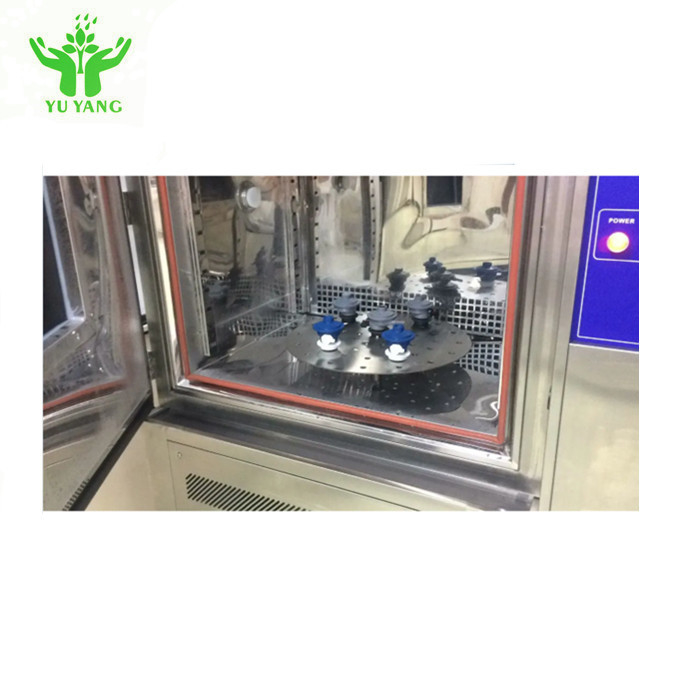

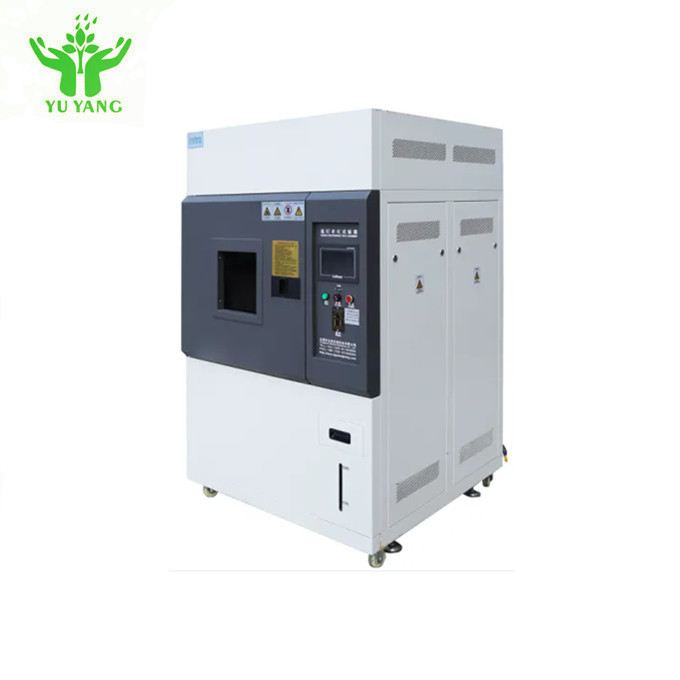

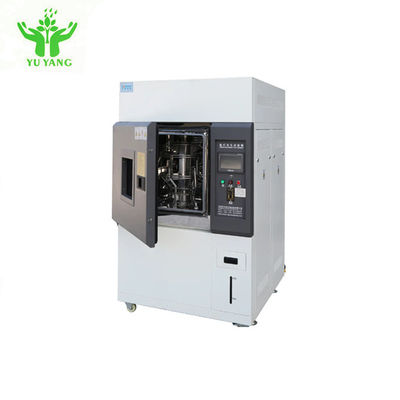

PID Adjustment 0.15kpa Environmental Test Chamber

PID Adjustment 0.15kpa Environmental Test Chamber

  • PID Adjustment 0.15kpa Environmental Test Chamber
  • PID Adjustment 0.15kpa Environmental Test Chamber
  • PID Adjustment 0.15kpa Environmental Test Chamber
  • PID Adjustment 0.15kpa Environmental Test Chamber
PID Adjustment 0.15kpa Environmental Test Chamber
Product Details:
Place of Origin: CHINA
Brand Name: YUYANG
Certification: ISO5470
Model Number: YY833
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden Box
Delivery Time: 1-3 WORK DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 SETS A MONTH
Contact Now
Detailed Product Description
Blackboard Temperature Range: Room Temperature 30 ℃ ~ + 80 ℃ Shell Material: Stainless Steel 304 / Coating
Light Source:: 1.8 KW Net Weight:: 110 Kg
Overall Dimensions: 925 * 487 * 487 Mm Power: AC 220V/50HZ
High Light:

thermal shock test chamber

,

salt spray test chamber

PLC Control Martindale Abrasion and Pilling Textile Testing Equipment with PLC control

ISO5470 0ºC~80ºC Sunlight Environmental Simulation Xenon Lamp Testing Equipment Chamber



General description:

This equipment simulates the solar radiation on the ground and is widely used to determine the adaptability of electrical and electronic products to the solar radiation environment and related temperature and humidity environment (especially the change of the electrical and mechanical properties of the products), and also can be used to check the resistance of samples to certain corrosion.


Standard

GB/T 4797-2006(IEC 60721-2-4:2002) methods of test for solar radiation and temperature

GB/T 3511-2008(ISO 4665:1998) Weather resistance of vulcanized rubber or thermoplastic rubber

GB/T 12831-1991 xenon lamp ageing test method

GB/T 1865-2009(ISO 11341:2004 test method for xenon arc irradiation

GB/T 2423.2-2008(IEC 60068-2-2:2007) high-temperature test method

GB/T 2423.4-2008(IEC 6008-2-30:2005) alternating damp-heat method

GB/T 5170.18-2005 temperature/humidity combined recirculation equipment

GB/T 10586-2006 moisture and heat test chamber technical conditions

GJB 150.7A-2009 wet heat test method

GJB 150.3A-2009 high-temperature test method

Structural characteristics

Imported intelligent temperature and humidity controller for temperature control, with PID adjustment, fast self-tuning, can set a variety of parameters, temperature direct digital display, reading is very convenient.



Specification parameter list: xenon weathering test machine





1. Working room size (mm): (700 × 700 × 700 (width × depth × height))
2. Temperature range: 10 ºC ~ 80 ºC
3.Rrelative humidity range: 50% ~ 98% R.H
4. Black panel temperature: 63 ºC, 100 ºC (deviation ±3 ºC)
5. Temperature fluctuation: ≤ ± 0.5 ºC
6. Temperature evenness: ≤ ± 2.0 ºC
7. Humidity fluctuation: + 2% ~ -3% R.H
8. Glass windows filter: borosilicate glass
9. Xenon light source: imported air-cooled xenon arc light source
10. Xenon lamp power: 1.8KW, 2pcs means: 1.8KW × 2 = 3.6 KW
11. The total number of lamps: 2
12. Rainfall time: 1 to 9,999 minutes.
13. The rainfall cycle: 1 to 240 minutes.
14. Spray nozzle aperture: Ф0.8mm (backwater with precision filter to prevent nozzle clogging)
15. Rain water pressure: 0.12 ~ 0.15kpa
16. Water cycle (water time / non-water time): 18min / 102min or 12min / 48min (water time / non-water time) water pressure 0.12 ~ 0.15Mpa
17. Heating power: 3.5KW
18. Humidification power: 2KW, sample tray size: 600 × 500mm
19. Light cycle continuously adjustable time: 1 to 999 hours
20.Spectral wavelength: 290nm ~ 800nm, continuously adjustable illumination period, the cumulative amount of radiation: 14,000 ~ 67,000 KJ/m.
21. Environment temperature: 5 ºC ~ 35 ºC
22. Environment Humidity: 85%R.H











PID Adjustment 0.15kpa Environmental Test Chamber 0
