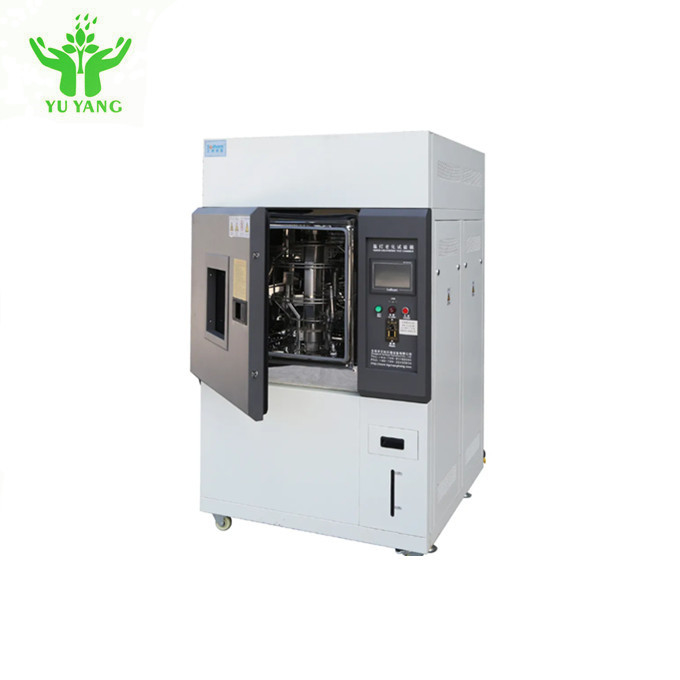

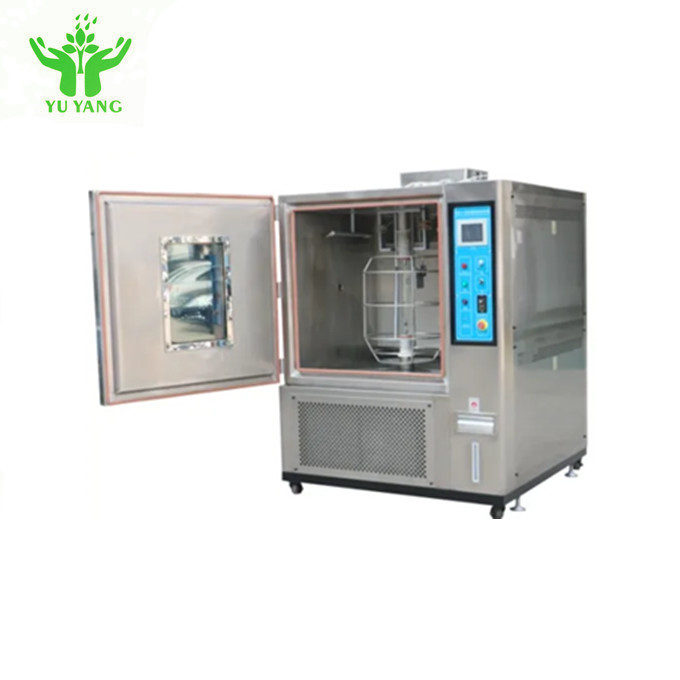

Xenon Arc Light Fastness Tester / Xenon Lamp Aging Test Chamber
ISO5470 0ºC~80ºC Xenon Arc Light Fastness Tester / Xenon Lamp Aging Test Chamber
This equipment simulates the solar radiation on the ground and is widely used to determine the adaptability of electrical and electronic products to the solar radiation environment and related temperature and humidity environment (especially the change of the electrical and mechanical properties of the products), and also can be used to check the resistance of samples to certain corrosion.
1. The inner tank is made of stainless steel, and the outer shell is coated with cold-rolled sheet electrostatic spraying. Imported intelligent temperature controller is adopted.
2. Small programmable controller, each system has protection function.
3. Nominal wire diameter of metal screen: 50 μm
4. Nominal spacing between lines: 75 μm
5. Talc dosage: 2kg/m3~4kg/m3
6. Dust proof test for electrician, electronics, automobile, motorcycle and other products and parts.
1. GB4208-2008/IEC 60529:2001
2. GB2423.37-2006/IEC 60068-2-68-1994
4. GB 7000-1-2007
|Dimensions of the working chamber(W*D*H)(cm)
||1.The blackboard (radiation temperature) 40 ~ 110 ºC condensation temperature range: RT ~ 100 ºC; 2. Humidity range :85%~98%(3%R.H); (optional dehumidification with compressor, humidity range: 20~98%R.H)
|main technical parameters
Xenon arc lamp power: 2KW air cooling: suitable for cz-280xd type;2.5kw air cooling: suitable for cz-800xd;6kw water cooling: suitable for cz-1200xd type
1. Total radiation intensity :1150 10%w/m2;2, sample frame speed: 0.75 ~ 1.25 r/min (adjustable), 360 ° rotating rack, the turntable is divided into 3 layers, each layer of the sample size of 210 mm, each layer within the rack installation test sample size for: 210 mm x 70 mm;3. Rainfall time: adjustable from 0 to 99 minutes;4. Light source: air-cooled xenon arc lamp;5. Xenon lamp power: 2kw, 2.5kw, 6kw;6, control system: professional version of temperature and humidity irradiance xenon lamp controller;7, equipment features: with light, rain, temperature, humidity and other climatic conditions;8, radiation
|Structure and material
||1. Inner box material :SUS 304# stainless steel; 2. Material of outer box: cold rolled steel plate appearance baking paint treatment or SUS304# stainless steel (optional); 3. Heater: nickelloy scale heating tube.
|Supply air circulation
||1. Special motor; 2. Multi-wing centrifugal special wind wheel; 3 circulation mode: air circulation
|1. Humidification: electrically heated steam humidification; 2. Heating mode: SSR solid state relay non-contact heating; 3. Water supply mode: pump water supply; 4. Humidity sensor: Pt100; 5. Temperature sensor: Pt100; 6. Water level control: imported from Taiwan; 7. Water level gauge: transparent quartz glass water level gauge; 8. Water tank: 20L built-in fixed water tank.
||1. Over-temperature protection; 2. Under inverse phase protection; 3. Water shortage protection; 4. Overload protection; 5. Leakage protection; 6, the over pressure
||Can be customized according to the size of the product shape non - standard models
||AC380V 50HZ/60HZ 3phase
