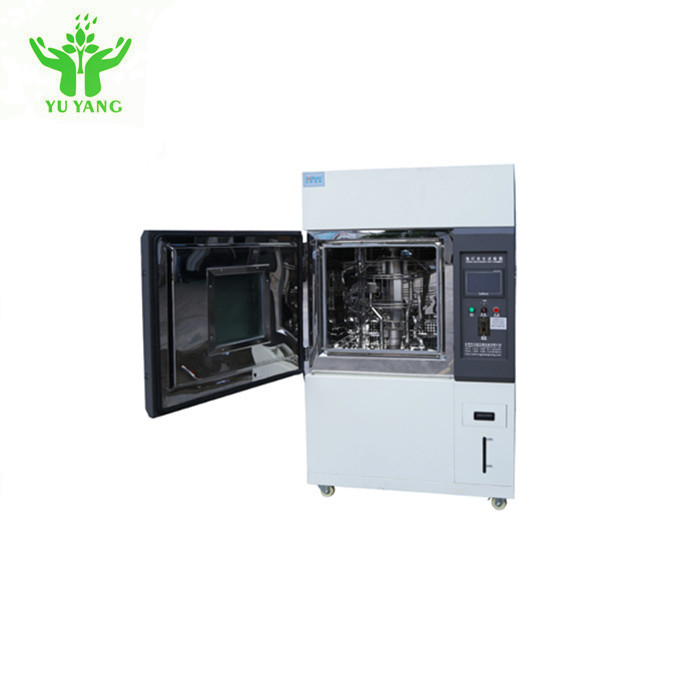

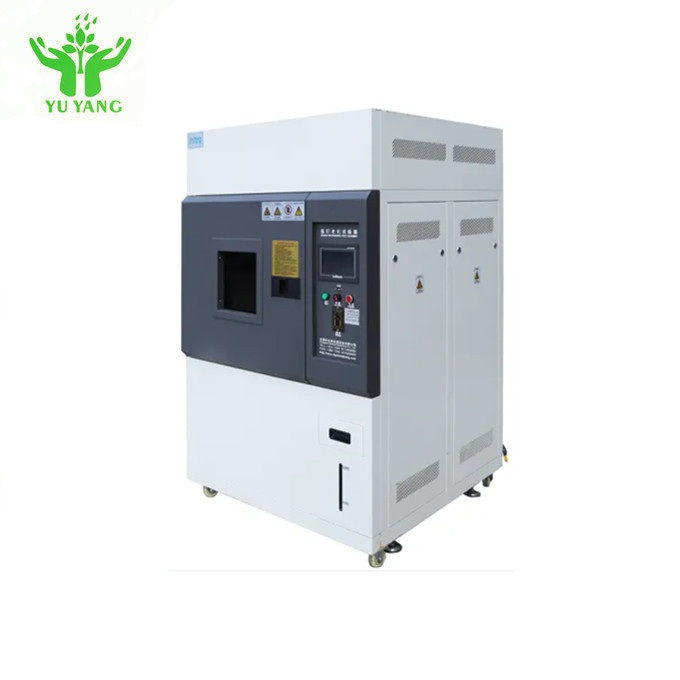

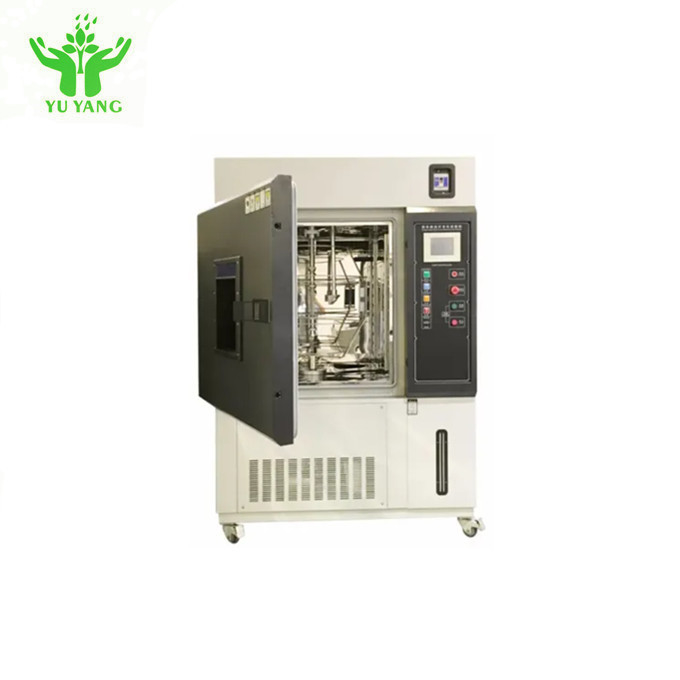

80ºC Xenon Lamp ISO 5470 Aging Test Chamber

80ºC Xenon Lamp ISO 5470 Aging Test Chamber

  • 80ºC  Xenon Lamp ISO 5470 Aging Test Chamber
  • 80ºC  Xenon Lamp ISO 5470 Aging Test Chamber
  • 80ºC  Xenon Lamp ISO 5470 Aging Test Chamber
  • 80ºC  Xenon Lamp ISO 5470 Aging Test Chamber
80ºC  Xenon Lamp ISO 5470 Aging Test Chamber
Product Details:
Place of Origin: CHINA
Brand Name: YUYANG
Certification: ISO5470
Model Number: YY833
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden Box
Delivery Time: 1-3 WORK DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 SETS A MONTH
Contact Now
Detailed Product Description
Blackboard Temperature Range: Room Temperature 30 ℃ ~ + 80 ℃ Shell Material: Stainless Steel 304 / Coating
Light Source:: 1.8 KW Net Weight:: 110 Kg
Overall Dimensions: 925 * 487 * 487 Mm Power: AC 220V/50HZ
High Light:

thermal shock test chamber

,

salt spray test chamber

Stability Rubber Xenon Lamp Light / Xenon Lamp Aging Test Chamber

General description:

1) Xenon Tester is to test the product undergone illumination / rain condensation / temperature / humidity / any other climatic changes.
2) Xenon Tester mainly for the test of non-ferrous/ organic /rubber plastic and building materials. It can provide data for user to evaluate the products' properties and performance in order to improve the product qualities.


Characteristics:

1. The inner tank is made of stainless steel, and the outer shell is coated with cold-rolled sheet electrostatic spraying. Imported intelligent temperature controller is adopted.

2. Small programmable controller, each system has protection function.

3. Nominal wire diameter of metal screen: 50 μm

4. Nominal spacing between lines: 75 μm

5. Talc dosage: 2kg/m3~4kg/m3

6. Dust proof test for electrician, electronics, automobile, motorcycle and other products and parts.


Standard

1. GB4208-2008/IEC 60529:2001

2. GB2423.37-2006/IEC 60068-2-68-1994

3. GJB150.12-2009

4. GB 7000-1-2007

5. GB10485



Spectification



Model

HY-XD

-80

HY-XD

-150

HY-XD

-225

HY-XD

-408

HY-XD

-800

HY- XD

-1000

Inner size: WHD(cm)

40*50

*40

50*60

*50

60*75

*50

60*85

*80

100*100

*80

100*100

*100

External size: WHD(cm)

105*185

*115

105*185

*115

115*195

*115

135*210

*120

155*230

*145

155*230

*165

Temperature and humidity uniformity ± 2°C; ± 3%RH
Temperature range 0ºC~80ºC, adjustable
Humidity range 30%~98%R.H
Rainfall time 1~9999min, adjustable
Rainfall cycle 1~240min,interval is adjustable
Wavelength 290nm~800nm
Xenon lamp light Xenon long-arc lamp, 1.8KW±10%, 290-800nm, 1200W/m2
Xenon lamp light quantity 1PCS 1 PCS 1 PCS 2 PCS 3 PCS 3 PCS
Box material Stainless Steel SUS304#
Control and cooling system Korea TEMI programmable controller
Power (w) 4500 5500 6000 11800 13500 14000
weight (kg) 230 230 300 450 550 680



80ºC  Xenon Lamp ISO 5470 Aging Test Chamber 0
