Place of Origin:
China
Brand Name:
YUYANG
Model Number:
YY058
High Precision Food Weighing Machine Automatic Weight Checker
Description:
By the type of intelligent weighing scale is a kind of high speed, high precision of online inspection equipment, with a variety of packaging production line and conveying system integration, can real-time detect pipeline overweight, owe the unqualified products, can be widely used in pharmaceutical, foodstuff and chemical industry production line automatic inspection, whether the lack of parts inside the packaging or instruction, etc., after excluding device can automatically weed out bad product.
Feature:
1. Large LCD touch screen display, English and Chinese interface, suitable for domestic and foreign customers.
2. High precision sensor, high detection accuracy and fast detection speed.
3. The graph shows the statistical distribution of sorting results to grasp the sorting dynamics in real time.
4. 100 product sorting parameters can be preset, and different products can be switched quickly.
5. High speed and high precision digital filtering algorithm, data filtering parameters, automatic learning.
7. Dynamic zero tracking, including zero tracking during continuous operation of the equipment, can automatically correct the weight value.
8, frequency conversion motor drive, effectively improve the operation stability of the equipment.
9. Preset data transmission interface. Product sorting parameters can be set or exported via USB.
10. The photoelectric retriggering mode is adopted to effectively improve the accuracy of the equipment.
11. Multiple culling methods are optional. Overweight or underweight products can be eliminated.
Parameter:
weight |
200g |
2000g | 5000g | 20000g | ||
man-machine interface | 10.1-inch color TFT touch screen | |||||
Manipulation language | English | |||||
Size | L1400mm* W685mm * H1335mm | L1700mm* W785mm * H1335mm | L2060mm* W800mm * H1360mm | |||
Detection size |
Length (mm):1~200 width(mm):1~140 height(mm):1~150
|
Length (mm):5~300 width(mm):5~220 height(mm):5~150 |
Length (mm):10~400 width(mm):1~300 height(mm):10~150 |
Length (mm):10~500 width(mm):1~400 height(mm):10~300
|
||
Weighing section size(L*W) |
400mm*150mm |
400mm*220mm |
500mm*300mm |
600mm*400
|
||
Height of belt surface from the ground : | 680mm ~ 750mm (height can be customized) | |||||
Minimum scale |
0.1g |
|||||
Sorting accuracy |
±0.1g~± 0.2g |
± 0.2g~±1g |
± 1g~±5g |
± 5g~±10g |
||
Weighing scale |
2~200g |
5~1000g |
10~5000g |
20~20000g |
||
Weed out way | Pneumatic blowing type, swinging arm type, flat push rod type, lifting type (optional) | Pneumatic swing arm type, flat push rod type | Pneumatic flat push-rod type | |||
Material and surface treatment | 304 stainless steel, surface polished | |||||
Input voltage/power | Single-phase AC220V 50Hz / 150w | Single-phase AC220V50Hz / 200 w | Single-phase AC220V50Hz / 400 w | Single-phase AC220V50Hz / 500 w |

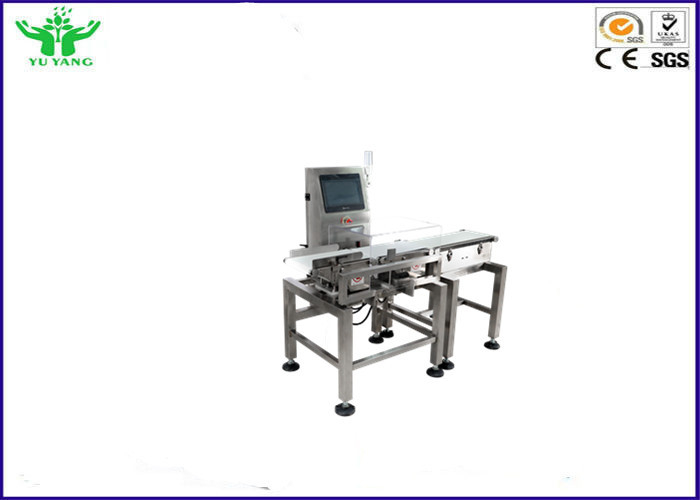

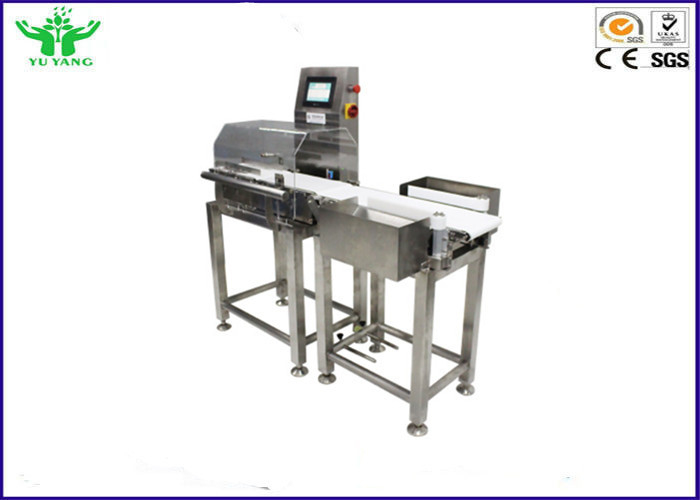

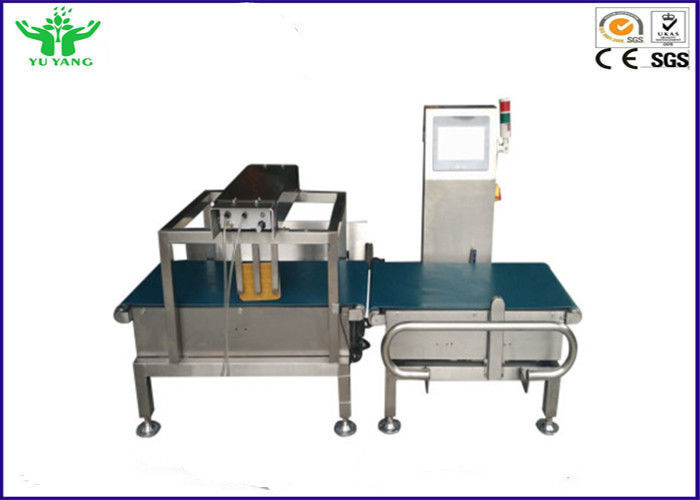

Product Display:
