| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | CE |
| Model Number: | YY - 01M |
| Minimum Order Quantity: | Set/Sets |
|---|---|
| Price: | US $ 4600 |
| Packaging Details: | 1160 x 1040 x 1320mm |
| Delivery Time: | 5 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 |
| Rated Power Output: | 45 Kw | Frequency Rang: | 30-80 KHz |
|---|---|---|---|
| Current Input: | 5-55A | Volume(mm 3): | 660 Mmx290mmx410mm 740 M |
| Net Weight: | 65KG | Gross Weight: | 80KG |
| Duty Cycle: | 100% | Brand: | YUYANG |
| High Light: | 45KW induction heating device,Super Audio quenching equipment,45KW quenching equipment |
||

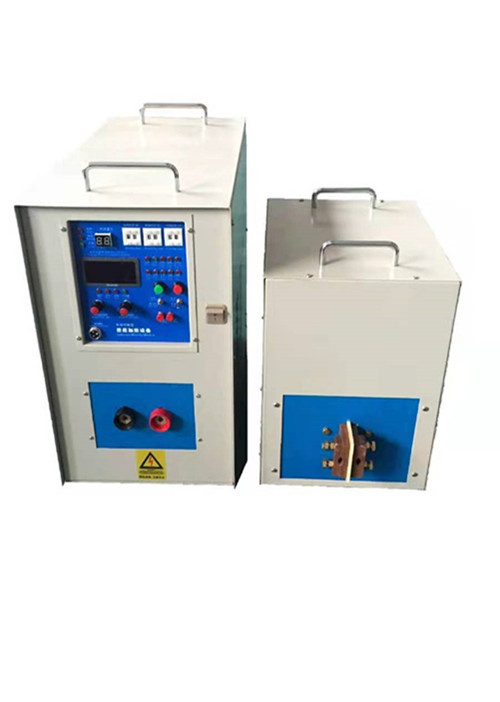

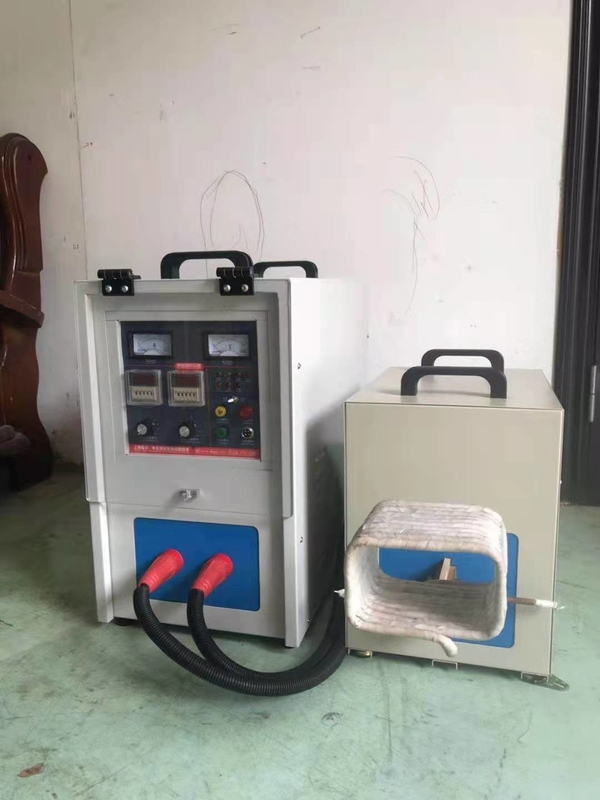

Metal Shaft Induction Heating Device 45KW Super Audio Quenching Equipment
Application

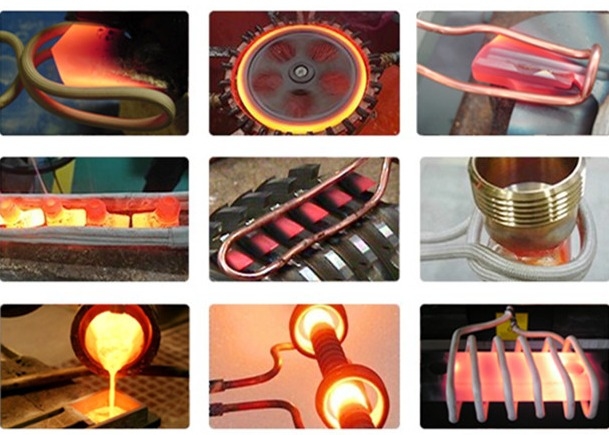

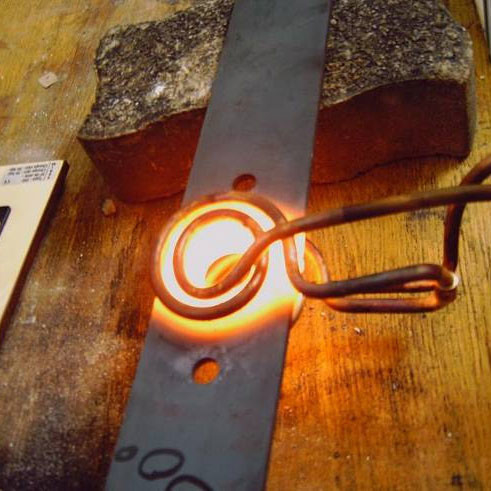

For Gear, shaft, Pipe, Bearing, Pump fitting, steel plate, roller etc. hardening
Parameter
| item | value |
| place of Origin | China |
| Brand Name | YUYANG |
| Condition | New |
| Machine Type | Induction Heating Machine |
| Machinery TestReport | Provided |
| Marketing Type | New Product 2021 |
| Warranty of core components | 1 Year |
| Core Components | PLC, Motor |
| Warranty | 1 Year |
| Online support, Video technical support | |
| Key Selling Points | Easy to Operate |
| After Warranty Service | Video technical support, Online support |
| Local Service Location | Malaysia, Saudi Arabia, Pakistan, India |
| Applicable Industries | Machinery Repair Shops, Manufacturing Plant, Other |
| Showroom Location | None |
| Rated Power output | 45kw |
| Frequency rang | 30-80 KHz |
| Current input | 5-55A |
| Volume(mm 3) | 660 mmx290mmx410mm 740 mmx340mmx380mm |
| Net Weight | 65Kg |
| Gross weight | 80kg |
| Duty cycle | 100% |
Main characteristics:
1. IGBT inversion technology based LC series circuit .
2. phase locking looping technology and soft switch ensure good reliability, realize power and frequency tracking automatically.
3. diode rectifier cause high power factor more than 0.95
4. working continuously with 100% duty cycle, power can be instantly turned on or shut off.
5. perfect protective circuit and cooling system design, which ensure the good reliability of machine.
6. low energy consumption: converts up to 97.5% above of the expended energy into useful heat. energy saving 15%-30% compared with SCR induction heating machine.
7. environment friendly, clean, non-polluting process which will help protect the environment, improves working conditions for your employees by eliminating smoke, waste heat, noxious emissions and loud noise.
8. operating and installation easily and safely
9. can subsititue traditional heating methods
