IEC 60587/IEC 60112 High Voltage Tracking Index Tester Machine

Name: IEC 60587/IEC 60112 High Voltage Tracking Index Tester Machine
Brand: YUYANG
SKU: YYF026
Price: 8500 USD
Availability: InStock
Rating: 4.6 (110 reviews)

Product Details:

Place of Origin:	China
Brand Name:	YUYANG
Certification:	CE
Model Number:	YYF026

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	$8500
Packaging Details:	Wooden Box
Delivery Time:	7-30 Days
Payment Terms:	T/T

Contact Now

Detailed Product Description

Product Name:	Tracking Index Tester Machine	The Electrode:	0.5mm Thick
Material:	Stainless Steel	Test Voltage:	100V-6000V Stepless Adjustable
Test Time:	6 Hours	Dropping Accuracy:	0.5%
High Light:	Sulfur Dioxide Environmental Test Chamber , 2.5KW Environmental Test Chamber , 95%RH temperature and humidity chamber

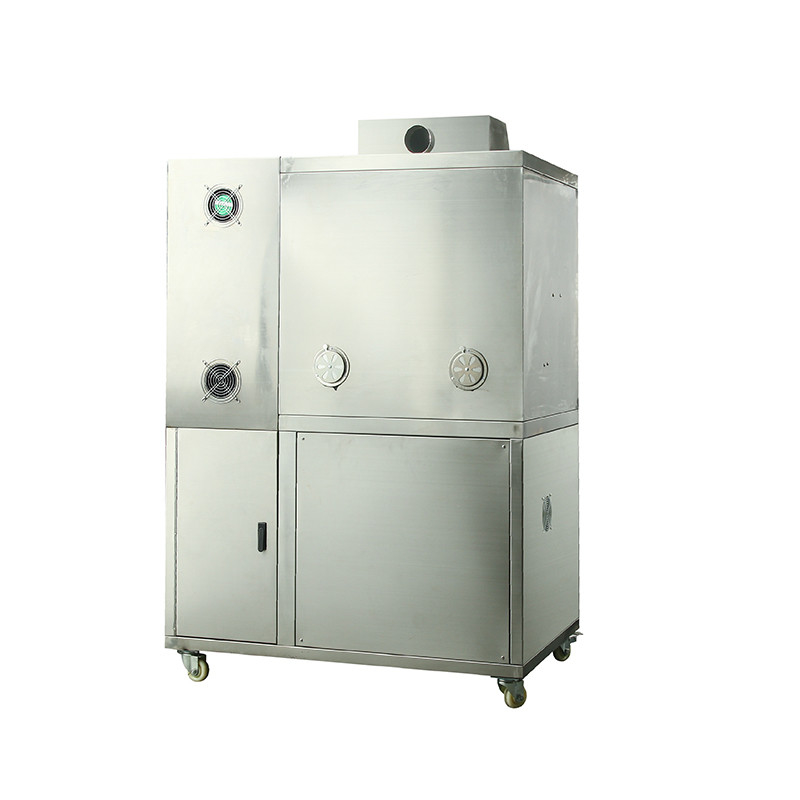

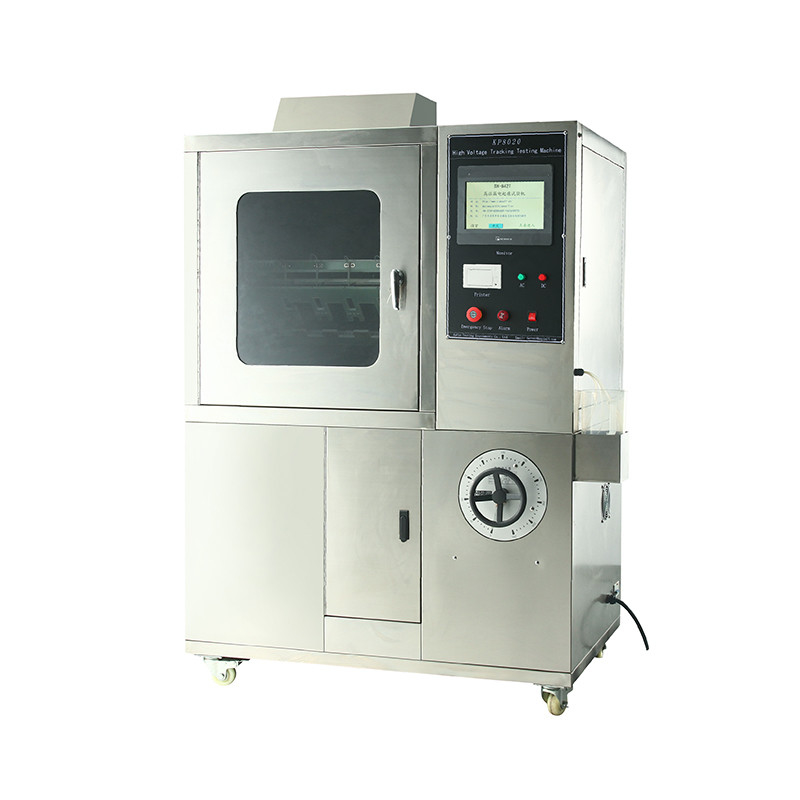

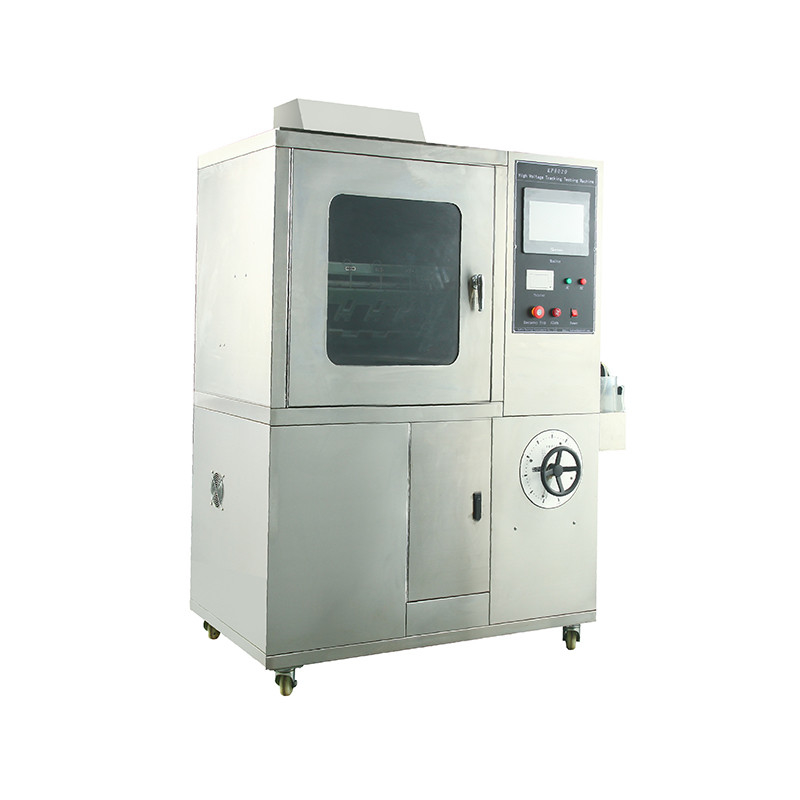

IEC 60587/IEC 60112 High Voltage Tracking Index Tester Machine 0

Description:

High Voltage tracking tester suit for electronic products, household appliances and other materials resistance to tracking and erosion test, simulate the frequency (48HZ-62HZ) or a corresponding DC Voltage, liquid contaminants and ramps samples by electrical resistance to tracking and erosion measurements assessed under severe environmental conditions of electrical insulating materials resistance to tracking and erosion levels.

Standards:

IEC 60587-1984, GB/T6553-2003,

ASTM D 2303 Standard Test Methods for Liquid-Contaminant, Inclined-Plane Tracking and Erosion of Insulating Materials

IEC 60587 : Test methods for evaluating resistance to tracking and erosion of electrical insulating materials used under severe ambient conditions

Feature:

Over-current protection : when the electric current value flowing through the specimen is more than 60mA

Selection of series resistance : 1 kΩ, 10 kΩ, 22 kΩ, 33 kΩ 1% Grade 200 W

Variable voltage settings : 0 ~ 6 kV

1.5% accuracy about entered value with a voltmeter

Using timer, a simple TEST hour setting function by hour / minute / second

Notification function : In 6 hours test, if the specimen is bad, the buzzer and flashing light starts working.

Syringe pump can create a constant flow conditions (flow rate memory function)

Electrical conduction meter can measure pollutants - Resistivity (0.1Ωm ~ 10 kΩ m) and temperature(0 ~ 100°C) measurements

Digital depth gauge : ± 0.01m accuracy

Insulated TEST BOX which is safe in high-voltage test

Specifications:1. The electrode: 0.5mm thick material: stainless steel;

The upper and lower electrode distance: 50.0mm ± 0.1;

The test voltage: 100V-6000V stepless adjustable;

The regulator: output: 0 ~ 250V adjustable, capacity 5KVA;

Test transformer capacity: 5KVA, the highest output voltage of AC6000V(or DC6000V optional);

High-precision voltage regulator output power: AC220V 6000W,accuracy of ± 1%;

The loop current is 60mA, cut off the output voltage;

Test time: 6 hours;

Dropping accuracy: 0.5%;

Voltage stability: + 1%;

The mark to judge:

According to standard GB/T6553-2003/4.1.2, the voltage applied to the specimen (2.5k V, 3 5K V and 4.5K V), and with a certain velocity dropsbelow 60mA in the current contamination, persistent 6H but flow is through;

Dropping device:

The Leif precision peristaltic pump, flow rate range from 0.00185 to 20 ml / min, the working speed of 0.1 ~ 50 rpm, flow accuracy error: < 0.5%;

The output voltage: AC / DC (switchable)

The experimental group: five groups

Control device: using Siemens PLC+ Taiwan wein view touch screen control, control precision, simple operation, design humanization, the end of the test automatically generate reports, panel thermal printer can print test results timely;

Studio size: 900L*650W*950H (mm); the volume is 0.56m3.

The case: the SUS304 stainless steel (wire drawing);

Sewage tank made of 316 stainless steel, with sealing device.

The instrument dimensions: 1300L*700W*1800H (mm)

Weight: 200KG
