Wire And Cable Ventilation Type Aging Test Environmental Chamber

Name: Wire And Cable Ventilation Type Aging Test Environmental Chamber
Brand: YUYANG
SKU: YYW013
Price: 600 USD
Availability: InStock
Rating: 4.8 (160 reviews)

Product Details:

Place of Origin:	China
Brand Name:	YUYANG
Certification:	CE
Model Number:	YYW013

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	$600
Packaging Details:	Wooden Box
Delivery Time:	7-30 Days
Payment Terms:	T/T

Contact Now

Detailed Product Description

Temperature Range:	RT+10℃~200℃ (300℃)	Uniformity Of Distribution:	±2.0℃
Air Ventilation Rate:	0-200 Times/hr Adjustable	Speed Of Test Frame ( RPM):	5-10
Temp.Constancy:	±0.5 Degree Celsius	Temp.Uniformity:	± 2 Degree Celsius~±3 Degree Celsius
High Light:	Sulfur Dioxide Environmental Test Chamber , 2.5KW Environmental Test Chamber , 95%RH temperature and humidity chamber

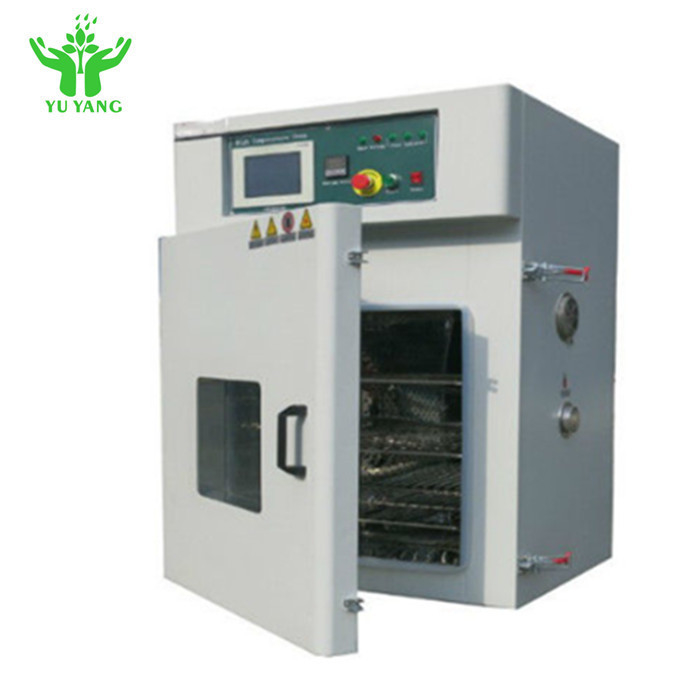

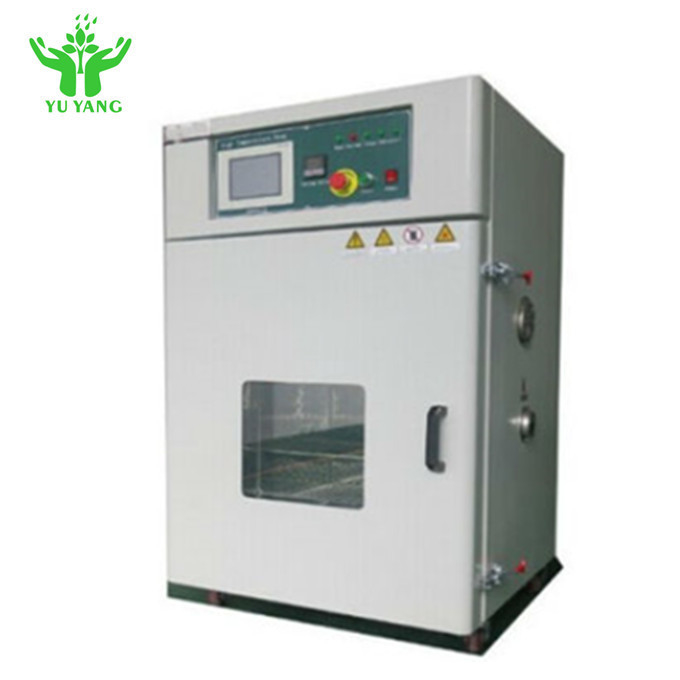

Wire And Cable Ventilation Type Aging Test Environmental Chamber 0

Product Description:

Ventilator-Aging Test Chamber is used to test the material heat-resistance of polymer materials (plastics) and electronic parts, electrical insulation materials, such as: Wire and cable sheathing,

heat-shrinkable tubing, rubber or PVC materials.

Ventilation Conversion Formula:

N=3590(X-Y)x2/VDt

N: Ventilators;

V: Capacity of case;

X: Power consumed when open the air valve

Y: Power consumed when closed

T: Temperature difference between working and environmental

Features:

1. Easy to operation and the box using CNC machining, elegant design, innovative and adopt

counterproductive handle.

2. Internal material is high imported SUS304 mirror Stainless steel or 304B TIG, outside is A3 Steel

spray, it improves the texture and appearance of cleanliness.

4. You can visually observe through huge Tempered glass windows with lights anytime and clearly.

5. Good uniformity of temperature

7. With D.50mm test holes on the left side for external test power line or signal line.

Saftey device:

1. With no-fuse protection switch

2. Control system with phase sequence protection and low voltage electrical protection.

3. With over-heat protection switch.

4. Over load protection device for refrigeration compressor.

5. Refrigeration compressor high and low voltage protection switch.

6. Refrigeration compressor over oil pressure protection.

7. Lack of Anti-phase protection system.

8. Overload protection for circulation fan motor

Model	YYW-013-45	YYW-013-60	YYW-013-75
Internal Dimension W×H×D(mm)	450×500×450	500×600×500	600×750×600
External Dimension W×H×D(mm)	1000×1000×700	1150×1200×850	1350×1500×1000
Internal and External Material	Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or see cold-rolled steel with paint coated.
Temperature Range	RT+10 degree ~200 degree (300 degree ) Uniformity of Distribution ±2.0 d
Uniformity of Distribution	±2.0 degree
Air Ventilation Rate	0-200 times/hr adjustable, with an ventilative adjustment button, Watt/Hour
Speed of Test Frame ( RPM)	5-10
Power	AC220V
