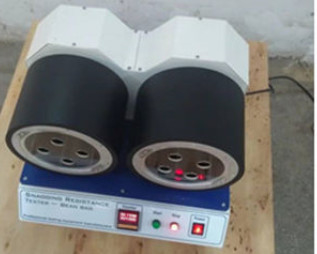

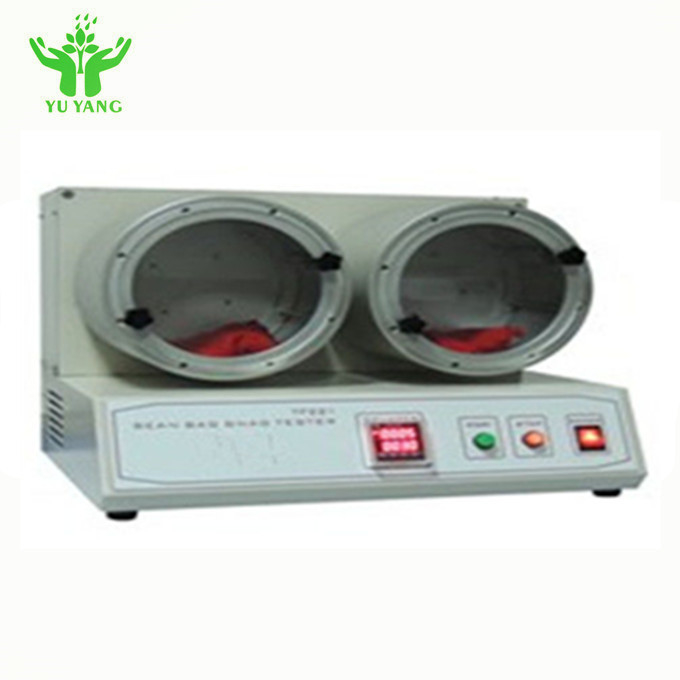

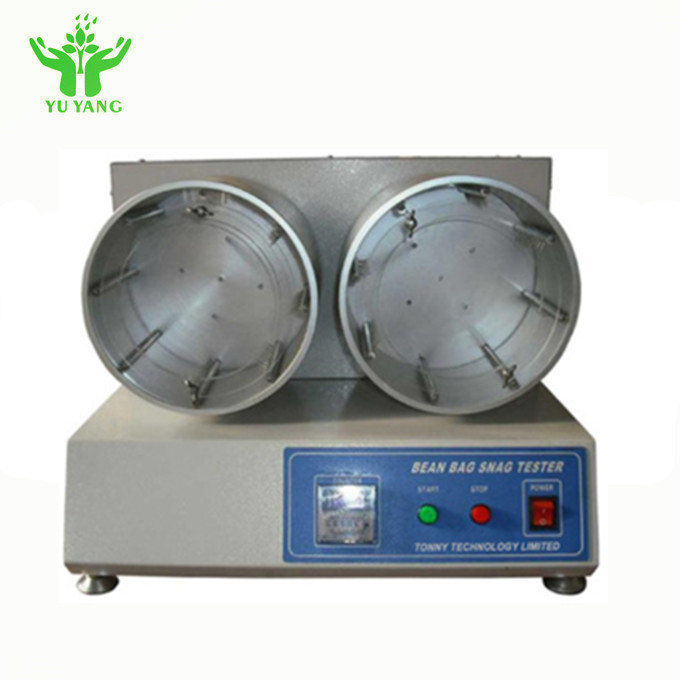

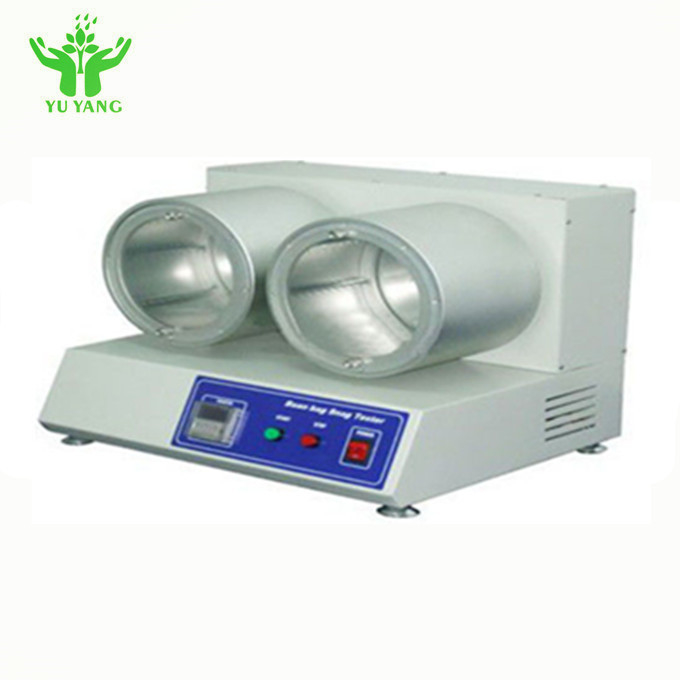

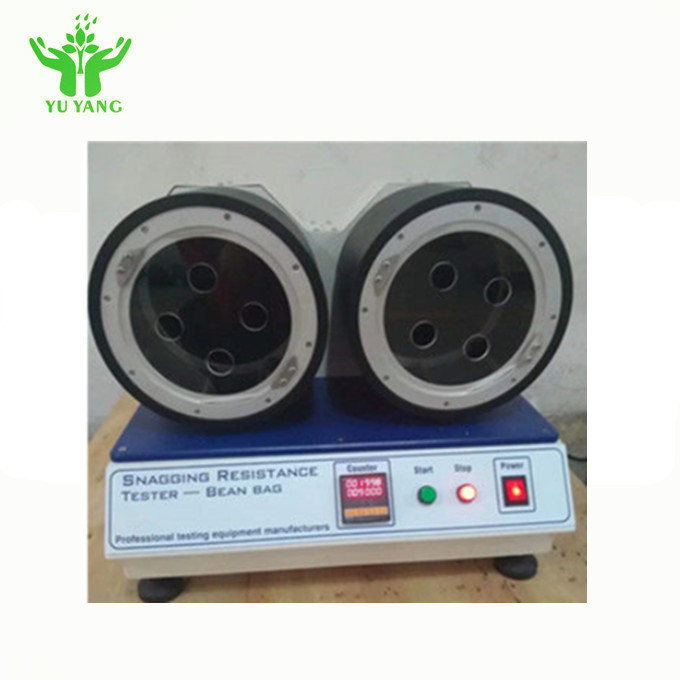

ASTM D5362 Textile Testing Equipment / Fabric Bean Bag Snagging Resistance Tester 215mmx115mm
Application:
To determine the snagging resistance of knitted and woven fabrics
Principle:
Put a bead occipital in a knitted sample, and then the knitted fabric samples with beads pillow put up a wall with a certain number of turns of rows and rows of needle rollers rotating, the sample after the test is completed assessment hook wiregrade
Parameter:
| Rotation speed: | 20±3 r/min |
| Size of cylinder: | Dia. 200mm, depth. 145mm |
| Pinned bars: | 8 PCS / Cylinder |
| Needles: | 9 PCS / Pinned bar |
| Bean bag weight: | 450±10g/pcs |
| Power: | AC 220V 50Hz 3A |
| Weight: | about 38 Kg |
| Dimensions: | 470x380x380mm(L×W×H) |
| Standard: ASTM D5362,JIS L1058, M&S P21A | ASTM D5362,JIS L1058, M&S P21A |
| Accessories: | specimen plate 115x215mmx21 pcs, Bean bag 2p |
| Optional purchase consumables: | scale, cabinet for scale |
Standard:
ASTM D 5362,JIS L 1058,M&S P21A
