Place of Origin: | China |
Brand Name: | YUYANG |
Certification: | CE |
Model Number: | YY012 |
Minimum Order Quantity: | 1PCS |
---|---|
Price: | $200 |
Packaging Details: | Wooden Box |
Delivery Time: | 7-30 Days |
Payment Terms: | T/T, Western Union, MoneyGram |
Product Name: | Textile Testing Equipment | Usage: | Rain Test |
---|---|---|---|
Sample Dimensions: | 150mm | Press Foot Diameter: | 200*200mm |
Sample Nip Width: | 152mm | Sample Nip Space Between: | 165mm |
High Light: | 165mm aatcc 35 rain test,Horizontal aatcc 35 rain test,aatcc textile tensile testing machine |
Description:

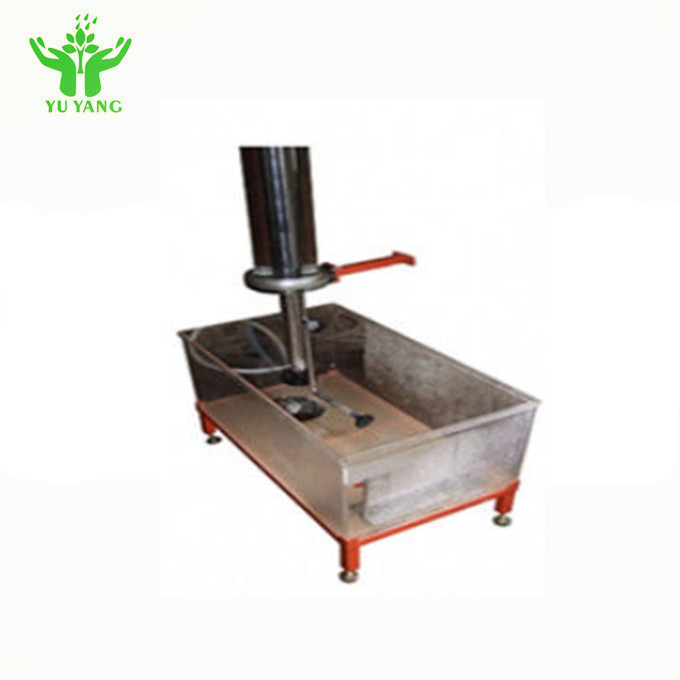

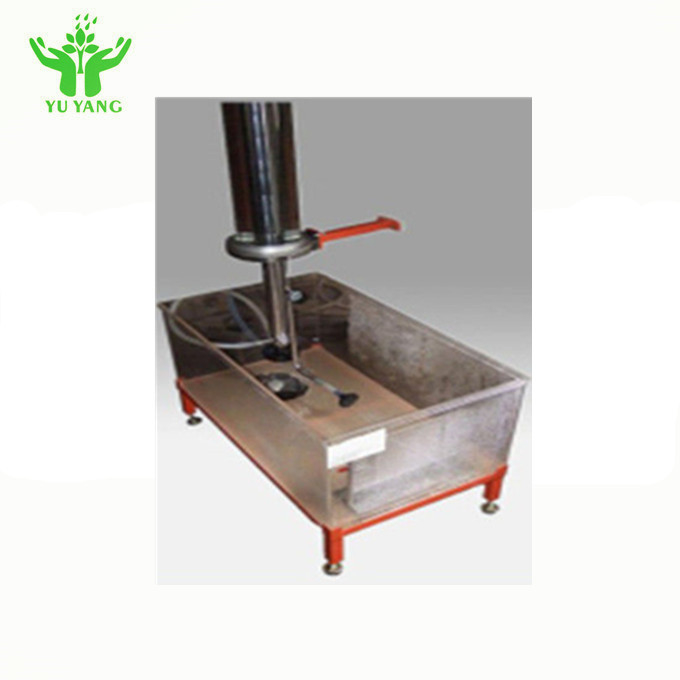

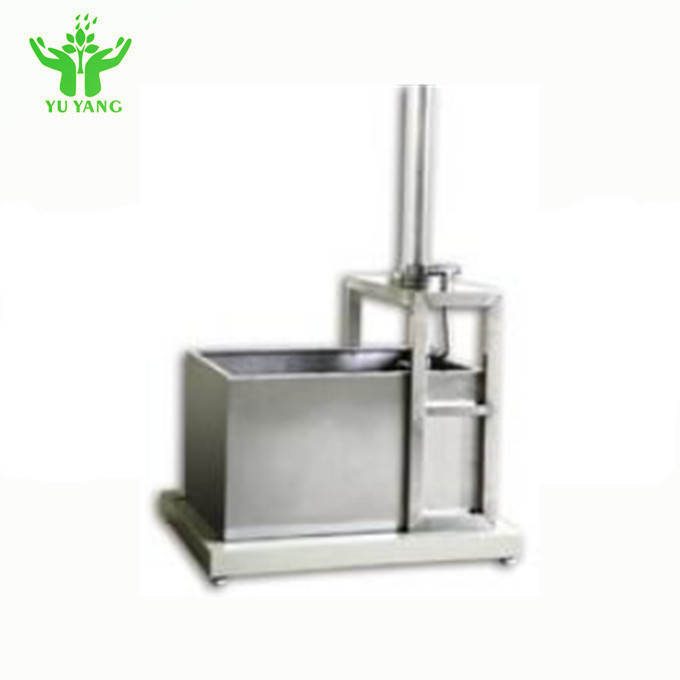

To determine the penetration resistance of fabrics or composites at different intensities of water impact. Simulated rain horizontally impacts fabric samples mounted vertically in a stainless steel bath. Samples are backed with a standardized blotting paper which is weighed before and after each test.
Principle:
Use the weighted absorbent paper to wrap over the test sample, make the test sample under water spraying for 5 minutes in controlled conditions, then re-weighted the absorbent paper to determine the amount of water infiltrated in the test sample during the spraying process.
Specification:
1. Sample Dimensions:150mm
2. Press foot diameter:200*200mm
3. Blotting Paper Dimensions:152*152mm
4. Sample Nip Width:152mm
5. Sample Nip Space Between:165mm
Standards: AATCC 35
Sample Dimensions: | 150mm |
Press foot diameter: | 200*200mm |
Blotting Paper Dimensions: | 152*152mm |
Sample Nip Width: | 152mm |
Sample Nip Space Between: | 165mm |
Standard | AATCC 35 |
