Name: 75mm Zipper Reciprocating Fatigue Testing Machine , 6bit Pull Out Test Machine
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY022
Price: 1600 USD
Availability: InStock

Home > products > Textile Testing Equipment >

75mm Zipper Reciprocating Fatigue Testing Machine , 6bit Pull Out Test Machine

75mm fatigue testing machine

Reciprocating fatigue testing machine

6bit pull out test machine

Place of Origin:

China

Brand Name:

YUYANG

Certification:

Model Number:

YY022

Request A Quote

75mm Zipper Reciprocating Fatigue Testing Machine , 6bit Pull Out Test Machine

Product Details

Product Name:

Textile Testing Equipment

Usage:

Zipper Pull Fatigue Tester

Reciprocating Stroke:

75mm

Counter LCD:

0-999999 6-bit Display

Dimensions:

280*550*660mm

Weight:

About 35Kg

Power:

AC~220V 50Hz

Highlight:

75mm fatigue testing machine

Reciprocating fatigue testing machine

6bit pull out test machine

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

$1600

Packaging Details

Wooden Box

Delivery Time

7-30 Days

Payment Terms

T/T, Western Union, MoneyGram

Geotextiles Electronic Disk Sampler Cutting Machine Fabric Sampling

Get Best Price

ISO4920 Fabric Textile Material Spray Rating Tester

Get Best Price

Video

High Sensitivity Mini Pocket Size Hand Held Broken Needle Detector

Get Best Price

Video

Sponge Compression Strength Test Machine Sponge Compression Hardness Tester

Get Best Price

+86-13825729807

markting@yuyangtest.com

86-769-26622869

Contact Now

Product Description

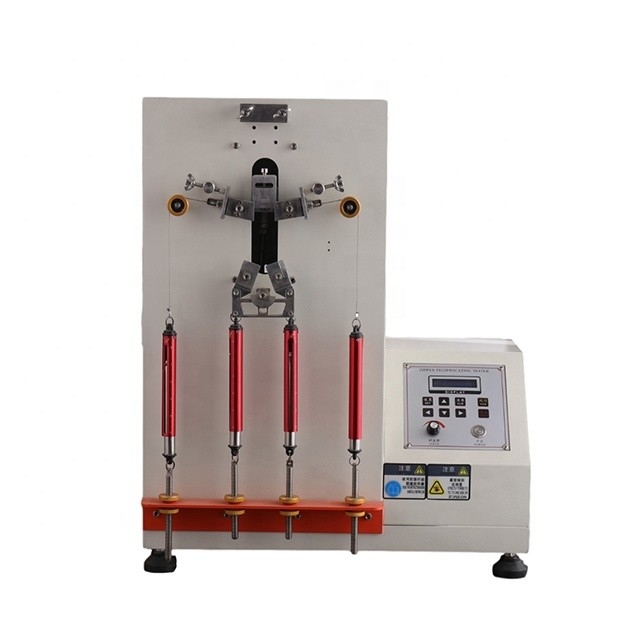

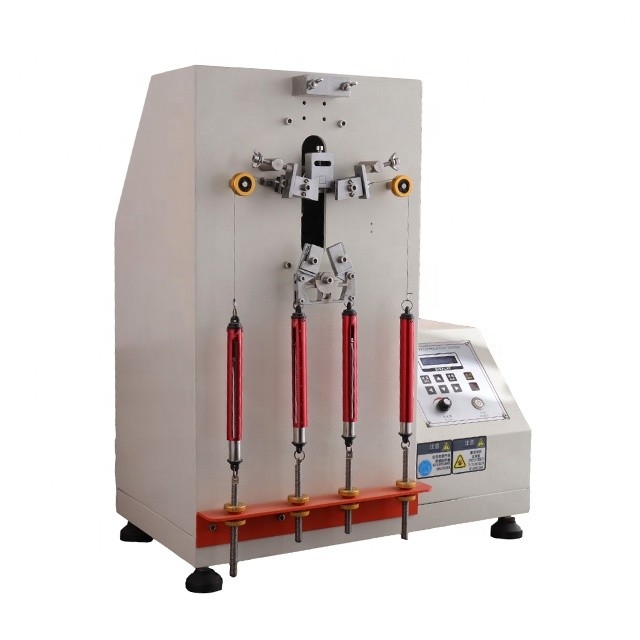

Zipper Reciprocating Fatigue Testing Machine Zipper Fatigue Pulling Tester Machine

Description:

The zipper reciprocating fatigue testing machine is used to test whether the zipper can withstand the specified number of

reciprocating and pulling operations under the action of transverse and longitudinal tensile forces. The test machine drives the zipper pulling head at the same speed to make 30 reciprocating motions per minute until the specified number of times.

Standard:

CNS-1083,QB/T2171-2173

Parameter:

			model

			YY062

			Reciprocating stroke

			75mm

			Width of transverse clamping device

			25mm

			Total weight of longitudinal clamping device

			0.28-0.34kg

			The two clamping devices are apart

			6.35mm

			The Angle of engagement of the specimen

			60°

			The opening Angle of the specimen

			30°

			counter

			LCD 0-999999 6-bit display

			Size

			280×550×660mm

			weight

			About 35Kg

			power

			AC～220V 50Hz

75mm Zipper Reciprocating Fatigue Testing Machine , 6bit Pull Out Test Machine 0

75mm Zipper Reciprocating Fatigue Testing Machine , 6bit Pull Out Test Machine

75mm fatigue testing machine

Reciprocating fatigue testing machine

6bit pull out test machine

75mm fatigue testing machine

Reciprocating fatigue testing machine

6bit pull out test machine

Geotextiles Electronic Disk Sampler Cutting Machine Fabric Sampling

ISO4920 Fabric Textile Material Spray Rating Tester

High Sensitivity Mini Pocket Size Hand Held Broken Needle Detector

Sponge Compression Strength Test Machine Sponge Compression Hardness Tester

Description:

Standard:

Parameter:

fabric stiffness tester

textile testing machines

textile lab equipment

model	YY062
Reciprocating stroke	75mm
Width of transverse clamping device	25mm
Total weight of longitudinal clamping device	0.28-0.34kg
The two clamping devices are apart	6.35mm
The Angle of engagement of the specimen	60°
The opening Angle of the specimen	30°
counter	LCD 0-999999 6-bit display
Size	280×550×660mm
weight	About 35Kg
power	AC～220V 50Hz
