| Place of Origin: | China |
| Brand Name: | YUYANG |
| Model Number: | YY025 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | $100 |
| Packaging Details: | Wooden Box |
| Delivery Time: | 7-30 Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Product Name: | Textile Testing Equipment | Usage: | Hand Reeling Twist Test |
|---|---|---|---|
| Sample Length: | 0~300mm (Adjustable) | Max Twist Shrinkage: | 20mm |
| Weight: | 6kg | Dimensions: | 600*120*200mm (L*W*H) |
| Power Supply: | 220V 50Hz | ||
| High Light: | ISO 2061 Textile Testing Equipment,Hand Reeling yarn twist tester machine,5cN yarn twist tester machine |
||

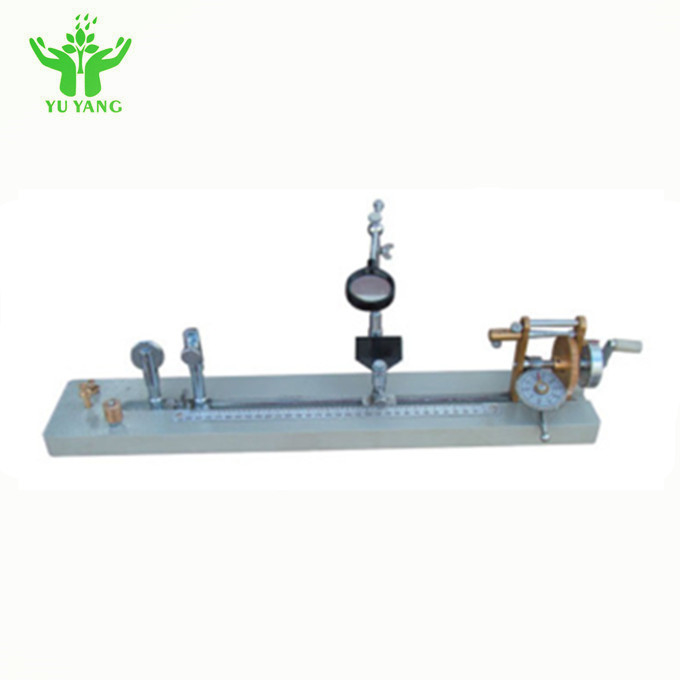

Yarn Examining Machine Textile Testing Equipment Yarn Inspection Test
Standards:
ISO 2061 Textiles-Determination Of Twist In Yarns-Direct Counting Method
Feature:
1. Right yarn grip rotates two directions,clockwise and counterclockwise
2. Equipped with a mafnifier to check the degree of the yarn's parallelization
3. Be able to add pre-tension
4. The number of twist can be read out from dial plate directly
Specification:
1. Sample length 0~300mm(Adjustable)
2. Range of twist test 1~500 tex/10cm
3. Twist graduate 1/10 twist
4. Unit system metric
5. Magnifier magnification 10 times
6. Max twist shrinkage 20mm
7. Pre-tension 5cN,10cN
8. Drive model manual
9. Size 600*120*200mm(L*W*H)
10. Weight:5.6kg
