| Place of Origin: | China |
| Brand Name: | YUYANG |
| Model Number: | YY030 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | $1000 |
| Packaging Details: | Wooden Box |
| Delivery Time: | 7-30 Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Product Name: | Fabrics Induction Type Electrostatic Tester | Usage: | Electrostatic Induction Fabric Test |
|---|---|---|---|
| Voltage Range: | 0 ~ 10KV | Rotary Speed: | 1500r / Min |
| Sample Size: | 45*45mm | Power Supply: | AC220V 50Hz 60W |
| Weight: | 85Kg | Dimensions: | 720 * 560 * 1400mm |
| High Light: | Electrostatic Textile Testing Equipment,1500r/Min Textile Testing Equipment,Fabrics Induction electrostatic tester |
||

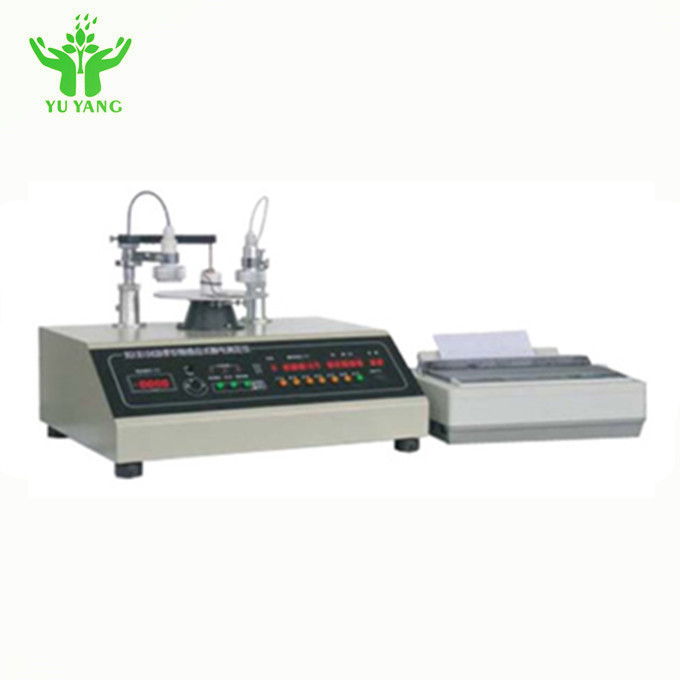

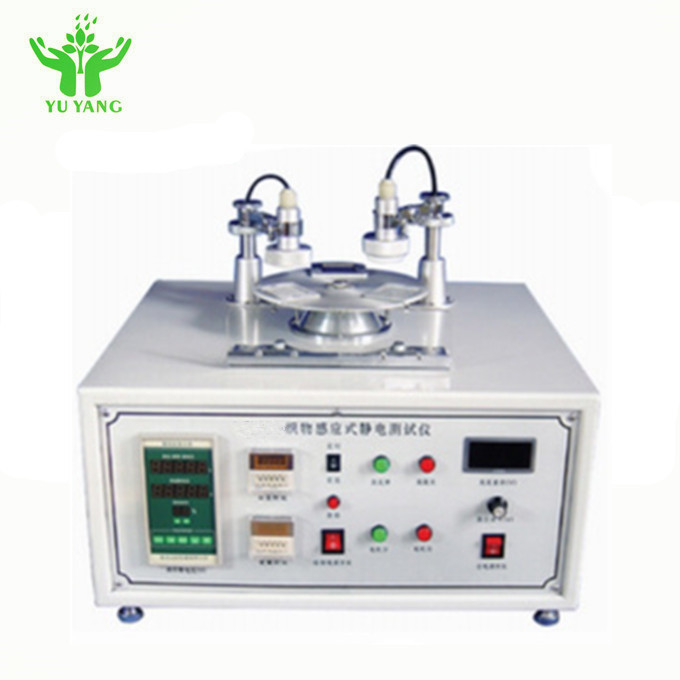

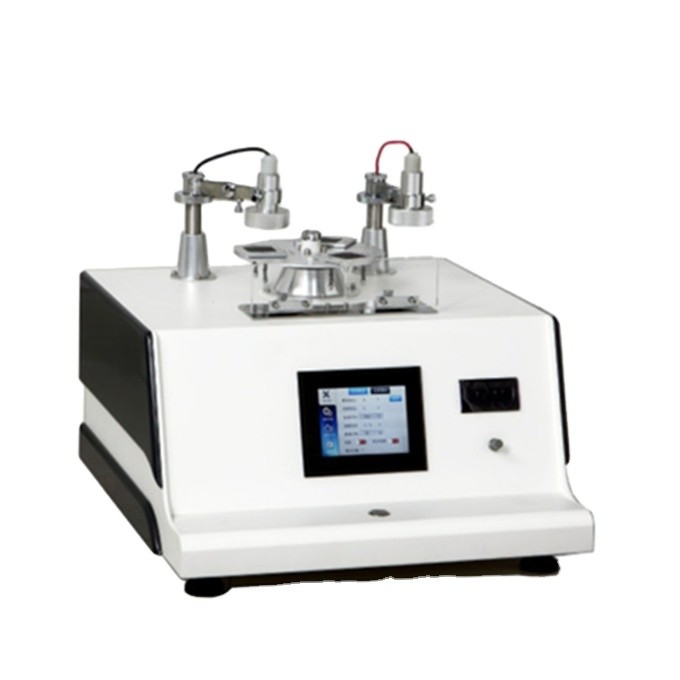

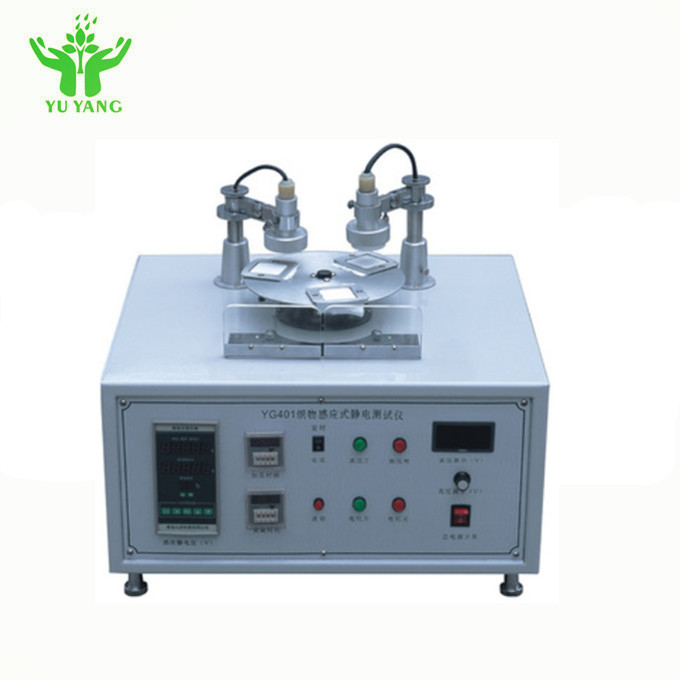

Fabrics Induction Type Electrostatic Tester Detector Machine
Description:
Fabrics Induction type Electrostatic Tester .With the Laboratory conditions, it can determine the electro-static properties of various textile raw materials and made-up goods (including fiber, yarn, fabrics,carpet, decoration fabrics). It can also be used to measure the electro-static performances to other sheets (plates) such as paper, rubber, plastic, composite sheets and so on.
Specifications:
Measuring Range of Electro-static Voltage: 0 ～ 10KV
Half-life Time Limit Range: 0 ～ 10000s,error±1s
Sample Tray Rotating Speed: ＞1000r/min
Discharge Time: 0 ～ 99s to be adjustable(
standard requirement:30s±0.1s)
Discharge Distance between Pin Electrode and Testing Specimen: 20mm
Measuring Space between Testing Sensing Probe and Testing Specimen: 15mm
Test Specimen Size: 60mm×80mm ( 3pcs )
Power Source: 220V 50HZ 300W
Applicable standards: GB/T12703；FZ/T010426
