Place of Origin: | China |
Brand Name: | YUYANG |
Model Number: | YY031 |
Minimum Order Quantity: | 1PCS |
---|---|
Price: | $1000 |
Packaging Details: | Wooden Box |
Delivery Time: | 7-30 Days |
Payment Terms: | T/T, Western Union, MoneyGram |
Product Name: | Single Yarn Strength Tester | Force Scale: | 0-1000cN; 0-3000cN; 0-5000cN |
---|---|---|---|
Force Division: | 0.5CN; 1CN; 1cN | Precision: | <=1 %F.S |
Pretension: | 0~150cN (adjustable) | Weight: | 60kg |
Dimensions: | 370*450*970mm | ||
High Light: | ISO2062 Textile Testing Equipment,ASTM D2256 Textile Testing Equipment,Single Yarn strength testing machine |

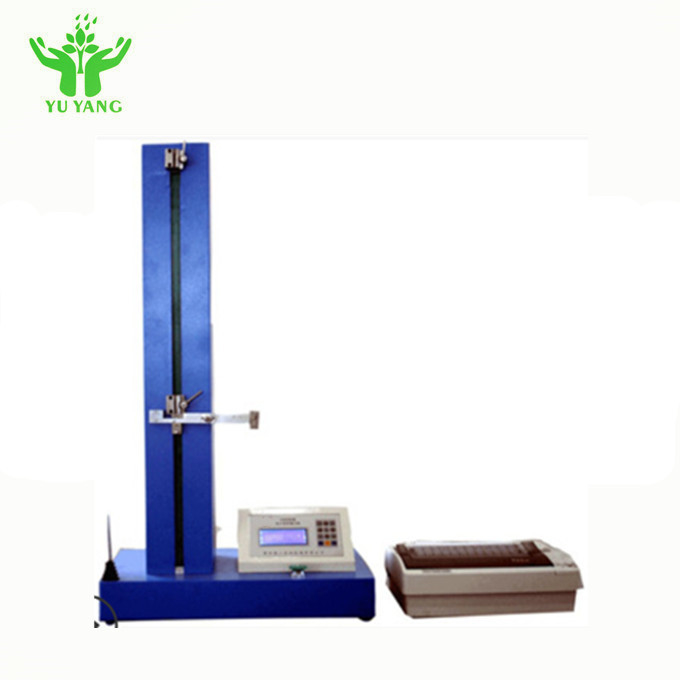

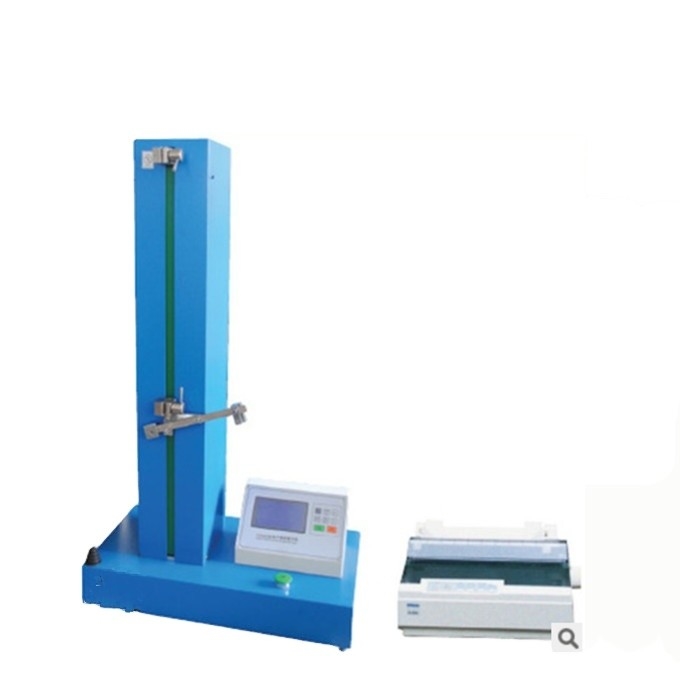

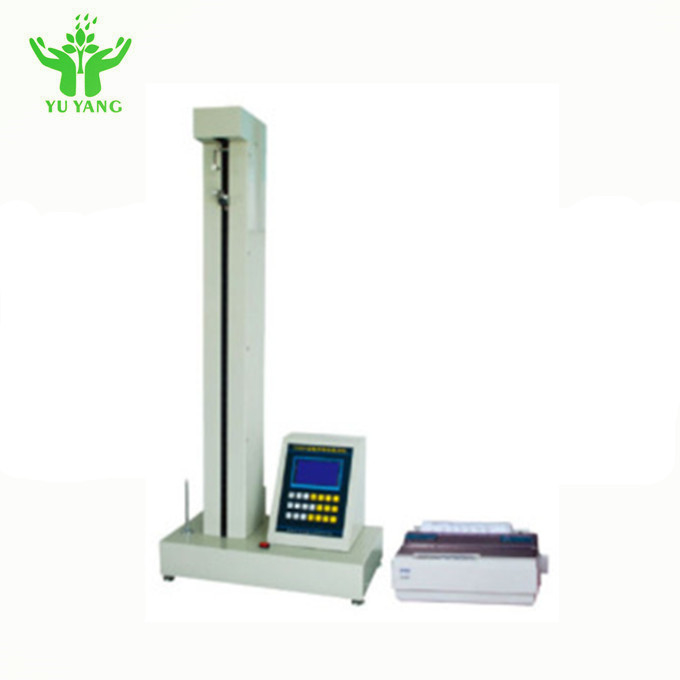

Strength Testing Machine ISO2062 Electronic Single Yarn ASTM D2256 Single Yarn Strength Tester
Electronic Single Yarn Strength Tester is suitable for determining the breaking load and extension of single yarns. It does adopt CRE principle and automatically operated with pneumatic/magnetic clamp,provided with scales 0-5000cN force max.
Relevant Standards: GB/T14344 GB/T3916 ISO2062 ASTM D2256
Technical Parameters:
Force scale:0-1000cN; 0-3000cN; 0-5000cN
Force division: 0.5CN; 1CN; 1cN
Precisio:<=1 %F.S
Extention speed:50-1000mm/min (adjustable)
Reverting speed:50-1000mm/min (adjustable)
Extention scale:100mm,250mm,500mm (three selection)
Pretension: 0~150cN (adustable)
Power:AC 220V±10% 50Hz
Dimension: 370*450*970
Weight:60kg
