Single Column 500kg 0.5kVA Textile Testing Equipment Universal Use

Single Column 500kg 0.5kVA Textile Testing Equipment Universal Use

  • Single Column 500kg 0.5kVA Textile Testing Equipment Universal Use
  • Single Column 500kg 0.5kVA Textile Testing Equipment Universal Use
  • Single Column 500kg 0.5kVA Textile Testing Equipment Universal Use
  • Single Column 500kg 0.5kVA Textile Testing Equipment Universal Use
Single Column 500kg 0.5kVA Textile Testing Equipment Universal Use
Product Details:
Place of Origin: China
Brand Name: YUYANG
Model Number: YY047
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $2500
Packaging Details: Wooden Box
Delivery Time: 7-30 Days
Payment Terms: T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Product Name: Single Column Tensile Testing Machine Maximum Load: 500kg
Force Unit: N,KN,Kgf,Lbf Power Consumption: 0.5 KVA
Power Source: 220 VAC, 50/60 Hz Volume: 57*47*120cm
Effective Width Of Test: 120mm Deformation Display Accuracy: ±0.5%
Weight: 70kg
High Light:

500kg Textile Testing Equipment

,

0.5kVA Textile Testing Equipment

,

Single Column universal tensile testing machine

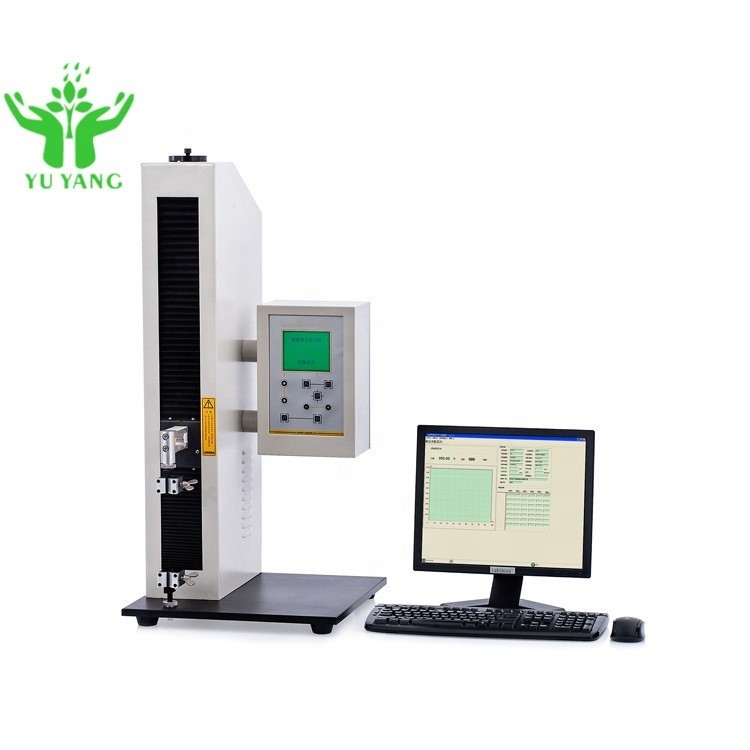

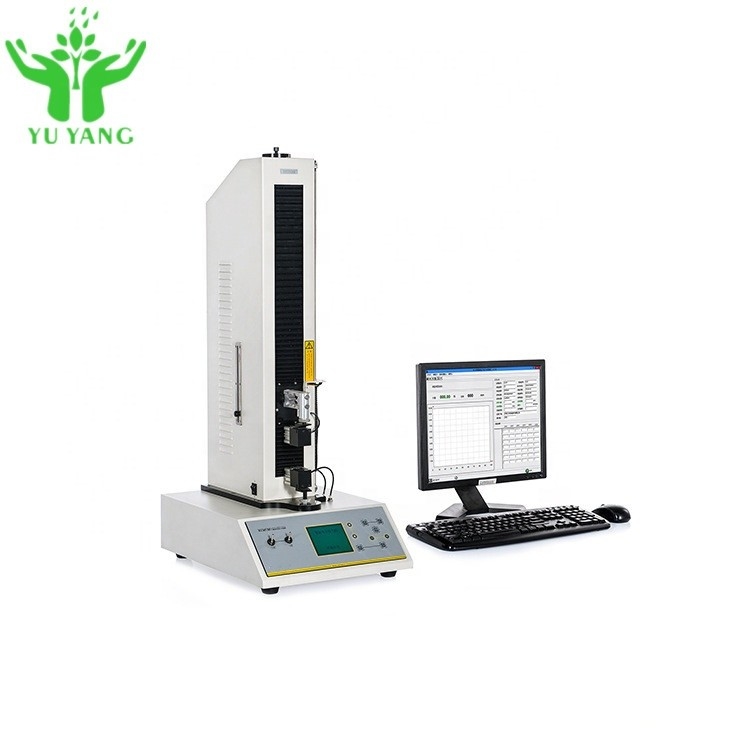

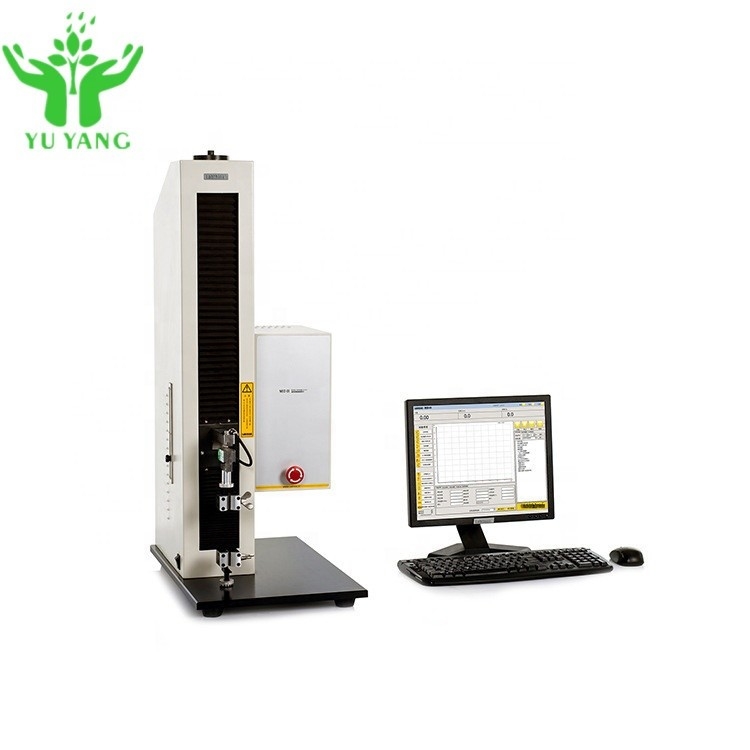

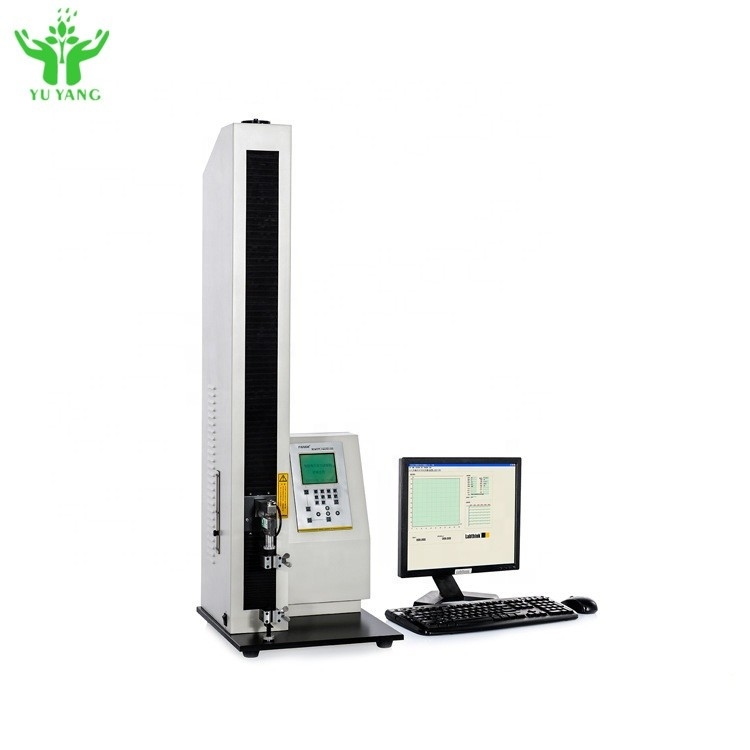

Tensile Testing Machine Single Column Universal Material Tensile Testing Machine 500kg



The machine adopts computer control, which are widely used in rubber, plastics, plywood,wire and cable, textiles, waterproof material, non-woven fabrics and other non-metallic materials and metal wire, metal foil, sheet metal and metal mechanical properties test, with special fixture is also suitable for all kinds of finished products tensile, compression, peel, cut, tear, bend test (passbook).It can print multiple data, and make graphic output comparison according to different data, with high control accuracy and easy operation.Adopt modular design, all kinds of accessory accessories are complete, the collocation is flexible.
This machine is mainly used to test the mechanical properties of metal such as stretching, compression and bending, etc., and it can also realize the constant stress, constant strain, creep, relaxation, axial and radial, etc.According to GB, JIS, ASTM, DIN and other standards, parameters such as tensile strength, yield strength, elongation, constant elongation stress, constant stress elongation and elastic modulus can be calculated automatically





control mode
Computer software sets speed, sets load breaking (breaking), running
time and other control methods
Manual operation box
It is convenient to calibrate and position the specimens when loading and
holding them. It can automatically determine the material breaking,
crushing, and stop the machine. It can be set to return
automatically
Curve type
Load - displacement, load - time, displacement - time.
Stress - strain, strain - time, stress - time.
Curve vertical and horizontal coordinates can be set arbitrarily.
Available test data
Maximum strength, minimum strength, fracture value, upper and lower
yield strength, tensile strength, compressive strength,
modulus of elasticity, elongation, maximum, minimum, mean value, etc.
It has multiple protection such as overload, overcurrent,
overvoltage, undervoltage, overspeed and travel.
Load sensing
High precision pressure and tension actuator,(multiple sensors can be
installed at the same time - optional)
Test speed range
servo-type: 0.5~500 mm/min Speed Promise
