UL94 Horizontal Flammability Tester 0.85m3 For Plastic Materials

UL94 Horizontal Flammability Tester 0.85m3 For Plastic Materials

UL94 Horizontal Flammability Tester

0.85m3 Horizontal Flammability Tester

Horizontal 0.85m3 flammability test chamber

Place of Origin:

China

Brand Name:

YUYANG

Model Number:

YY312

Contact Us
Request A Quote
UL94 Horizontal Flammability Tester 0.85m3 For Plastic Materials
UL94 Horizontal Flammability Tester 0.85m3 For Plastic Materials UL94 Horizontal Flammability Tester 0.85m3 For Plastic Materials UL94 Horizontal Flammability Tester 0.85m3 For Plastic Materials
Product Details
Product Name:
Horizontal And Vertical Flammability Tester
Ambient Temperature:
10 ~ 35℃
Relative Humidity:
≤75%
Flame Height:
20mm ± 2mm To 180mm±10mm (adjustable)
Air Purity:
≥95% Natural Gas, Propane
Flame Time:
0-999.9s±0.1s (adjustable)
After Flame Time:
0-999.9s±0.1s (auto Record, Manual Pause)
After Glow Time:
0-999.9s±0.1s (auto Record, Manual Pause)
Power Supply:
AC220V, 50Hz, ≤500W
Highlight:

UL94 Horizontal Flammability Tester

,

0.85m3 Horizontal Flammability Tester

,

Horizontal 0.85m3 flammability test chamber

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
$3000
Packaging Details
Wooden Box
Delivery Time
7-30 Days
Payment Terms
T/T, Western Union, MoneyGram
RELATED PRODUCTS
Good price UL 94 ASTM D 635 Plastic Horizontal Flammability Tester Burning Rate Testing Equipment online Video

UL 94 ASTM D 635 Plastic Horizontal Flammability Tester Burning Rate Testing Equipment

Get Best Price
Good price Ul94 50w Vertical / Horizontal Flammability Tester For Plastic Materials online

Ul94 50w Vertical / Horizontal Flammability Tester For Plastic Materials

Get Best Price
Good price FMVSS 302 Motor Vehicle Materials Horizontal Flammability Tester Burning Behavior Test Equipment online

FMVSS 302 Motor Vehicle Materials Horizontal Flammability Tester Burning Behavior Test Equipment

Get Best Price
Good price D 25mm CE Needle Flame Test Apparatus , Multipurpose Fire Testing Equipment online

D 25mm CE Needle Flame Test Apparatus , Multipurpose Fire Testing Equipment

Get Best Price
Contact Us
+86-13825723571
sales002@yuyangtest.com
86-769-26622869
Contact Now
Product Description

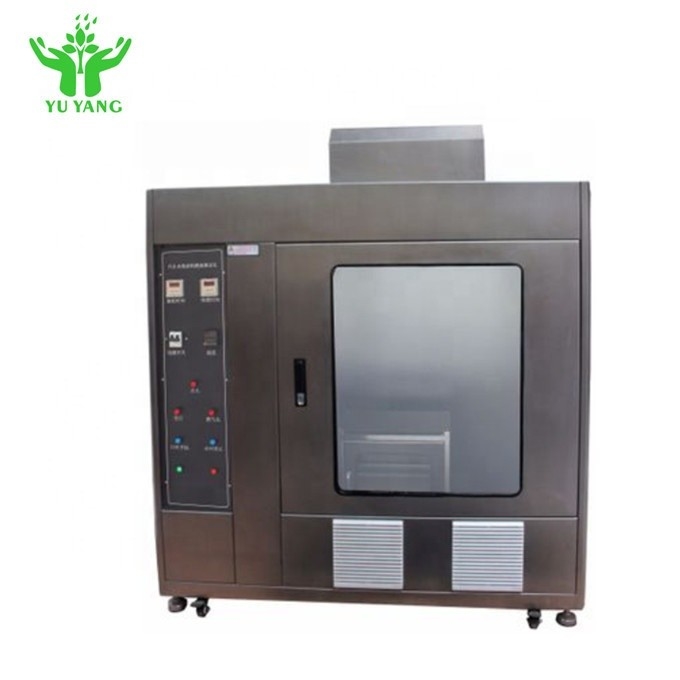

UL94 Horizontal and Vertical Flammability Tester



Description:
UL-94 Flame Retardant Tester is used for the flammability testing of plastic materials such as V-0 V-1 V-2, HB, 5V, HF-1 HF-2, HBF material or foam, and used in consumer electric devices and appliances for flammability rating assessment. Such as insulating housing of household appliances, switch panel, the printed circuit board and insulating material etc

Main specification:
Test room: 0.85 m³
Time adjustment of continuous flame: 0 ~ 99minutes99seconds
Time adjustment of afterflame: 0 ~ 99minutes99seconds
Time adjustment of afterglow: 0 ~ 99minutes99seconds
Flame height: is easy to adjust, from 20mm to 175mm according to the standard.
Timer: 0~999.9s+/-0.1 s (adjustable)
Burn angle: 20 °,45 °,90 ° (that is 0 °) adjustable
Burner: inner diameter Ø9.5mm±0.3mm, (Bunsen burner) length of 100mm
Gas: 98% methane
Temperature testing range: 0~1000 degree
Power: AC 220V,50Hz
Size:1100mm×700mm×1300mm
Standards:,UL 94<<Test for Flammability of Plastic Materials for Parts in Devices
Appliances>> ,IEC60950:1999, IEC 707 ,ISO1210:1992 ,GB/T 5169, GB/T 4706

Accessories: Micro gas tanks, Micro gas cylinders 2pcs, lighting device, air extractor Gas flow control valve, Gas pressure gauge, Gas pressure regulator, Gas flow meter, Gas u-shap ed pressure gauge and specimen clamp,, power line 1pcs
