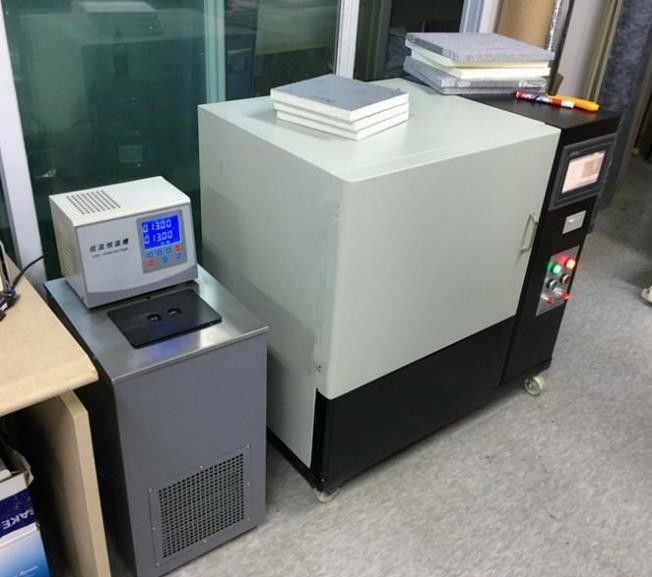

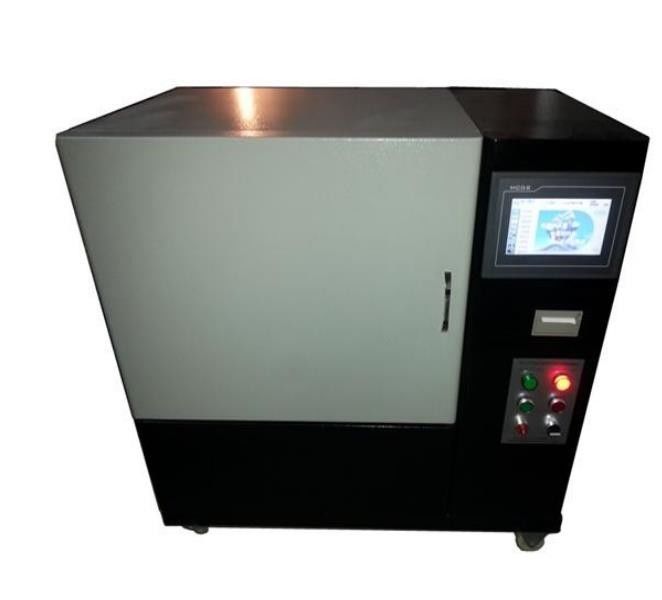

ASTM C518 Fire Testing Equipment Thermal Conductivity Properties Tester 5 To 50Mm

ASTM C518 Fire Testing Equipment Thermal Conductivity Properties Tester 5 To 50Mm

ASTM C518 Fire Testing Equipment Thermal Conductivity Properties Tester 5 To 50Mm
ASTM C518 Fire Testing Equipment Thermal Conductivity Properties Tester 5 To 50Mm
ASTM C518 Fire Testing Equipment Thermal Conductivity Properties Tester 5 To 50Mm
Product Details:
Place of Origin: China
Brand Name: YUYANG
Model Number: YY165
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $8700
Packaging Details: Wooden Box
Delivery Time: 7-30 Days
Payment Terms: T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Product Name: Conductivity Properties Tester By Heat Flow Meter Thermal Conductivity Range: 0.005 ~ 2.3 W/m•K
Repeatability; Accuracy: ±1%; ±3% Thermal Resistance Range: 0.1 ~ 8.0 M2K/W
Temperature Range: RT ~ 60 ℃ Cooling System: External Water Bath/compressed Air
Environmental Condition: Room Temperature: 18~25℃, Humidity: 20~80%RH Sample Size: 300 * 300 Mm Thickness: 5 To 50 Mm
Supply Voltage: AC 220V±5%, Power: 3.0kw External Dimensions; Net Weight: 89*60*90(cm); 110kg
High Light:

ASTM C518 Fire Testing Equipment

,

5Mm Fire Testing Equipment

,

50Mm Thermal Conductivity Properties Tester

ASTM C518 Steady-State Thermal Conductivity Properties Tester by Heat Flow Meter



Description:

It is mainly used to test the thermal conductivity of insulation materials, glass, fiber, foam and so on. Testing materials include fiber board, loosing filler glass fiber, rock wool, foam plastic (XPS/EPS/PUR, etc.), inter-layer composite plate, vacuum plate, rubber products, cement(concrete) products, powder materials, filler materials, gypsum board and so on. DRH300 coefficient of thermal conductivity measurements conform to ASTM C 518, ISO8302, ISO 8301, JIS b 1412, DIN EN 12939, DIN EN 13163 with DIN EN 12667 and relevant international standards. It is in full compliance with the national thermal conductivity measurement standard with its stable and accurate temperature control technology, computer interface, software’s real-time monitoring and control, data processing and saving connecting. With these advantages, it is applied widely in materials properties detection organization, scientific research institution, quality detection department of factory, institutions of higher education teaching and research.



Features:

1. It has fuzzy guarded plate that is hot plate temperature tracking and precision control technology

2. Self-calibration function of the thermal conductivity and heating power
3. Compensation for test piece’s thickness and the average temperature
4. WINDOWS automatic thermal analysis measuring software system, data analysis and reporting output function.

Specification:
ASTM C518 Fire Testing Equipment Thermal Conductivity Properties Tester 5 To 50Mm 0
