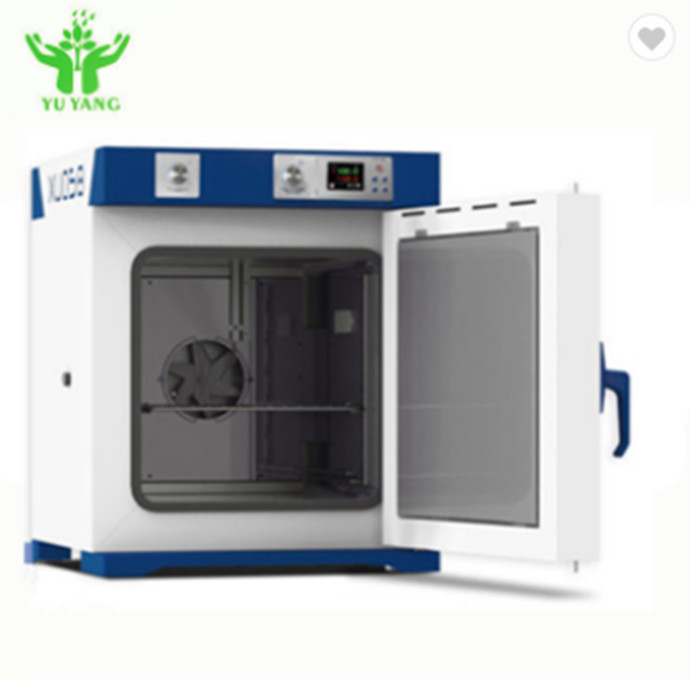

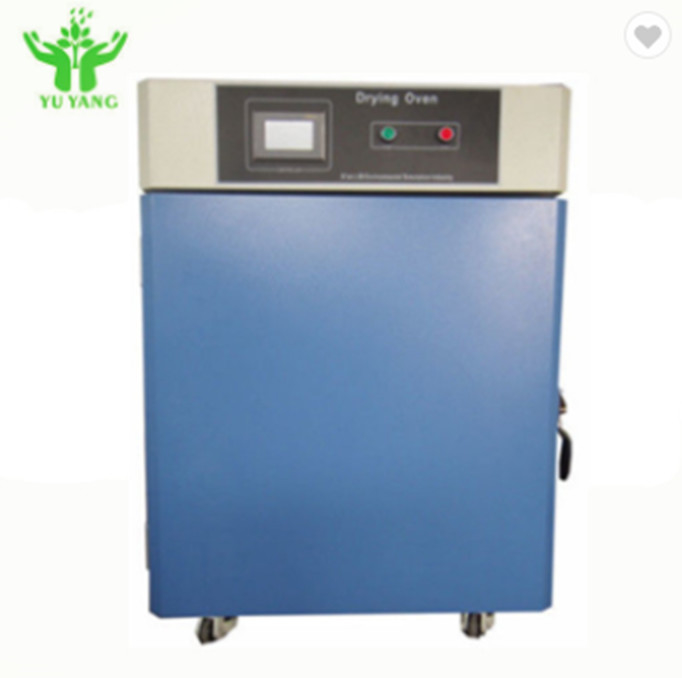

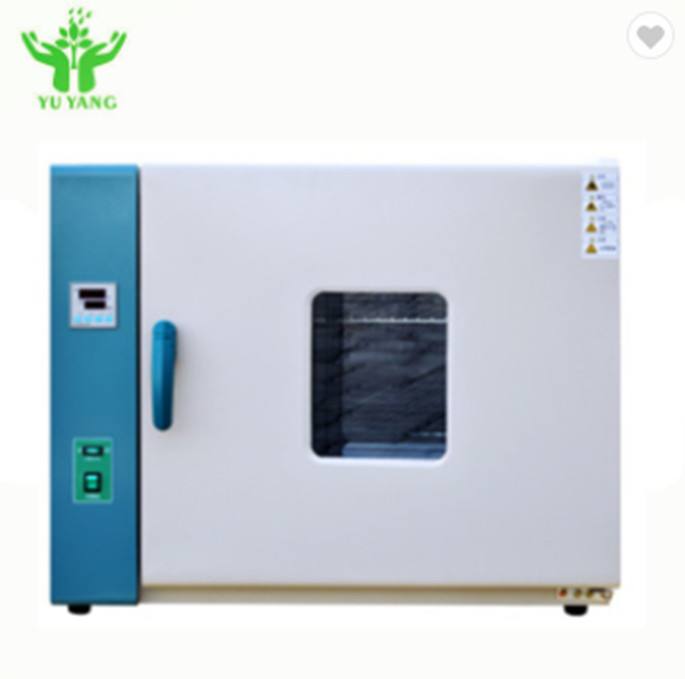

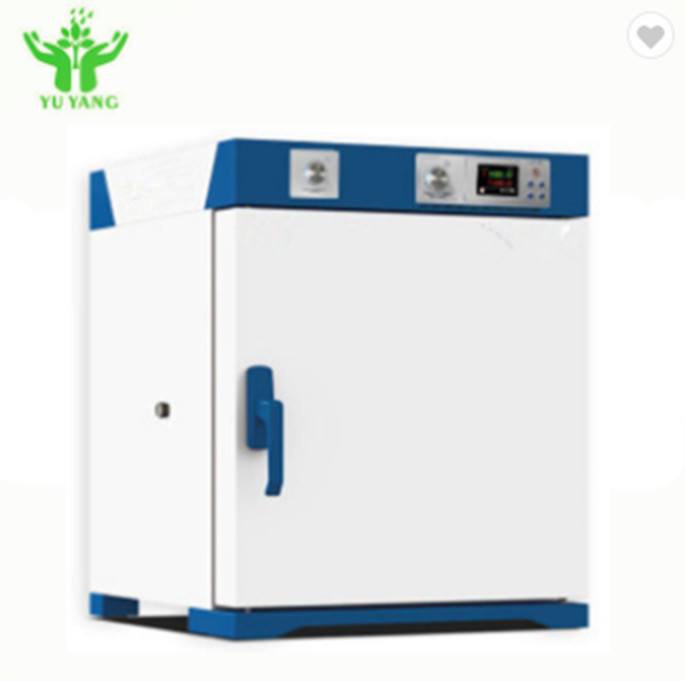

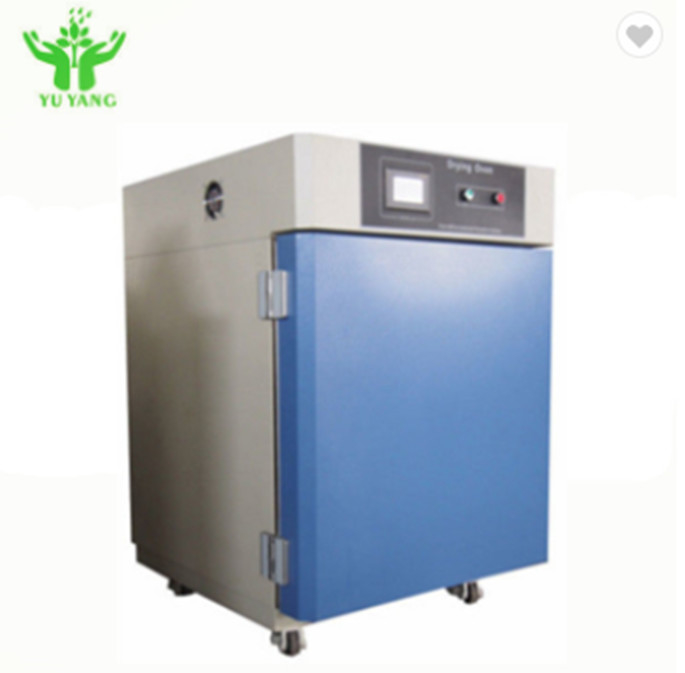

Stainless Steel Environmental Test Chamber Hot Air Circulating Industrial Drying Oven
Product Description:
Hot air drying oven is to make use of the steam or electric as heat source, through heating
the air by heat exchange and adopting the axial fan as the driving power, the moisture
content of hot air materials is reducing so as to realize the purpose of drying. It is wildly
used in pharmaceutics, food make, light and heavy, manufacture industries for the
purpose of drying the material and products.
Characteristics:
1. Fine powder coating treatment; Inner SUS201 stainless steel.
2. Use new high temperature resistant long shaft motor
3 Turbine fan.
4. Silicone forced tight.
5. Over-temperature protection, super load automatic power system.
6. Circulation system: air force level cycle.
7. Heating system:PID+S.S.R.
8.The thermostat: PID microcomputer control, automatic constant temperature,
temperature quickly compensation function
9. Timer: temperature to time, when the power failure alarm indication.
10. According to customer demand matching glass window can be customized according
to customer specifications specified.
Provide different size drying oven, support customized
|
Model
|
YYE-001-100
|
YYE-001-225
|
YYE-001-500
|
YYE-001-800
|
YYE-001-800
|
|
Internal
dimensions
(mm)
|
400*500*500
|
500*600*750
|
700*800*900
|
800*1000*1000
|
1000*1000*1000
|
|
Overall
dimensions
(mm)
|
750*880*850
|
800*950*1000
|
1100*1100*1300
|
1100*1450*1400
|
1300*1400*1400
|
|
Temperature
range
|
Ambient ~+250 ºC; ( Ambient ~+400 ºC; Ambient ~+900 ºC)
|
|
Temperature
fluctuations
|
± 0.5 ºC
|
|
Temperature
deviation
|
± 2.0 ºC
|
|
Heating rate
|
About 6 ºC / min
|
|
Controller
|
Digital PID Temperature Controller
|
|
Temperature
Sensor
|
PTR Platinum Resistance PT100
|
|
Heating
system
|
Nichrome heater
|
|
Exterior
material
|
Steel Plate with Protective coating
|
|
Interior
material
|
SUS304 stainless steel
|
|
Timing
Function
|
0.1~999.9 (S,M,H) settable
|
