Low Noise Rain Test Chamber , Rain Test Equipment Machine High Precision

Low Noise Rain Test Chamber , Rain Test Equipment Machine High Precision

Description

This equipment can be use to inspect the ability of electrical product shell protect product and accessories to rain. This equipment can simulate drip water, spray water and splashing water environment with technical design. Intelligent control system and frequency conversion technology allow to adjust the rotate angle of sample support, angle of oscillating tube, and flow rate and flexing speed.

Technical parameters:comply to IPx1/2/3/4.standard requirements
1. Volume(mm):1000×1000×1000(D×W×H)
Dimension(MM): 1200×1500×1950(D×W×H)
2. Turntable Rotate speed(rpm):1 ~5adjustable,table diameter:500MM,can tilt 15°,height 200mm adjustable.
3. Oscillating tube radius(mm): 400
4. Oscillating tube flexing angle:45°, 90°, 180°(close to)
(1) Nozzles angle:120°(IPX3),180°(IPX4).
(2) Flexing angle:120°(IPX3),320°(IPX4)
5. Nozzles aperture(mm):φ0.4
6. Nozzles distance(mm):50
7. Flow rate per hole:0.07 L/min +5%
8. Pressure(Kpa):80-150
9. Oscillating tube flexing angle:max. ±180°(close to)
10. Flexing speed:IPX3 one complete oscillating (2*120°) being about 4S；IPX4 one complete oscillating (2*175°) being about 12S；Adjustable.
11. IP12:aperture 0.4MM, holes distribution 20*20MM.Drip area 800*800MM,drip height 120MM
(1)flow rate: 1+0.5mm/Min,3+0.5mm/Min or set(digital control technology)；

(2)IPX2 test, turntable tilt 15° and rotate automatically ensure four faces be rained 150s. (Auto or manual)

12. Test time:1-999,999min(set)

13. Pressure:80~150Kpa(adjustable)
14. Distance from sample to drip box is 200mm, after test, put sample in room temperature for 24 hours and check its function

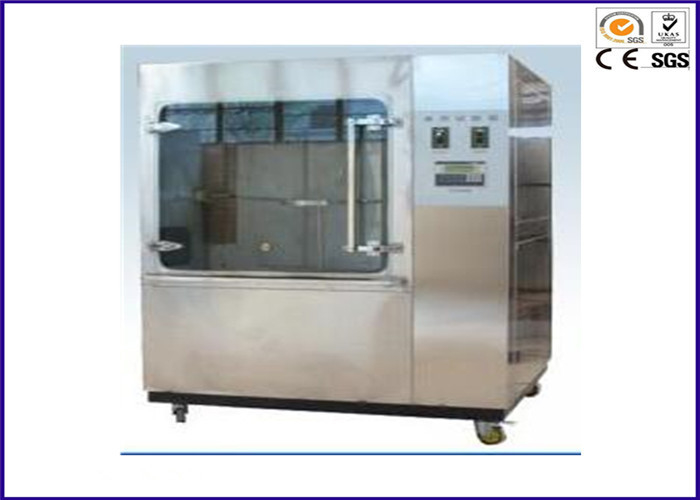

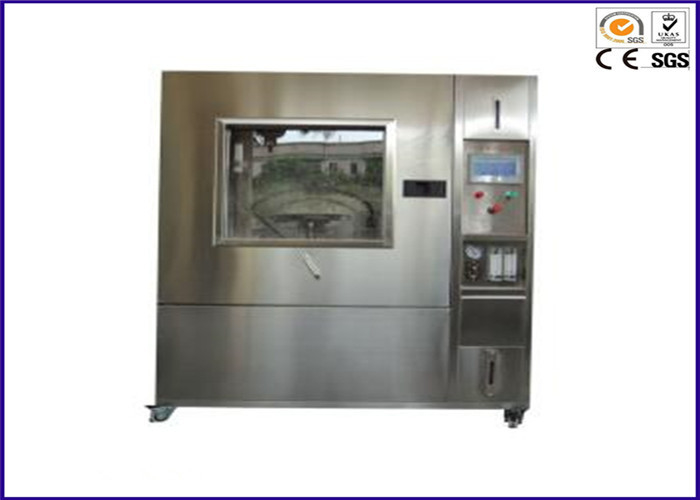

15. Stainless steel shell, tempered glass viewing window
16. Suitable turntable (sample support), rotate speed adjustable
17. Power:one set build in 12V /24V waterproof plug
18. Driver:Panasonic 750W servo motor (low noise, high precision)

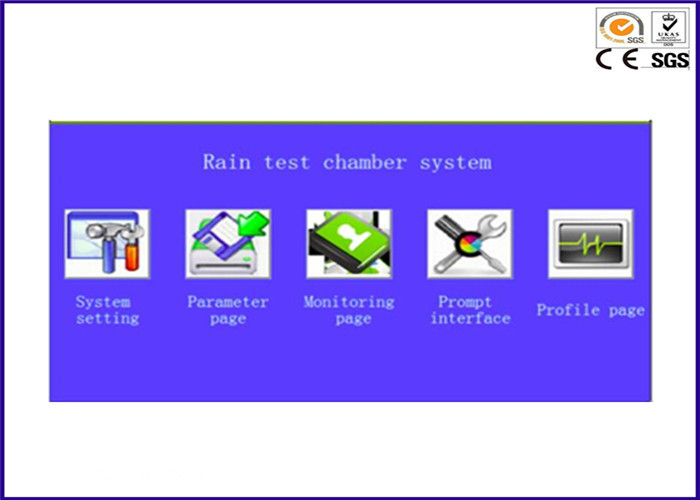

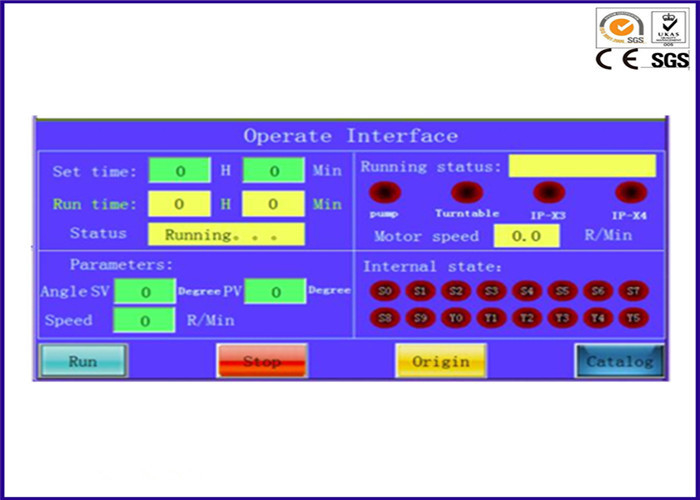

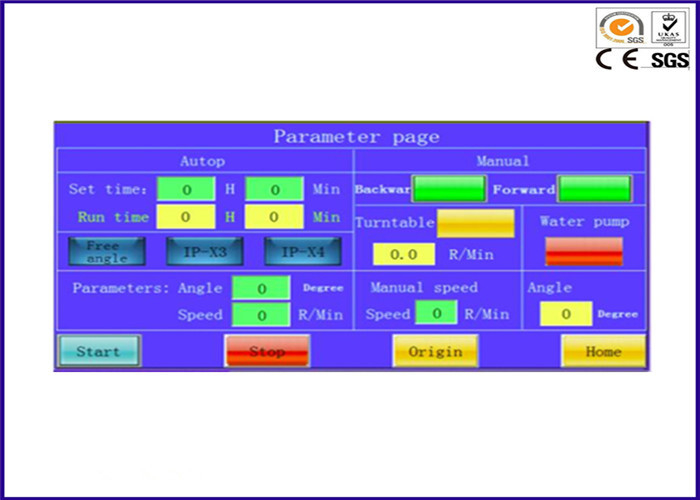

19. Control system:Teelong touchscreen control system
20. Power supply: 220V 50Hz
21. Reference standard: GB2423,38-90,GB4706.32-2004 IEC-5129

Structure:

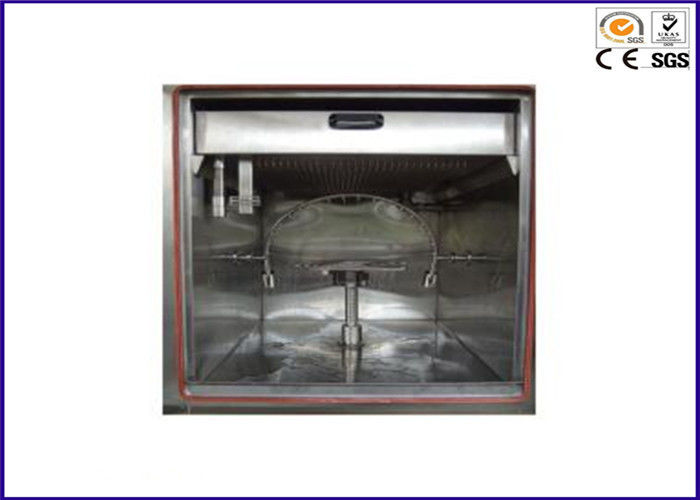

1. SUS304 liner
2. SUS304 shell
3. sample support is a rotating speed adjustable turntable

Protection:

Overload protection, short-circuit protection

Grounding protection

Water shortage protection

Alarm warning
