| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ISTA 1A, ASTM D999 |
| Model Number: | YY041 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10 |
| Packaging Details: | Plywood Case |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 2 sets per month |
| Unit Exchange: | Kgf, Ibf, N | Resolution: | 1/10,000 |
|---|---|---|---|
| Accuracy: | ±1% | Display: | LCD Display |
| Compression Space: | 100*100*100cm（or Designated） | Control System: | AC Converter, Gear, Motor |
| Test Speed: | 12～350mm/min | Volume: | 153×121×180cm |
| Power: | 1∮ AC 220V 5A | ||
| High Light: | LCD Display Carton Compression Testing Machine,220V 5A Carton Compression Testing Machine |
||

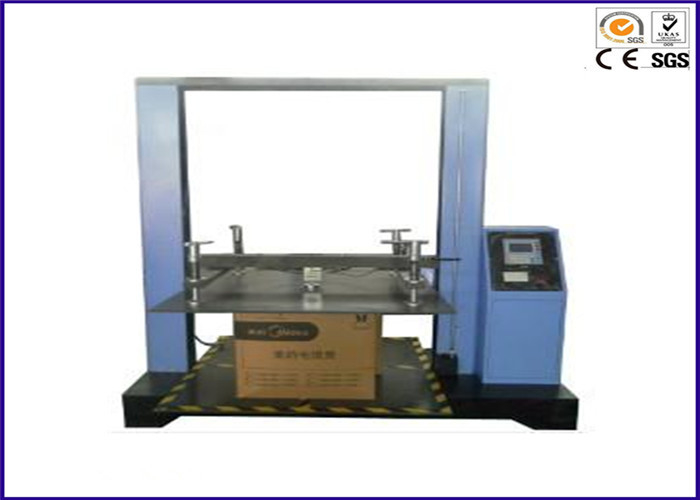

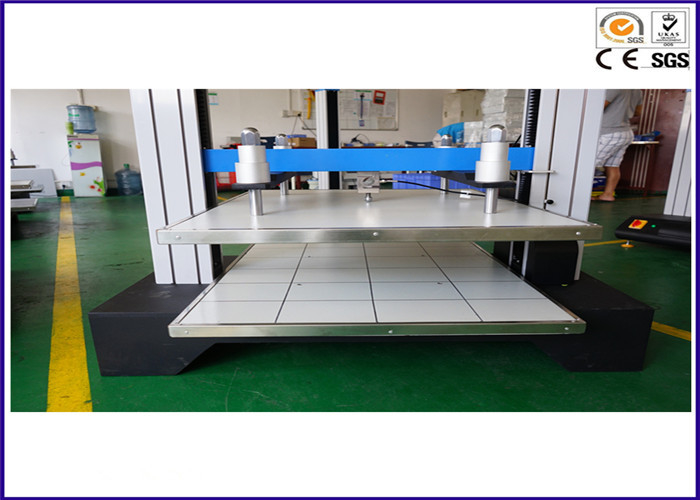

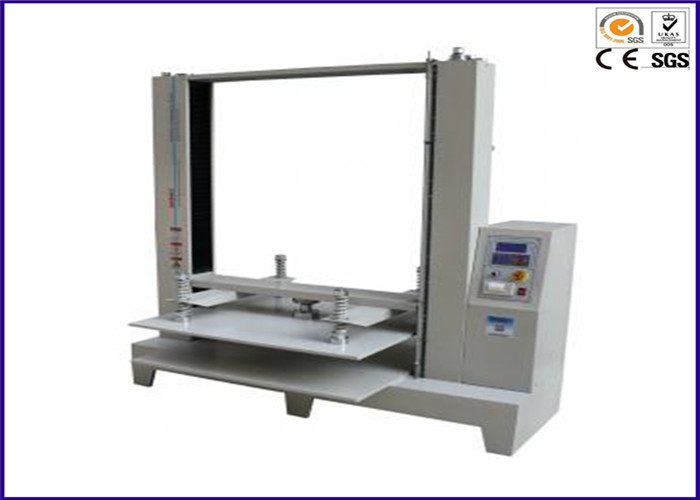

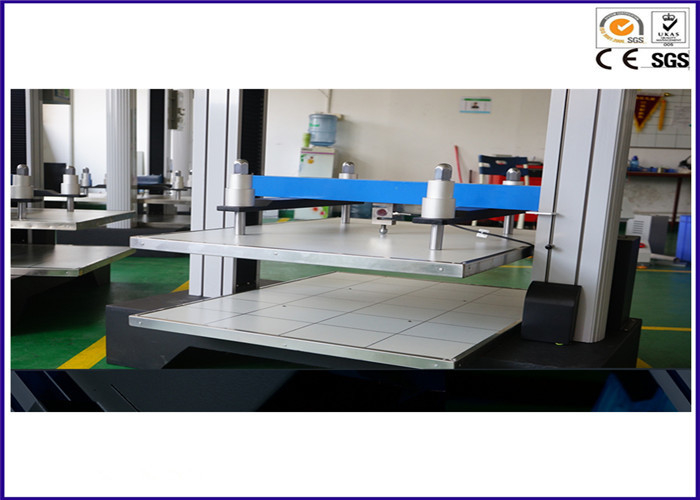

LCD Display 220V 5A Microcomputer Carton Resist Compression Test Machine
Product Summary:
Electronic carton compression testing machine used to test the compressive strength
of cartons, containers and other packaging structures, It adopts dynamic holding pressure technology,
simulates stacking test , in order to know the compressive strength and impact resistance capacity of
product packaging during transportation and stacking. The test results can used as the reference for
packaging design.
Features:
1.Taiwan AC frequency conversion motor drives, synchronous belt drive;
2. Adopts the gapless ball screw to lift, precise and stable;
3. With the U.S. high-precision explosion-proof type LOAD CELL;

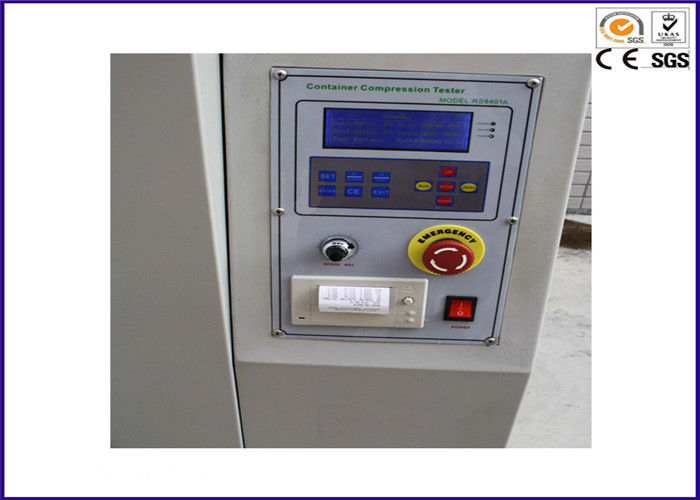

4. Measured using microcomputer control, dual-LCD display: compressive strength value , maximum
compressive strength value (maximum crushing strength), displacement, carton deformation (when
the carton crushing deformation), etc. 4 values
5. To adopt Japan high-precision measurement to measure displacement.
6. Automatically print the test data
Corresponding Standard:
[testing standard]:GB/T4857.4 GB/T4857.16 ISO2872,ASTM D642
manufacturing practices]:GB/T16491TAPPI-T804JIS-Z0212
Applicable Industry:
Electronic carton resist compression testing machine applicable to all factories and enterprises, technical
supervision departments,the commodity inspection authorities, research institutes and other departments
for testing and researching.
Technical Parameter:
| Model | YY041 |
| Unit exchange | kgf, Ibf, N |
| Resolution | 1/10,000 |
| Accuracy | ±1% |
| Display | LCD display |
| Compression space | 100*100*100cm(or designated) |
| Control system | AC converter, gear, Motor |
| Test speed | 12～350mm/min |
| Protector | Leakage protection, overload auto-shutdown, displacement limit protection |
| Printing |
Automatic printing the result, Print (maximum power, average, automatic abtained-point value, the breakpoints ratio, date) |
| Volume | 153×121×180cm |
| Power | 1∮ AC 220V 5A |
