| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ISTA 1A, ASTM D999 |
| Model Number: | YY043 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10 |
| Packaging Details: | Plywood Case |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 2 sets per month |
| Specimen Shape: | Parallelepiped Transport Package | Maximum Specimen Weight: | 600KG |
|---|---|---|---|
| Clamping Plate Size: | Height 48inch × Depth 48inch | Clamping Plate Adjustable Height: | 0~1000mm |
| Clamping Plate Adjustable Width: | 200~2000mm | Base Plate Dimension: | 2200 × 2100mm |
| Motor: | Panasonic Servo Motor | Accuracy: | Within ±5% |
| Power: | 380V/ 50Hz | ||
| High Light: | ISTA Package Clamping Force Tester,PLC Control Packaging Clamping Testing Instruments |
||

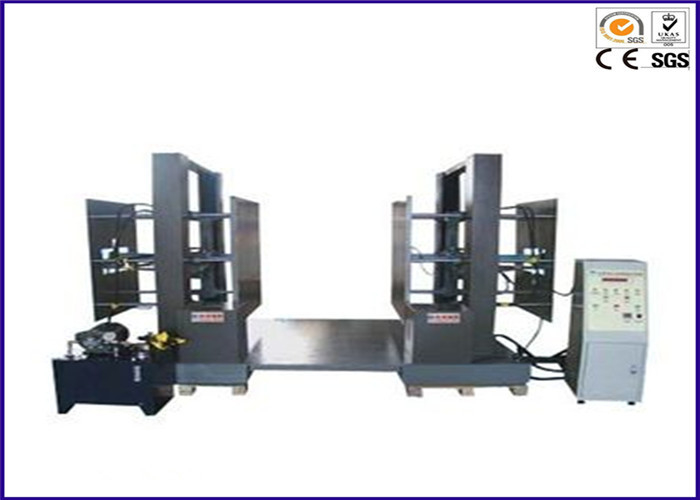

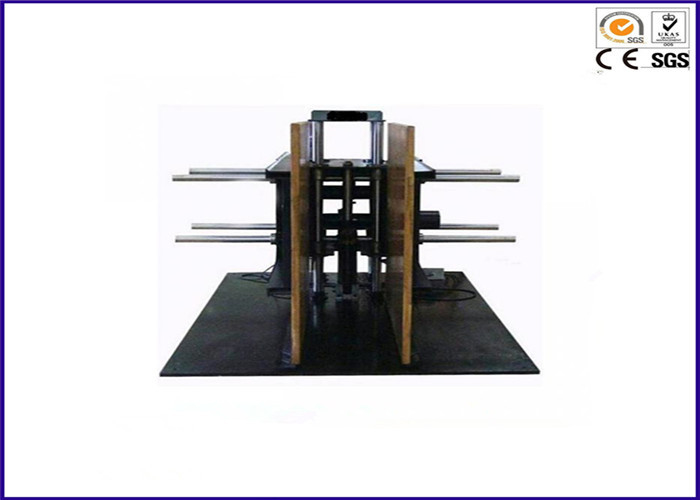

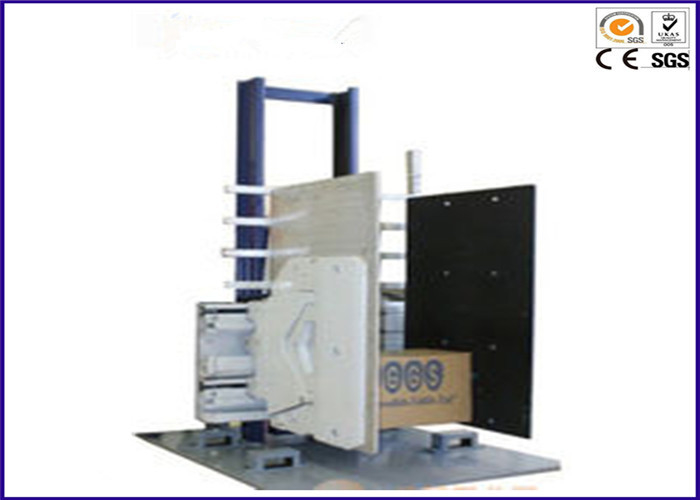

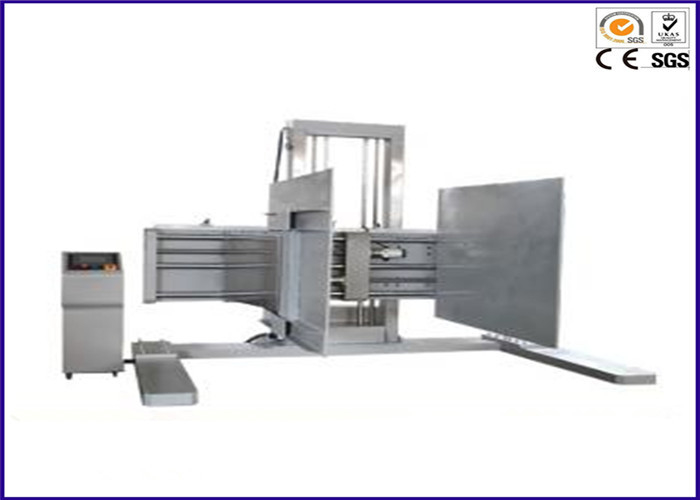

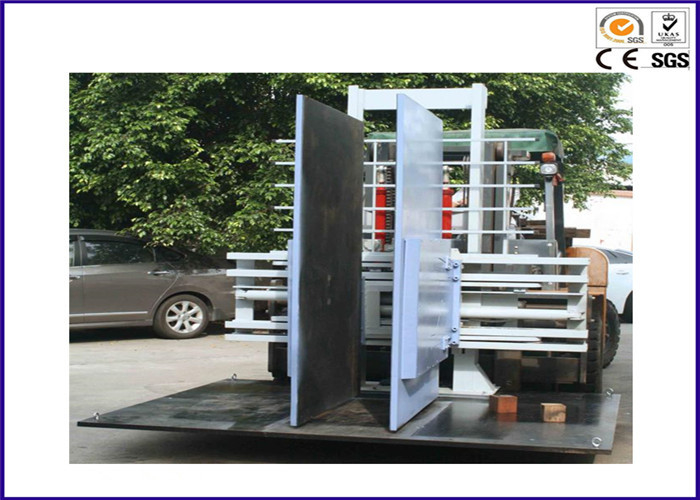

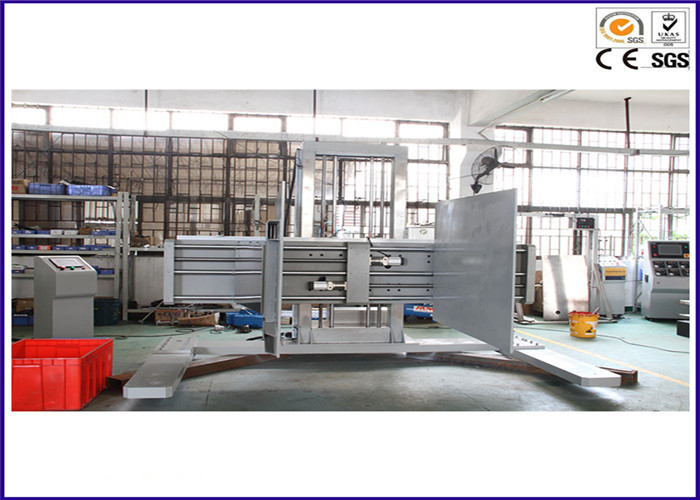

PLC Control ASTM D6055 Packaging Clamping Testing Instruments
Introduction
The ISTA Package Clamping Force Testing Machine is simulated the impact strength of packaging in the real circumstance of transportation, for example, the transportation of goods. This product is applied to the scientific research institutions, colleges, packaging technique test centers, packaging material manufacturers and foreign trade or transportation departments.
Design Standard
ASTM D642 ISTA 6- SAMS CLUB ISTA 3J
Technical Parameters
|
Specimen shape |
Parallelepiped transport package |
| Maximum specimen weight | 600kg |
|
Clamping pressure force |
According to the transport diagram on the test sample, the operator can add 400-3000Lb (adjustable) pressure force on the corresponding surface |
| Clamping plate size | Height 48inch × depth 48inch |
| Clamping plate adjustable height | 0~1000mm |
| Clamping plate adjustable width | 200~2000mm |
| Base plate dimension | 2200 × 2100mm |
| Motor | Panasonic Servo Motor |
| Accuracy | within ±5% |
| Clamping plate requirement | Make the two clamping boards flat and non-deform under work condition (2000 Pounds) and make clamping boards parallel and clamping board and land vertical. Clamping board is more thicker than 25mm. |
| Clamping force rate | 0.25-2.5mm/sec (according ISTA 6- SAMS CLUB |
| Force corrector | It displays force value and is used to calibrate clamping force. |
| Calibration accuracy | ±1% F.S |
| Device width | Less than 2.5m |
| Weight | around 800kg |
| Power | 380V/ 50Hz |
