| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ISTA 1A, ASTM D999 |
| Model Number: | YY045 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10 |
| Packaging Details: | Plywood Case |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 2 sets per month |
| Measuring Range: | Stage A: (50-8000)mN, Stage B: (8000-16000)mN | Tearing Arm Of Force: | 104±1mm |
|---|---|---|---|
| Tearing Initial Angle: | 27.5±0.5° | Tearing Distance: | 43±0.5mm |
| Clip Board Size: | 25×15mm | Specimen Size: | 50×63mm |
| Distance Between Clip Board Devices: | 2.8±0.3mm | Dimension: | 510×400×565mm |
| Working Power Supply AC 220V 50Hz Or Specified By UserWorking Power Supply AC 220V 50Hz Or Specified: | AC 220V 50Hz Or Specified By User | ||
| High Light: | AC 220V Paper Package Testing Equipment,GBT 455 Packaging Testing Instruments,Package Test Machine ISO 1974 |
||

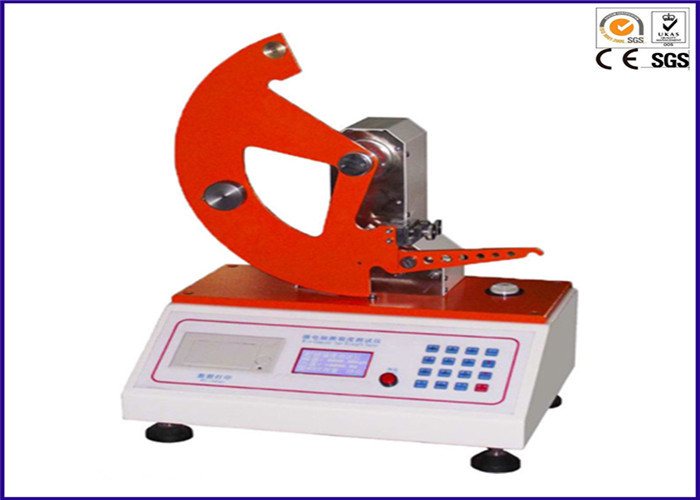

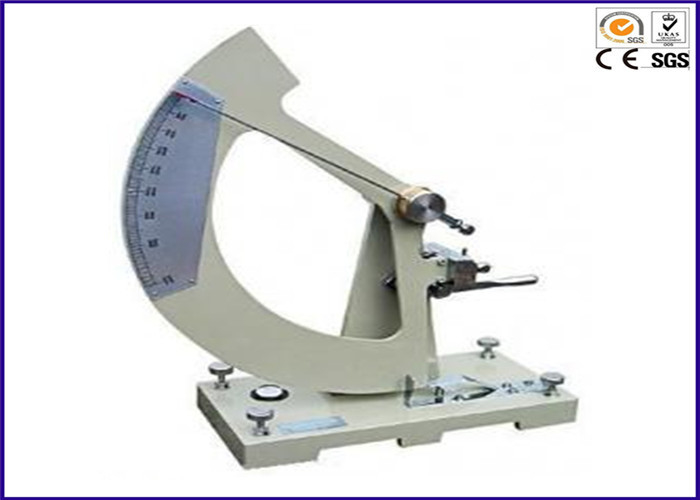

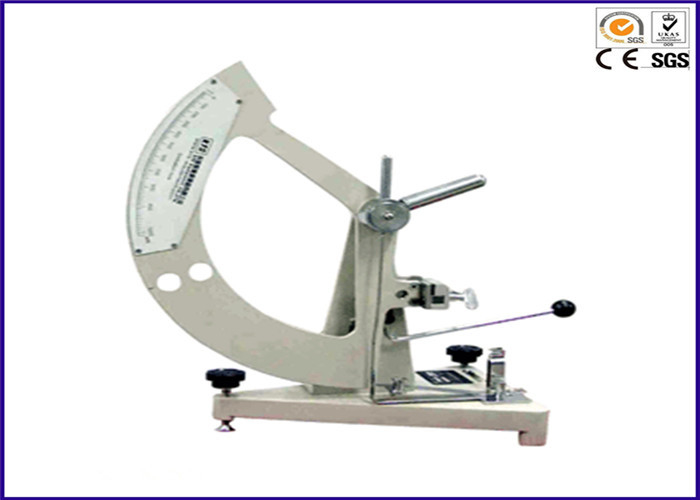

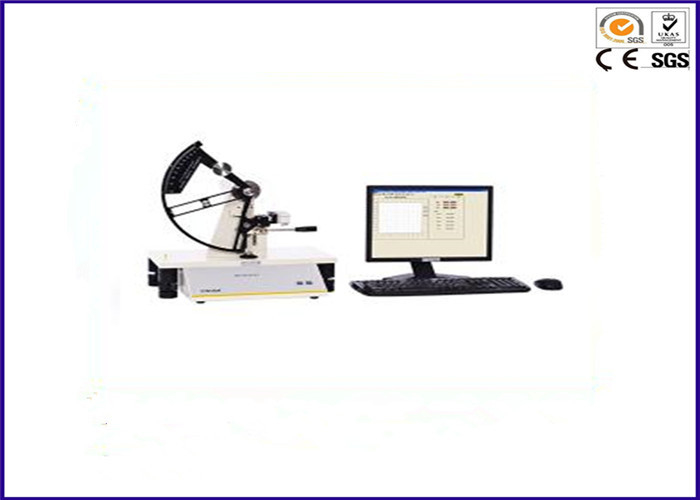

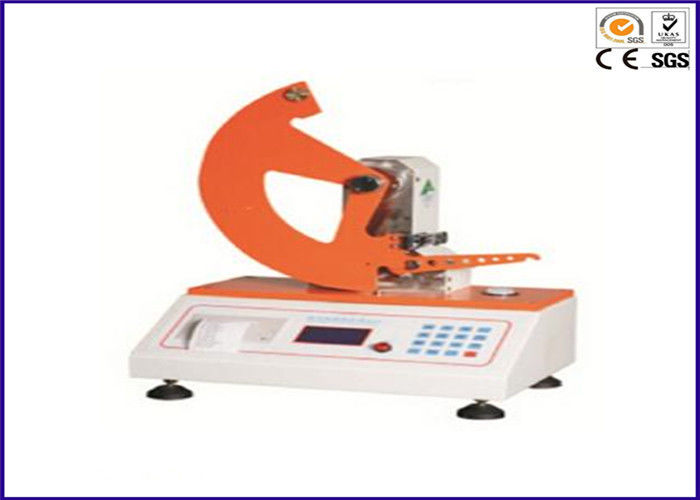

AC 220V Tear Resistant Paper Package Testing Equipment GBT 455 High Temperature
Purpose:
Tearing resistance tester is used for testing tearing resistance of paper and paper board, it is also used for testing tearing resistance of flaky composite materials like textile, leather and thin film.
2. Product features
(1) Compact structure design to ensure the elegant appearance, also easy to maintain
(2) The configuration is very flexible, to reach different functions
(3) Precision production, to ensure the high accuracy
3. Product application
The tester can be applied in testing paper tearing strength. If change the configuration, it can be used to test other materials, like plastic, chemical fiber, metal wire, metal foil and so on.
4. Technical standards
ISO 1974:1990 <Paper -- Determination of tearing resistance (Elmendorf method)>
GB/T 10739-2002 <Paper, board and pulps – Standard atmosphere for conditioning and testing>
ISO 186:1994 <Paper and board - Sampling to determine average quality>
GB 455.1 <Paper - Determination of tearing>
Specification:
| Model | YY045 |
| Measuring range | Stage A: (50-8000)mN, Stage B: (8000-16000)mN |
| Tearing arm of force | 104±1mm |
| Tearing initial angle | 27.5±0.5° |
| Tearing distance | 43±0.5mm |
| Clip board size | 25×15mm |
| Specimen size | 50×63mm |
| Distance between clip board devices | 2.8±0.3mm |
| Working environment | temperature:(0~35)℃, humidity＜85% |
| Dimension | 510×400×565mm |
| Temperature | (20±10)℃, humidity＜85% |
| Working power supply | AC 220V 50Hz or specified by user |
FAQ
1. who are we?
We are based in Guangdong, China, start from 2018,sell to Southeast Asia(11.00%),Eastern Asia(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),Northern Europe(9.00%),South Asia(9.00%),North America(7.00%),South America(7.00%),Western Europe(7.00%),Eastern Europe(6.00%),Mid East(6.00%),Oceania(5.00%),Central America(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Testing Equipment/Tensile Testing Machine/Environmental Test Chamber/Fire Testing Equipment,Induction Heating Machine
4. why should you buy from us not from other suppliers?
We are a high-tech enterprise which is specialized in developing and manufacturing Fire Testing Equipment, Building Material Fire Tester, Wire and Cable Fire Tester, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment and etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
Certification
Customer Evaluation
Contact Person: Yannis Ye
Tel: +86-13825723571
