| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ISTA 1A, ASTM D999 |
| Model Number: | YY047 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10 |
| Packaging Details: | Plywood Case |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 2 sets per month |
| Max Test Load: | 100kg | Frequency Range: | 60-300 Rpm |
|---|---|---|---|
| Amplitude Range: | 25.4 Mm (1 Inch) | Vibration Mode: | Roundtrip |
| Simulation Speed: | 25~40 Km/h | Woke Table Size: | 1000×1200 Mm |
| Outside Dimension (L×W×H): | 1255×1070×660 Mm | Power Capacity: | 1 HP |
| Weight: | 125kg | ||
| High Light: | CE Vibration Package Testing Machine,Transport Vibration Test Equipment |
||

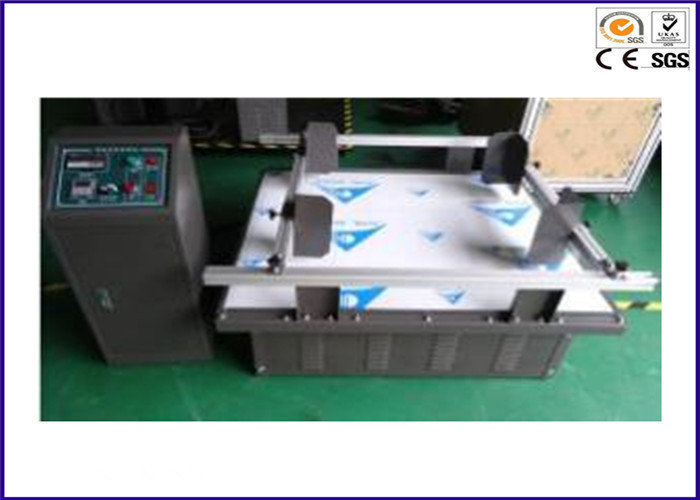

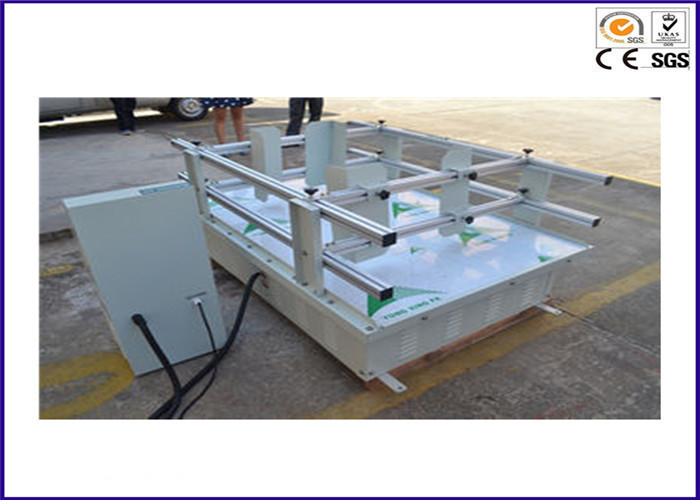

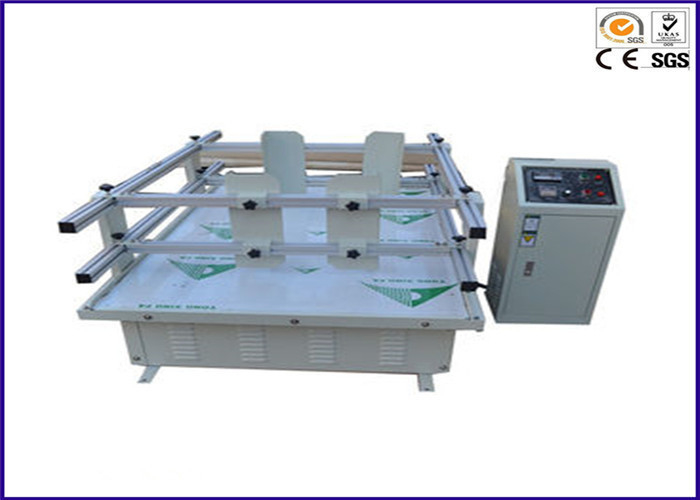

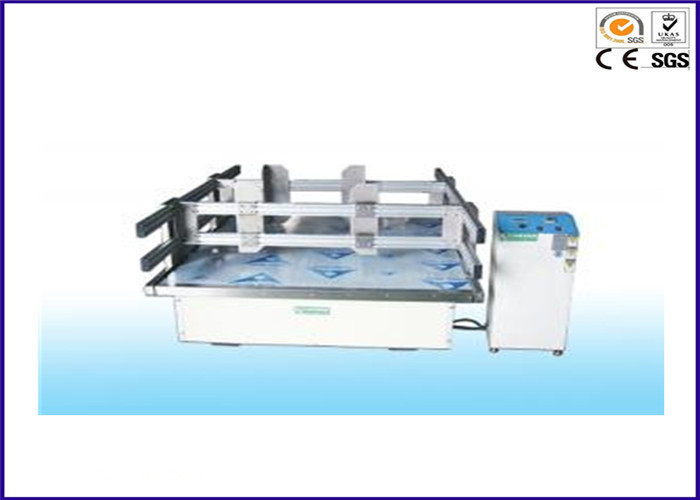

25~40 km/h Simulation Transportation Vibration Package Testing Machine
Description:
Transport vibration test equipment is used to check all kinds of specific load products to bear actual road condition ability during auto transportation process, simulate the effect on products according to the actual working condition in the lab, basing on this, access or confirm the products package.
Features:
1. Precise design and manufacture, beautiful out appearance, serious silent working;
2. Outer use stainless steel plate bear table to make it use without rust for a long time;
3. The around plate and control cabinet are use cold-roll steel plate baking finish;
4. The pedestal of machine is use heave steel channel with damping device, low working noise;
5. The pedestal equip with fixed hole site, it can be positioned the machine by anchoring when at installation site;
6. Adjustable material fixed grip, can meet with difference sizes of products testing
7. Use special cam mechanism to imitate horse racing type vibration;
8. Synchronization noise belt transmission, low working noise;
9. The control cabinet and testing table are separated type
Application:
Transport vibration test equipment is used in toy, electronic, furniture, gift, ceramics, package and other products.
Standards: The machine was designed according to GB/T4857.2;EN71, ANSI, UL,ISO2247, ASTM999, ISTA 1A standards of international transport.
Our product advantage:
(1) CE certifiate
(2) 15-30days fast delivery
(3) 12month warranty
(4) High precise instrument with imported brand parts
(5) Strong export standard plywood case
Specifications:
| Simulation Transportation Vibration Package Testing Machine | |
| Max Test Load | 100 Kg |
| Frequency Range | 60-300 rpm |
| Amplitude Range | 25.4 mm (1 inch) |
| Vibration Mode | Roundtrip |
| Simulation Speed | 25~40 km/h |
| Woke Table Size | 1000×1200 mm |
| Outside Dimension (L×W×H) | 1255×1070×660 mm |
| Power Capacity | 1 HP |
| Weight | 125 Kg |
| Environmental Conditions | Temperature: 5~40°c; Related Humidity: <85% |
| Speed Mode | DC converter or AC Frequency Control |
| Power | 220V, 50 Hz |
