| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ISO2403 BS3181 ASTMD1448; ISO1136 BS3183 ASTMD1282A |
| Model Number: | YY054 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10 |
| Packaging Details: | Plywood Box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
| Rotation Speed: | 20±3 R/min | Tumbler: | Inner Diameter:200mm,depth:145mm |
|---|---|---|---|
| Pinned Shelf: | 8pcs | Pinned Bar: | 9pcs,external Diameter:8mm,depth:127mm |
| Standard: | ASTM D5362、JIS L1058、 M&S P21A | Specimen Dimension: | 215mmx115mm |
| Whole Dimension: | 47x38x38cm | Weight(approx): | 38kg |
| Power Supply: | AC 220V 50HZ 3A | ||
| High Light: | 20r/min Bean Bag Snag Tester,Knitted Fabric Bean Bag Snag Tester,Scratch Resistance Bean Bag Snag Tester |
||

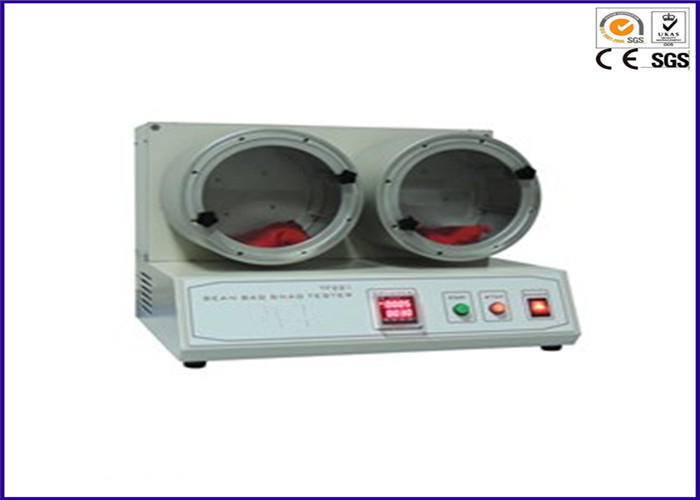

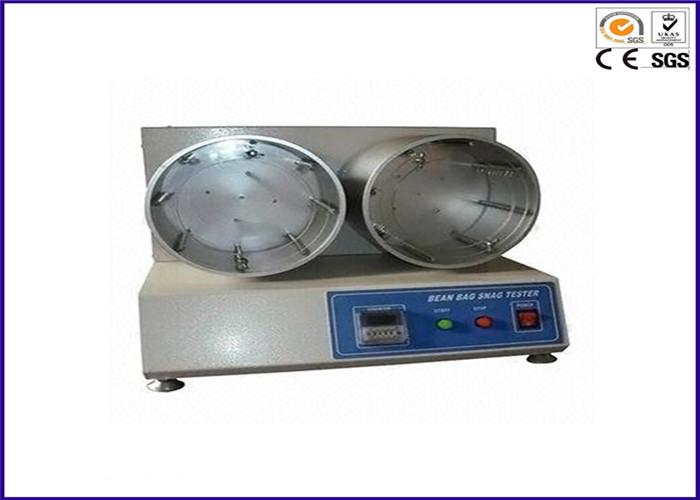

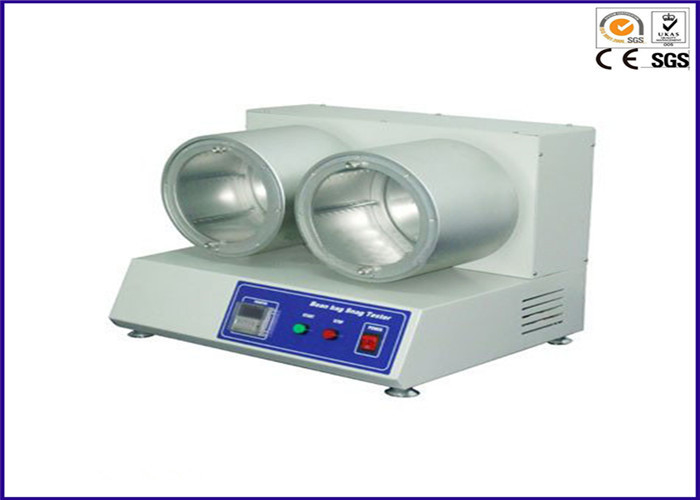

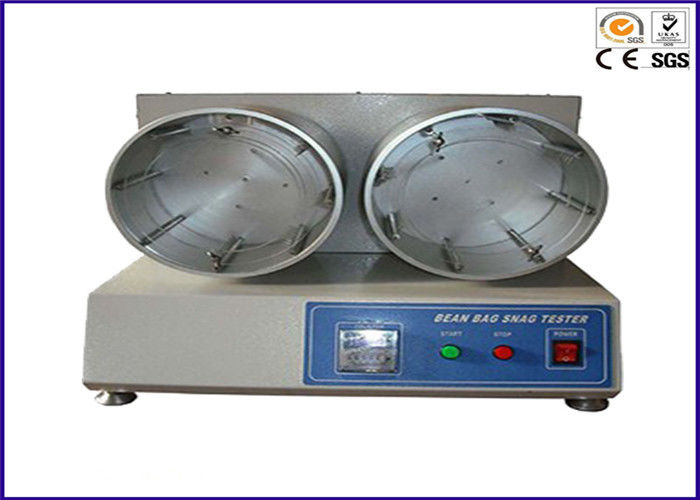

M&S P21A Bean Bag Snag Tester Test The Scratch Resistance Of Knitted Fabric
Description:
Bean Bag Snag Tester. To determine the snagging and picking characteristics of knitted fabrics by tumbling fabrics pillows containing a weighted bean bag within two separate test cylinders provided with eight pinned bars, rotating at 20RPM for 100 revolution. Provided with predetermined electronic counter.
Bean Bag Snag Tester, to determine the snagging resistance of knitted and woven fabrics by tumbling fabrics pillows, Bean bag Snag tester complies with ASTM D5362, JIS L1058, etc.
Features:
1. With transparent plexiglass security cover, protect the operator and easy to observe testing process;
2. Drum being made from Anti-rust material for long time use
3. LED display and the counter can be preset;
4. Automatically stopped by the counter after predetermined revolution reach.
5. Wide international accepted testing method
Main technical parameters:
| Rotation speed | 20±3 r/min |
| Tumbler | Inner diameter:200mm,depth:145mm |
| Pinned shelf | 8pcs |
| Pinned bar | 9pcs,external diameter:8mm,depth:127mm |
| Nails | Bulged length 10 mm ,spacing 12 mm ,the angle of vertical direction 30°±5 |
| Specimen dimension | 215mmx115mm |
| Whole dimension | 47x38x38cm |
| Weight(approx) | 38kg |
| Power supply | AC 220V 50HZ 3A |
Standard: ASTM D5362,JIS L1058, M&S P21A
Accessories: specimen plate 115x215mmx21 pcs, Bean bag 2pcs
Optional purchase consumables: scale, cabinet for scale
