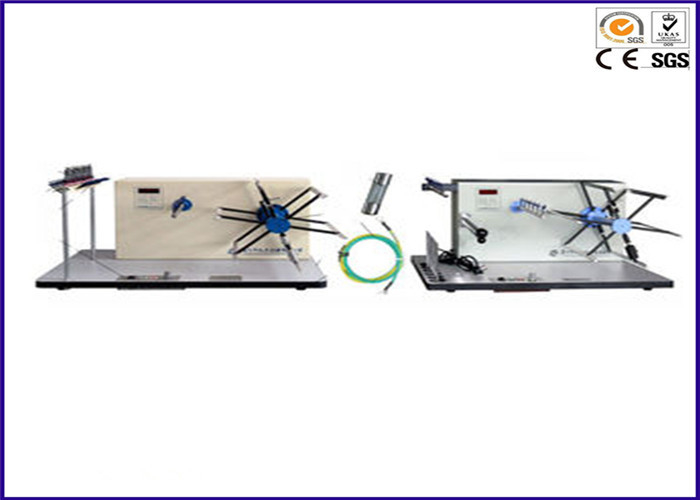

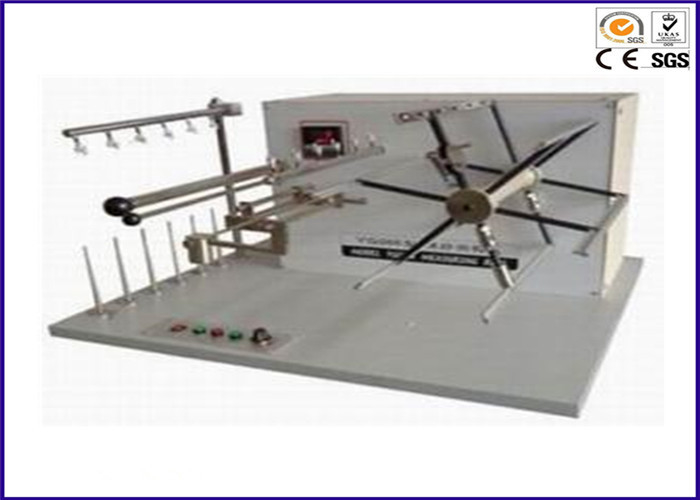

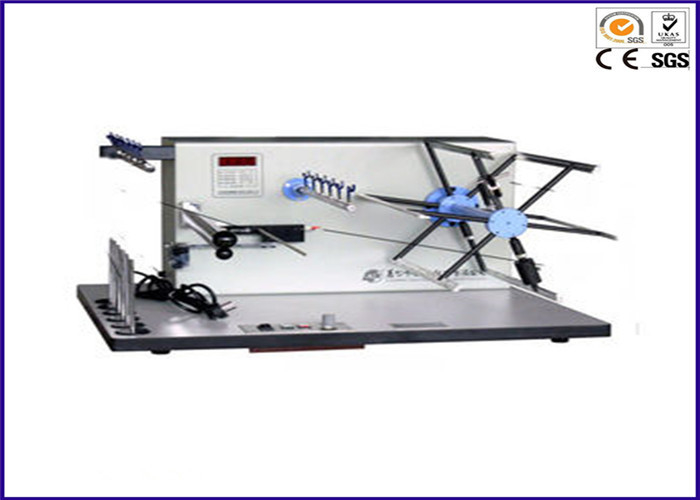

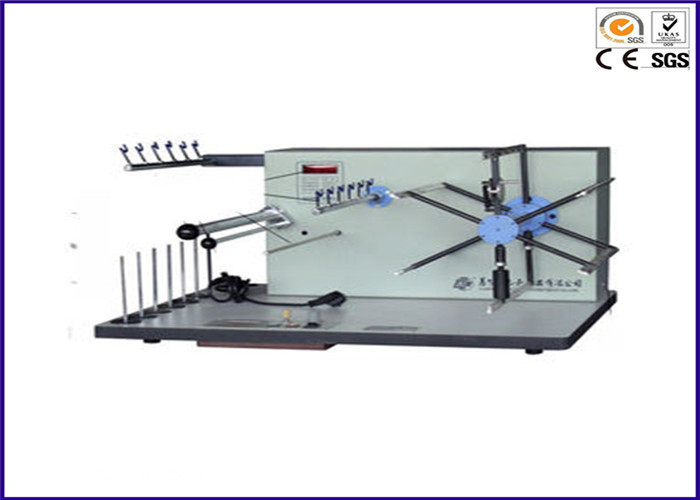

Automatic Electronic Yarn Reel Tester and Wrap Reel Tester

Automatic Electronic Yarn Reel Tester and Wrap Reel Tester

  • Automatic Electronic Yarn Reel Tester and Wrap Reel Tester
  • Automatic Electronic Yarn Reel Tester and Wrap Reel Tester
  • Automatic Electronic Yarn Reel Tester and Wrap Reel Tester
  • Automatic Electronic Yarn Reel Tester and Wrap Reel Tester
Automatic Electronic Yarn Reel Tester and Wrap Reel Tester
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: ISO2403 BS3181 ASTMD1448; ISO1136 BS3183 ASTMD1282A
Model Number: YY060
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $10
Packaging Details: Plywood Box
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Instrument Weight: 50kg Reel Circumference: 1000mm (metric System)
Rev Of Reel: 25-300 RPM (numeric Pre-settable) Interval Of Spindle: 65cm
Number Of Wrap: 2~9999 Rev(pre-settable) Programmable Stop: 1~9 Rev(pre-settable)
Traveling Reciprocating Distance: 35mm±1mm Reeling Pre-tension: 0~100cN (pre-settable)
Instrument Size: 780×660×480mm
High Light:

ASTM D1907 Electronic Yarn Reel Tester

,

Textile Testing Equipment ASTMD1282A

Textile Testing Equipment Automatic Electronic Yarn Reel Tester and Wrap Reel Tester



Usage:

Electronic Wrap Reel is designed to produce skeins of yarn of a pre-determined length and number of turns for count and/or strength testing. Complete with yarn package stand and pre-tension device, fitted with pre-determined counter.



Standards:

ASTM D1907 Textile Testing Equipment Standard Test Method for Linear Density of Yarn (Yarn Number) by the Skein Method

ASTM D2260 Tables of Conversion Factors and Equivalent Yarn Numbers Measured in Various Numbering Systems

ISO 2060 Textiles -- Yarn from packages -- Determination of linear density (mass per unit length) by the skein method

BS 2010 Method for determination of the linear density of yarns from packages

DIN 53830 Testing of textiles; determination of linear density of single and plied yarns (reel method)



Characteristics:
1. Electronic Wrap Reel Use MCU to control unit, allow numeric programming parameter (such as speed, bobbin number, reel presetting parameters are pre-settable), and auto tracking speed of reel, have two start up model (hard startup, soft start up), all make unit work consistently and stably;

2. Precision DC speed regulating motor with synchromesh belt makes precisely positioning;

3. Numeric speed controlling panel, make unit work consistently and stably;

4. Two optional start up mode (hard start up, soft start up), do not break yarn when start up;

5. Electronic limit trips, total rev number and user programmable stops;

6. Closed-loop controlled and speed tracking system, Ensure to keep even speed when Voltage is variable.



Specifications:

Model YY060
Reel circumference 1000mm (metric system)
Rev of reel 25-300 RPM (numeric pre-settable)
Interval of spindle 65cm
Number of wrap 2~9999 Rev(pre-settable)
Programmable stop 1~9 rev(pre-settable)
Traveling reciprocating distance 35mm±1mm
Reeling pre-tension 0~100cN (pre-settable)
Instrument Size 780×660×480mm
Instrument weight 50kg



Features:

1. Timing cog belt of direct transmission, No-lap skid

2. Countint by Optocoupler

3. Import electronic tension sensors, dynamic display the around yarn tension, no additional tension impact (B type)
