| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ISO2403 BS3181 ASTMD1448; ISO1136 BS3183 ASTMD1282A |
| Model Number: | YY075 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10 |
| Packaging Details: | Plywood Box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
| Trolley Diameter: | Top RoundФ162.5mm , Base RoundФ160mm | Trolley Width: | 80mm |
|---|---|---|---|
| Trolley Speed: | 70rpm | Counter LCD: | LCD，0～999,999 |
| Dimension: | 45×55×57cm | Weight: | 5kg |
| Power: | 1∮ AC220V，3A | Standards: | DIN-3415, SATRAPM123 |
| High Light: | 70rpm Footwear Testing Equipment,SATRAPM123 Footwear Testing Equipment,220V Footwear Testing Equipment |
||

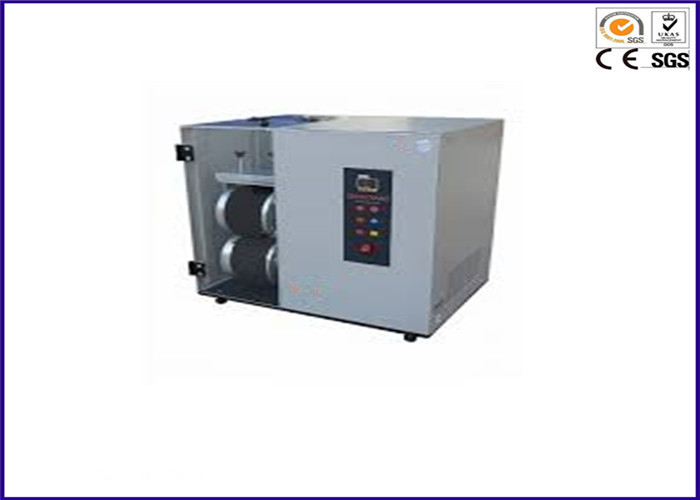

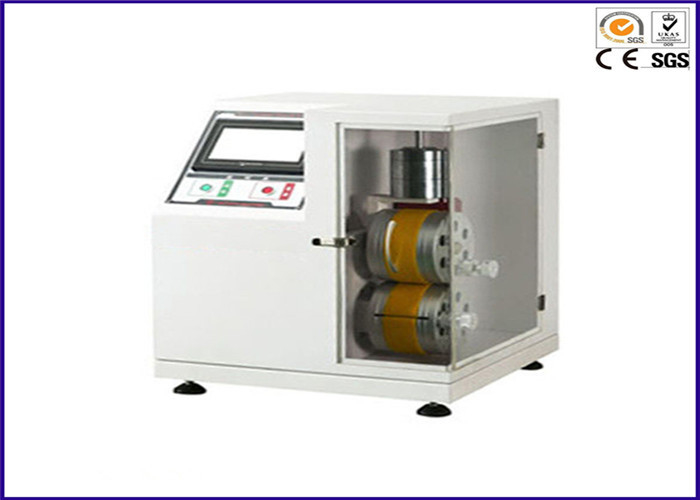

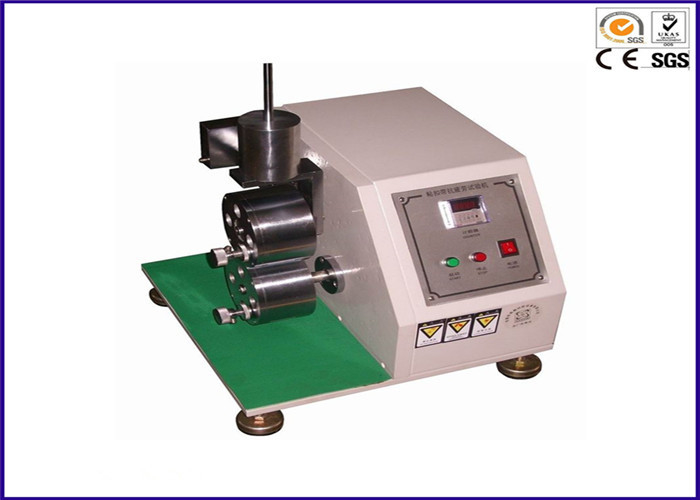

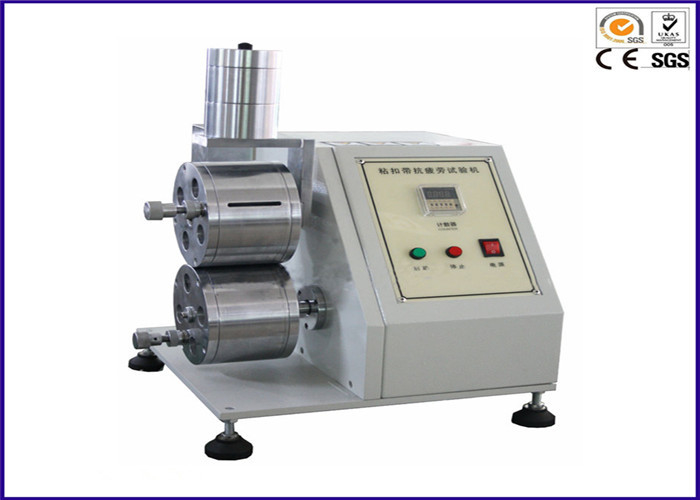

SATRA TM 103 Footwear Testing Equipment Digital Magic Tape Velcro Fatigue Tester
Description:
This machine is suitable for detecting the binding capacity of the hook and loop fastener ( Velcro tape) after the repeated stripping and fitting action.
In use Velcro repeated stripping and fit the action, so after a certain number of times, then rolling sample to the weight of the wheel itself, so that uniform fit measured adhesion forces with some of the adhesion strength.
Parameters:
1. Trolley diameter:top roundФ162.5mm , base roundФ160mm
2. Trolley Width:80mm
3. Trolley speed:72rpm
4. Counter:LCD,0～999,999
5. Dimension:45×55×57cm
6. Weight:5 kg
7. Power:1∮ AC220V,3A
8. Standards :DIN-3415, SATRAPM123
| Trolley diameter | top roundФ162.5mm , base roundФ160mm |
| Trolley Width | 80mm |
| Trolley speed | 72rpm |
| Counter | LCD,0～999,999 |
| Dimension | 45×55×57cm |
| Weight | 5 kg |
| Power | 1∮ AC220V,3A |
| Standards | DIN-3415, SATRAPM123 |
