| Place of Origin: | CHINA |
| Brand Name: | YUYANG |
| Certification: | CE |
| Model Number: | YYE017 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 7-30 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5 Pcs Per Month |
| Product Name: | Environmental Test Chamber | Aspirator Flowing Quantity: | 0~6L/min |
|---|---|---|---|
| Air Pressure: | 86~106kpa | External Size: | 170 * 150 * 190cm (approx.) |
| Power Supply: | AC380V, 50/60Hz, Three Phase | Weight: | 400kg |
| High Light: | Dustproof Environmental Test Equipment,6L/Min Environmental Test Chamber,Dustproof Environmental Test Chamber |
||

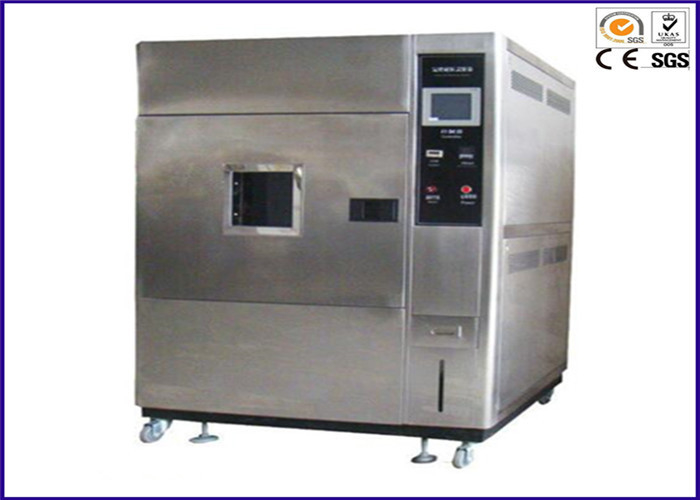

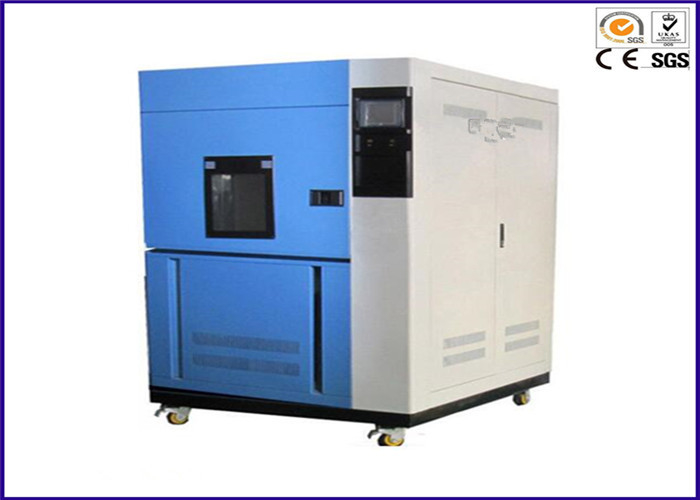

CE Sand And Dust Environmental Test Chamber Dustproof Flow 6L/Min
Description:
The Microcomputer Controlled LED Light Sand and Dust Testing Machine is used for dust-proof and dust resistance experiments for various automobile parts. The main test parts include lights, instrumentation, safety belt, seat regulator, electric dust cover, steering gear shaft and locks, testing it’s dust resistance and movement safety.
Features:
1. Formed using CNC machining box, nice shape, and no reaction by the handle, easy to operate.
2. Imported high grade stainless steel inner tank (SUS304) mirror panels, use of A3 steel box outside the gall spray, increasing the appearance of the texture and cleanliness.
3. Equipment containing dust vertical circulation of air, dust can be reused for testing; device itself has a good sealing performance, test, laboratory test can clearly observe the situation; device equipped with a vacuum system to meet the needs test; equipment dust the bottom of the device can be replaced.
4. Large observation window with bright lights to keep the box, and use of tempered glass embedded heating element, at any time a clear observation box condition.
5. Test with 50mm diameter holes for the external test power line or signal line.
Specifications:
| Inner chamber size | 120 * 120 * 120cm |
| External size | 170 * 150 * 190cm (approx.) |
| Air pressure | 86~106kpa |
| Studio temperature | RT~60'C, adjustable |
| Material: | Stainless Steel |
| Weight | 400kg |
| Power supply | AC380V, 50/60Hz, three phase |
