| Place of Origin: | CHINA |
| Brand Name: | YUYANG |
| Certification: | CE |
| Model Number: | YYE023 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 7-30 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5 Pcs Per Month |
| Product Name: | Environmental Test Chamber | Model: | YY1022 |
|---|---|---|---|
| Test Compartment Temperature Control: | 30~70°C;Resolution: 0.1 °C | Xenon Arc Lamp Power: | 2.5KW |
| Power Supply: | AC220V±5% 50Hz 10KW | Sample Holder Rotation Speed: | 1rpm Can Be Set |
| High Light: | 2.5KW Xenon Aging Test Chamber,Rubber Xenon Aging Test Chamber,0.5L/Min Weathering Test Equipment |
||

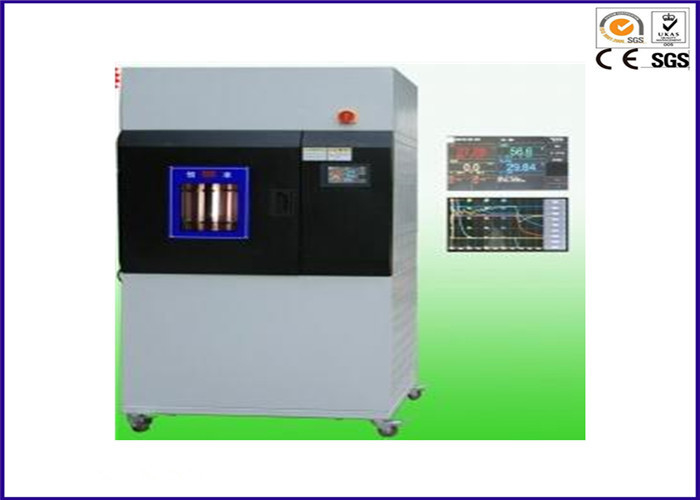

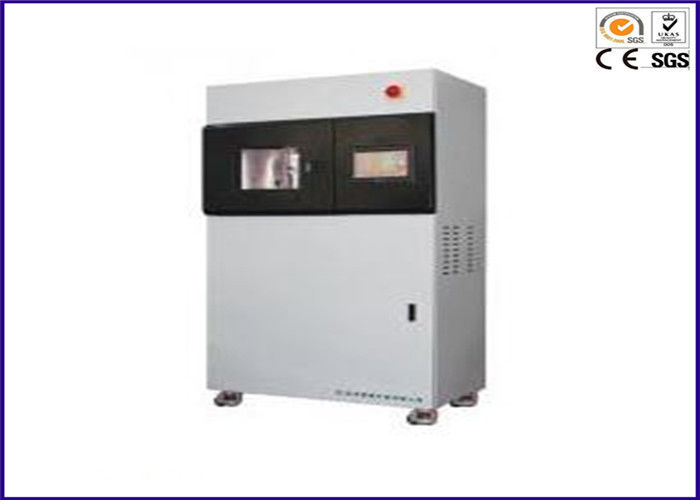

Xenon Weathering Aging Test Chamber High Precision Environmental Test Chamber
Xenon weatherometer is widely used in rubber, plastics, paints, coatings, chemical, automotive, textile and other industries products and materials for simulation of solar radiation, light color fastness to perspiration fastness and light aging test, through the simulation of light, rain, spray, alternating dark and light, temperature and humidity climate conditions, to determine the material products fading, aging, turn back, transmittance, peeling, hard, softening property changes.
Specifications:
| Model | YY1022 |
| Test compartment temperature control | 30~70°C;Resolution: 0.1 °C |
| Humidity control test | humidity:10-75% RH, humidity fluctuations ± 3% RH; dark cycle :10-95% RH, humidity fluctuate ± 5% RH; |
| Time control experiments | 0min~999:59h,Accuracy ± 1min |
| Irradiance control | 1.00-1.30W/m2/420nm Accuracy: ± 0.02 W/m2/420nm;digital set, automatic compensation. |
| Control and monitoring wavelength | Optional 340nm, 420nm ,300-400nm ,300-800nm band |
| Xenon arc lamp power | 2.5KW |
| Sample holder rotation speed | 1rpm can be set |
| Diameter distribution of sampleclip | φ500mm |
| Maximum exposure area | 3500cm2 |
| Sample holder can be mountedwith the number of dimensions | 145 × 75mm model 25; 145 × 45mm model 35 |
| Timing of each sample holder respectively | ≤10000h |
| Sunlight cycle | ≤10000h |
| Spray cycle | ≤10000h |
| Blackboard temperature range | (BPT) 30-90°C±2°C;(BST) 35-95°C±2°C |
| Display control | 10.4-inch touch screen |
| Data Output | Digital color display (A4 print in English optional) |
| Sample holder type | Single |
| External circulating waterrequirements | Water pressure :140-1345kPa Flow: 1.0L/min |
| Requirements within therecycled water | High water flow: 0.5L/min |
| Power supply | AC220V±5% 50Hz 10KW |
| Dimensions | 1250×830×1800mm |
| Weight | 350kg |
