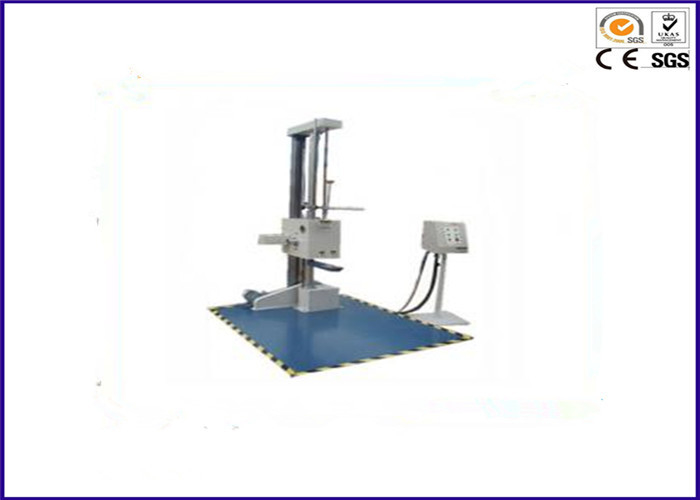

ISTA Multipurpose Free Falling Dart Impact Tester , 220V Package Drop Test Machine

ISTA Multipurpose Free Falling Dart Impact Tester , 220V Package Drop Test Machine

  • ISTA Multipurpose Free Falling Dart Impact Tester , 220V Package Drop Test Machine
  • ISTA Multipurpose Free Falling Dart Impact Tester , 220V Package Drop Test Machine
ISTA Multipurpose Free Falling Dart Impact Tester , 220V Package Drop Test Machine
Product Details:
Place of Origin: CHINA
Brand Name: YUYANG
Certification: CE
Model Number: YYP0012C
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 7-30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 Pcs Per Month
Contact Now
Detailed Product Description
Product Name: Package Testing Equipment Size Of The Swing: 200×150×8mm
Dropping Deviation: ±10mm Deviation Of Dropping Horizon: Less Than 1°
Outside Size: (L×W×H): 1700×1200×2500mm Chamber Size: (L×W×H): 350×350×1100mm
Weight: 550kg Power Supply: AC Single Phase, 220V
High Light:

Single Phase Falling Dart Impact Tester

,

220V Falling Dart Impact Tester

,

ISTA Package Drop Test Machine

Simulate Transportation Free Drop ISTA Packaging Testing Equipment



Description:



Simulate Transportation Free Drop ISTA Packaging Testing Equipment is used to test the damage degree when the package is dropped, and test the impact resistance of the package during transportation, for example, to test the surface, edge and angle of the package through free-drop method.





Features:





1. Outside material: advanced paint coat

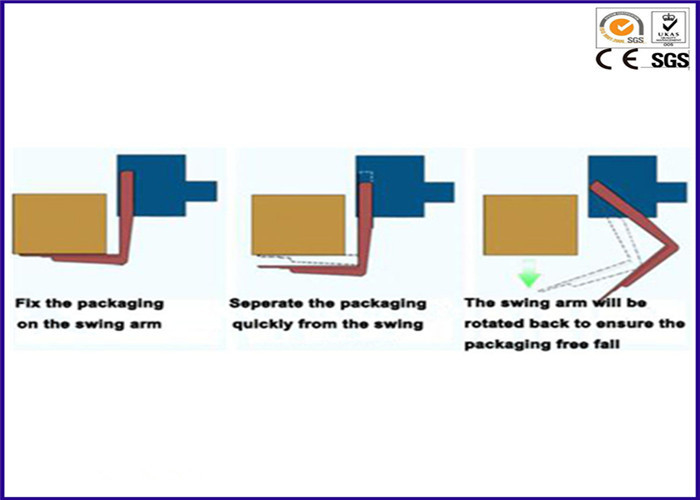

2. Power system: drive device (imported motor + speed reducer +Axel+ upper and lower limitation + spring +electromagnet)+ dropping device(dropping standard board +magnet + safety spacing push rod + automatic return back + digital alto-meter +encoder + hydraulic pressure buffering device)

3. Control system: adopting electromagnet sensor control, the interface is easy to operate, high degree automatic control

4. Safety device: upper and lower limitation device, automatic off-power device if electricity leakage occurs

fferent size package to test the package edges, sides and corners.
5. Micro adjusting control, can rapidly set to the needed testing height.









Dropping height 300mm-1500mm( can be adjustable)
Display method: digital display
Maximum weight of the package 60kg
Maximum size of the package (L×W×H) 1000×700×1000mm
Size of the dropping panel (L×W)1700×1400mm
Size of the swing 200×150×8mm
Dropping deviation ±10mm





























ISTA Multipurpose Free Falling Dart Impact Tester , 220V Package Drop Test Machine 0ISTA Multipurpose Free Falling Dart Impact Tester , 220V Package Drop Test Machine 1
