| Place of Origin: | CHINA |
| Brand Name: | YUYANG |
| Certification: | CE |
| Model Number: | YYP002C |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 7-30 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5 Pcs Per Month |
| Product Name: | Computer Control Carton Resist Compression Test | Overall Dimension: | W1800 X D1000X H2000mm |
|---|---|---|---|
| Controller Size: | W300 X D300 X H1100mm | Stop Mode: | Set Limits Of Security, Urgent Stop Key, Programable Force And Elongation Setting, Specimen Damage Sensing |
| Test Velocity: | 0.1-100mm/min(Key Input) | Travel: | 1200mm, Full-Travel Parameter Available To Be Displayed |
| Gross Weight: | Approx.1000Kg | Power: | 3P AC 380V 50HZ |
| High Light: | 100mm/min Package Testing Equipment,3P Package Testing Equipment,2000Kg Corrugated Box Testing Equipment |
||

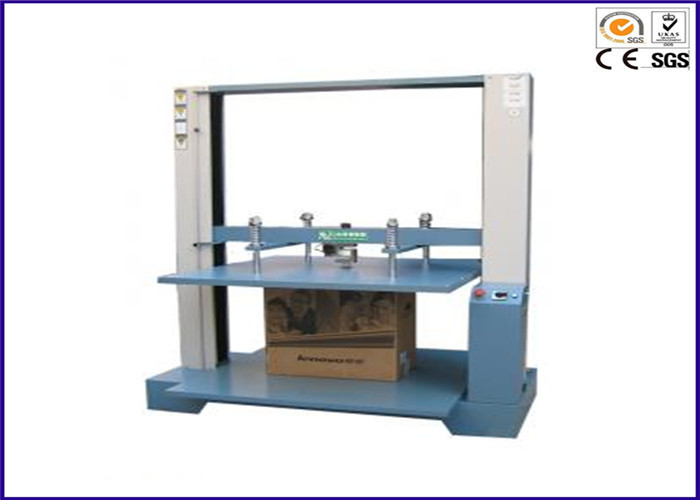

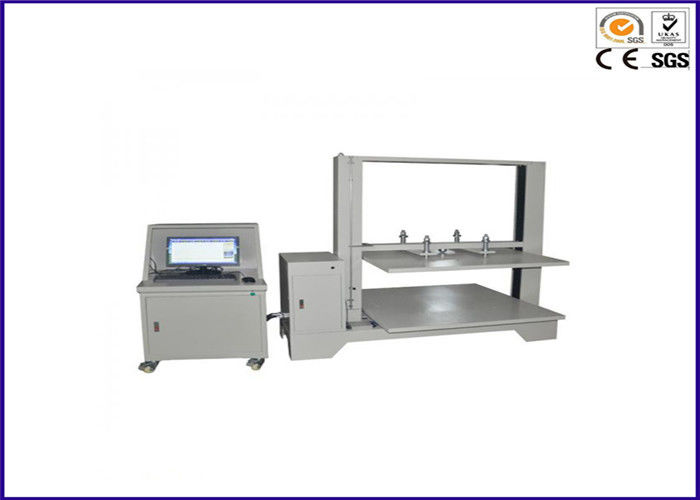

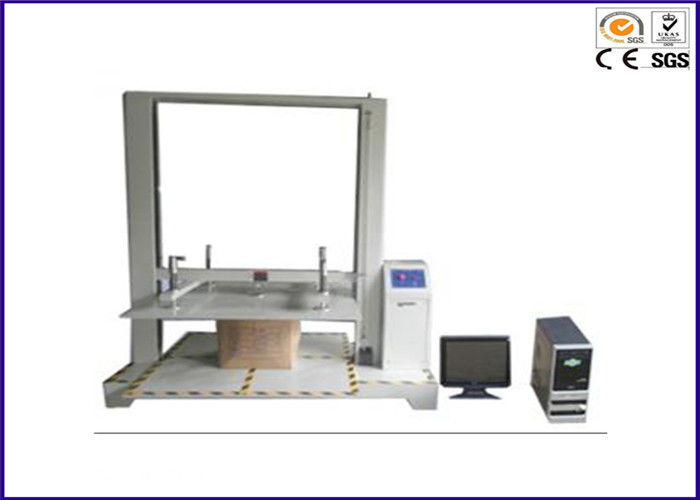

Computer Control Carton Resist Compression Test Machine Package Testing Equipment
3P Corrugated Box Package Testing Equipment 2000Kg Load Computerized
This Carton Compression Tester is designed to carry out entire packing container compression for various medium-size corrugated box as well as other material compression strength. The packing container is termed as food package, cosmetic package, beer package.
Place testing specimen on a place between two pressing plate and apply pressing force, then record loading and travel of pressing plate till testing specimen broken, maximum loading or pressing plate reach prescribed value.
Features:
■Designed with high precise USA loading cell as well as PULSE COMMAND control method assures high accuracy & enables a testing velocity control range at 1~100 mm/min;
■Software Interface & dialog is available for displaying & controlling of testing projects such as constant speed, constant travel, constant loading(retention time available to set), constant loading increasing rate, constant stress increasing rate, constant strain increasing rate as well as multiple-stage control modes to meet various testing demands;
■Available to plan and edit the testing report form, testing data can be displayed directly on main interface or dialog;
■Available for testing curve data comparison of multiple-curve through methods of translation or comparison simultaneously;
■Designed with multiple-measurement units which is available for free to shift from one to another & automatic return function;
■Designed with automatic zoom-in to size the graphics in software interface dialog;
■Available for compressing resistant test, bending resistance testing, Continuous compressing resistant test as well as fatigue test;
■Higher sensitivity enables rapid responses such as instantaneous determination of crushing and automatic shutdown.
| Tester Name | COMPUTERIZED COMPRESSION TESTER |
| Tester Model | YY1414 |
| Max. Load | 2000Kg |
| Detecting Method | Loading Cell |
| Loading Measuring Accuracy | ≤ 0.5% |
| Force Data Resolution | 1/250000 |
| Displacement Resolution | 1/1000 |
| Displacement Data Resolution | ≤ 0.5% |
| Display Method | Full Computer display and testing control to display & print force curve & reporting sheet. |
| Test Travel | 1200mm |
