Name: Rubber / Plastic Tensile Strength Testing Machine 5KN 500mm/Min Adjustable
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY1311
Price: 14000 USD
Availability: InStock

Home > products > Tensile Testing Machine >

Rubber / Plastic Tensile Strength Testing Machine 5KN 500mm/Min Adjustable

500mm/Min Tensile Strength Testing Machine

5KN Tensile Strength Testing Machine

ODM Tensile Strength Tester

Place of Origin:

China

Brand Name:

YUYANG

Certification:

QB/T 2918-2007

Model Number:

YY1311

Request A Quote

Rubber / Plastic Tensile Strength Testing Machine 5KN 500mm/Min Adjustable

Product Details

Load Resolution:

1/50,000 (U25)

Load Accuracy:

±0.5%

Stroke Resolution:

Stroke：0.00125 Mm / Extensometer：0.025 Mm

Test Speed:

5~500 Mm/min Adjustable

Sample Rate:

16 Times/sec

Max Load:

5KN, 10KN, 20KN

Accurate Grade:

1% / 0.5%

Range Of Testing Speed:

0.001~200mm/min ; 500mm/min (1000mm/min)

Accuracy Of Displacement Measurement: Tolerance:

±0.5%/ Tolerance: ±0.2%

Customized Support:

OEM, ODM, OBM, Software Reengineering

Highlight:

500mm/Min Tensile Strength Testing Machine

5KN Tensile Strength Testing Machine

ODM Tensile Strength Tester

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$14000

Packaging Details

plywood case

Payment Terms

Western Union, T/T, L/C,Paypal

Supply Ability

3 pcs /week

Computer Control Tensile Strength Test Machine For Yarn / Textile / Plastic

Get Best Price

Video

YYL-006 Mechanical Equipment Automatic Electronic Tensile 100kn 50kn Hydraulic Universal Testing Machine For Geocell Straps

Get Best Price

Video

AC220V YYL-001 10kn 20kn 50kn 100kn 200kn 300kn Universal Tensile Strength Testing Machine For Terminal Tensile Testing

Get Best Price

Video

600kn Laboratory Rock Bolt Test Instrument For Anchorage Rebar Tensile Testing 10kn 100kn Universal Testing Machine 2ton 5ton 10 Ton Plastic Rubber Steel Ropes Metal Material Utm Tensile Str

Get Best Price

+86-13825729807

markting@yuyangtest.com

86-769-26622869

Contact Now

Product Description

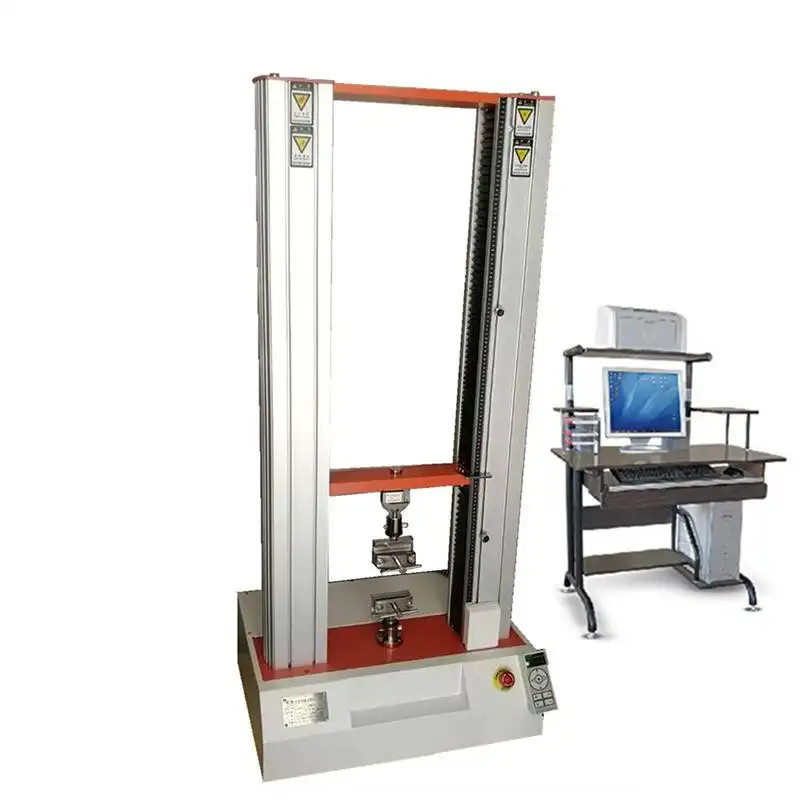

Tensile Strength Testing Machine 5KN For Rubber/Plastic

Description:

YUYANG series`tensile strength testers are widely applied to determining elongation,

compression, flexing,tear,peeling,shear force,adhesive force,etc.of finished or semifinished

products such as rubber,plastic, footwear, leathers, metal,wire, paqer, timber,etc.

Specification:

Model	YY1310
Capacity (optional)	100, 200, 500 N; 1, 2, 5 kN
Unit (Switchable)	kgf, gf, Ton, lbf, N, kN or by user`s definition
Load Resolution	1/50,000 (U25)
Load Accuracy	±0.5%
Stroke (exclude the grips)	1000 mm
Method of Speed Input	knob
Test Speed	5~500 mm/min adjustable
Stroke Resolution	stroke:0.00125 mm / extensometer:0.025 mm
Sample Rate	16 times/sec
Indicator	print able, display elongation vatue, test values, max. value & break values.
Motor	AC servo motor
Dimension (W×D×H)	55 × 35× 177 cm
Weight (approx.)	115 kg (excluding control cabinet and grips)
Power	1∮, 220V, 5A or specified by user 50HZ/60HZ

The accessories such as the different grips, elongation measuring-devices... etc. are

equipped according to the requirements specified in the contract; our sales

representative will also give the proper suggestions to our customer beforehand.
