| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ISO2403 BS3181 ASTMD1448; ISO1136 BS3183 ASTMD1282A |
| Model Number: | YY074 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10 |
| Packaging Details: | Plywood Box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
| Detection Method: | Magnetic Induction | Belt Speed: | 25m/min |
|---|---|---|---|
| Belt Operation Mode Once Needle Detected: | Rewind, Rewind And Falling Down, Stop (Optional) | Power: | Electronic |
| Sensitivity: | 1.2mm | Rated Output: | Appr140W |
| Alarm Method: | Buzzer Lamp | Weight: | Appr160Kg |
| High Light: | 25m/min Garment Needle Detector,Magnetic Induction Garment Needle Detector,25m/min Textile Needle Detector |
||

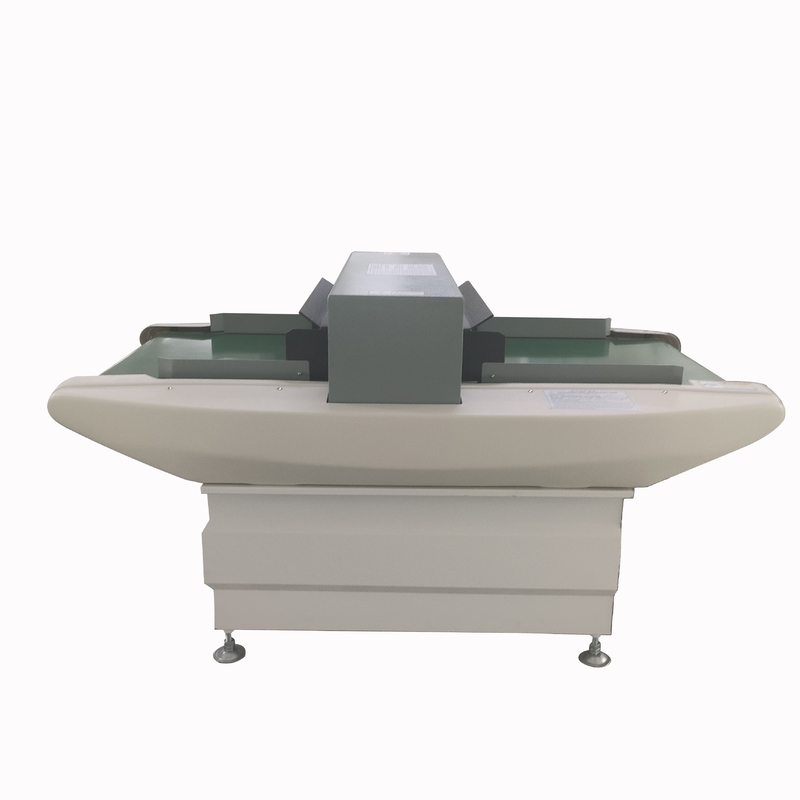

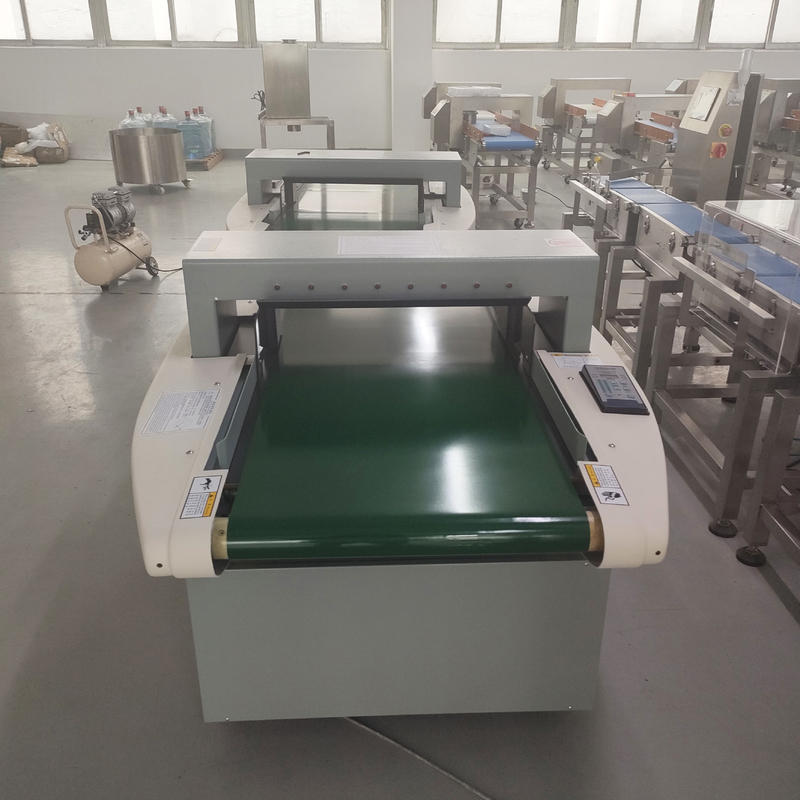

Needle Textile Industry Checking Machine And Metal Detector For Garment
Description
The working principle of needle detector is that the upper and lower probes receive and process signals first, and then the strong electric integrated block, sensitivity control integrated block, signal receiving integrated block and signal output integrated block to complete the detection work.
When the goods through the needle testing machine have broken needle or contain iron metal and other substances, needle testing machine is not allowed to pass, detect iron metal needle testing machine will automatically alarm, and the conveyor belt back to the original position of goods; From and let inspectors according to the position of the broken needle signal indicator, can quickly find the broken needle goods, on the contrary, if there is no detection of metal goods can be through the needle machine channel. In accordance with the provisions of the export textile must go through the broken needle detection, through the needle detection machine broken needle qualified goods can be exported.
Products that pass can be packaged for export, otherwise they will be blocked at the customs
Characteristics
1. The newly developed high integrated chip of needle detector ensures high performance and reliability;
2. Needle detector has high sensitivity and anti-interference ability;
3. The needle detector adopts DIGITAL signal processing (DSP) from data acquisition to motor control, which is highly intelligent;
4. Needle testing machine is simple and easy to use, automatic data processing and saving, can keep the setting of shutdown every time boot;
5. High frequency switching power supply developed by needle testing machine, strong adaptability;
6. Needle testing machine adopts integrated design, optimize product design, reduce the number of components, by computer to replace the complex electronic components, so that the failure rate is doubled down;
7. Needle testing machine is controlled by computer precisely to prolong the life of the motor;
8. Needle inspection machine accurate counting, qualified, defective, total;
9. Needle testing machine will stop automatically after ten years of unmanned operation;
10. Needle testing machine can set the product testing time;
11. Needle detector with manual and automatic control two options, the operation is more convenient and flexible.
| Weight | Appr160Kg |
| Alarm method | Buzzer Lamp |
| Rated output | Appr140W |
| Sensitivity | 1.2mm |
| Power | Electronic |
| Belt operation mode once needle detected | Rewind, rewind and falling down, stop (Optional) |
| Belt speed | 25m/min |
| Detection method | Magnetic induction |
