Electronic Computer Tensile Testing Machine Universal Clamp Strength Detect

Electronic Computer Tensile Testing Machine Universal Clamp Strength Detect

Electronic Computer Tensile Testing Machine Universal Clamp Strength Detect
Electronic Computer Tensile Testing Machine Universal Clamp Strength Detect
Electronic Computer Tensile Testing Machine Universal Clamp Strength Detect
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: ISO, CE
Model Number: YY094
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: wooden box
Delivery Time: 5-30 days
Payment Terms: T/T, L/C
Supply Ability: 200 pcs per month
Contact Now
Detailed Product Description
Product Name: Tensile Testing Machine Frame Capacity: 60N~20KN
Test Speed: 0.1~500mm/min Accuracy Level: 0.5%
Power: 1-100%(60N-20000N) Application: Metal & Non-metal
Highest Sensitivity: 150kg Max. Load Force: 20KN
Host Power:Host Power: 1KW,AC220V±10%,50HZ H.s Code: 9031809090
High Light:

20KN Tensile Testing Machine

,

500mm/min Tensile Testing Machine

,

Clamp Strength Universal Tensile Machine

Electronic Computer Tensile Testing Machine Universal Clamp Strength Detect



Applications



A. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.

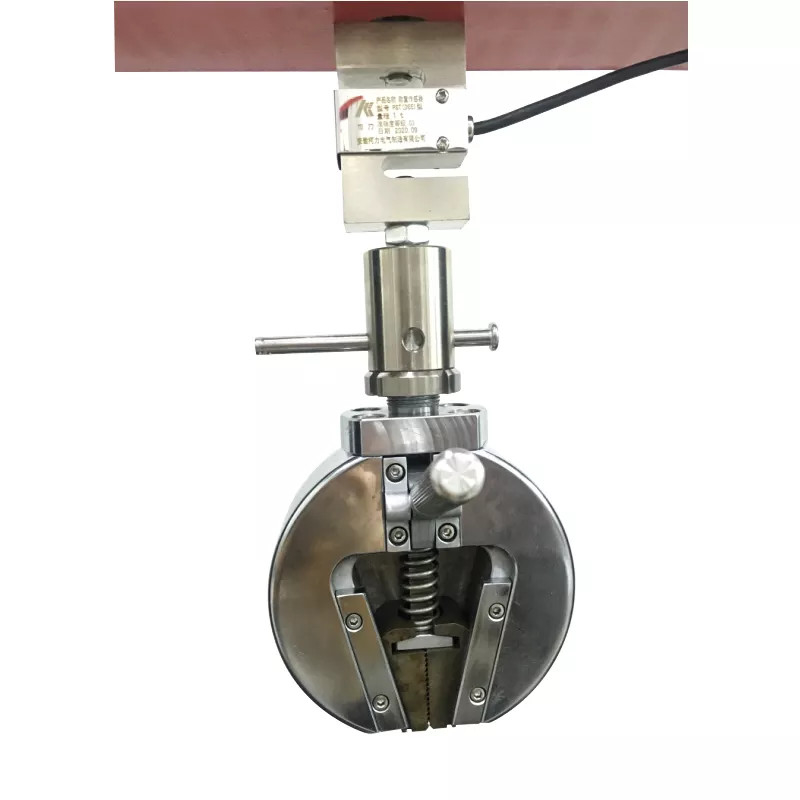

B. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.

C. Deformation under defined load: Test deformation under defined load of tested sample

D. Load under defined deformation: Test load under defined deformation of tested sample

Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.



Standard


Including but not limited to ASTM,JIS,CE, ISO,EN,BS EN,SAE,FTM...etc.



General test Project



Tensile stress, tensile strength, tearing strength, breaking elongation, fixed extension stress, constant stress elongation, constant stress value, tearing strength, arbitrary point force value, elongation at any point, pulling force, adhesion and peak value, pressure test, shear stripping force test, bending test, pulling force puncture test.



Technical characteristics



1. Imported motor, low noise and precise control

2. Computer LCD display, Chinese menu, HP printer

3. During the test, the tensile time and the maximum test force are displayed in real time; and can be displayed.

4. In the 0-50N measurement range, the accuracy can reach 0.001N and the resolution is 0.001N. It is professional for the measurement of the corresponding parameters of waterproof materials.

5. High degree of automation, the instrument design uses advanced domestic and foreign devices, single chip microcomputer for information sensing, with automatic reset, data memory, overload protection

6. Get measurement results directly: After completing a set of tests, you can easily directly display the measurement results and print statistical reports, including averages, standard deviations and coefficients of variation

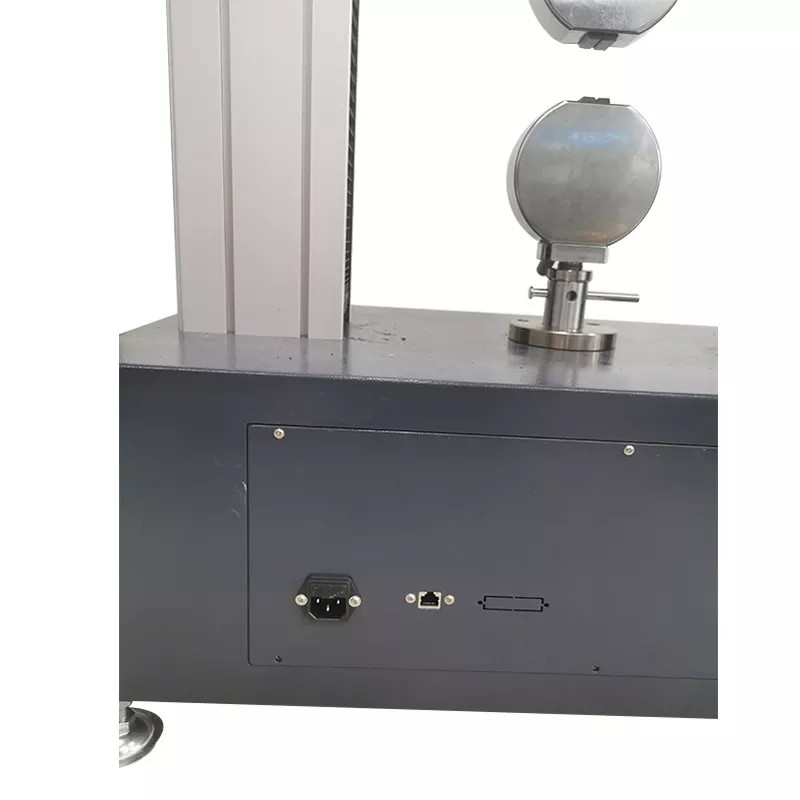

7. Optional with standard serial RS232 interface, which can provide data communication for the upper computer comprehensive report system

8. Multi-function, flexible configuration: the instrument is mainly used for measurement of metal and non-metal materials, changing the configuration of the instrument can be widely applicable to the measurement of other materials



Description:



The machine adopts computer control, which are widely used in rubber, plastics, plywood,wire and cable, textiles, waterproof material, non-woven fabrics and other non-metallic materials and metal wire, metal foil, sheet metal and metal mechanical properties test, with special fixture is also suitable for all kinds of finished products tensile, compression, peel, cut, tear, bend test (passbook).It can print multiple data, and make graphic output comparison according to different data, with high control accuracy and easy operation.Adopt modular design, all kinds of accessories are complete, the collocation is flexible.



Application:


This machine is mainly used to test the mechanical properties of metal such as stretching, compression and bending, etc., and it can also realize the constant stress, constant strain, creep, relaxation, axial and radial, etc.According to GB, JIS, ASTM, DIN and other standards, parameters such as tensile strength, yield strength, elongation, constant elongation stress, constant stress elongation and elastic modulus can be calculated automatically.



Characteristic

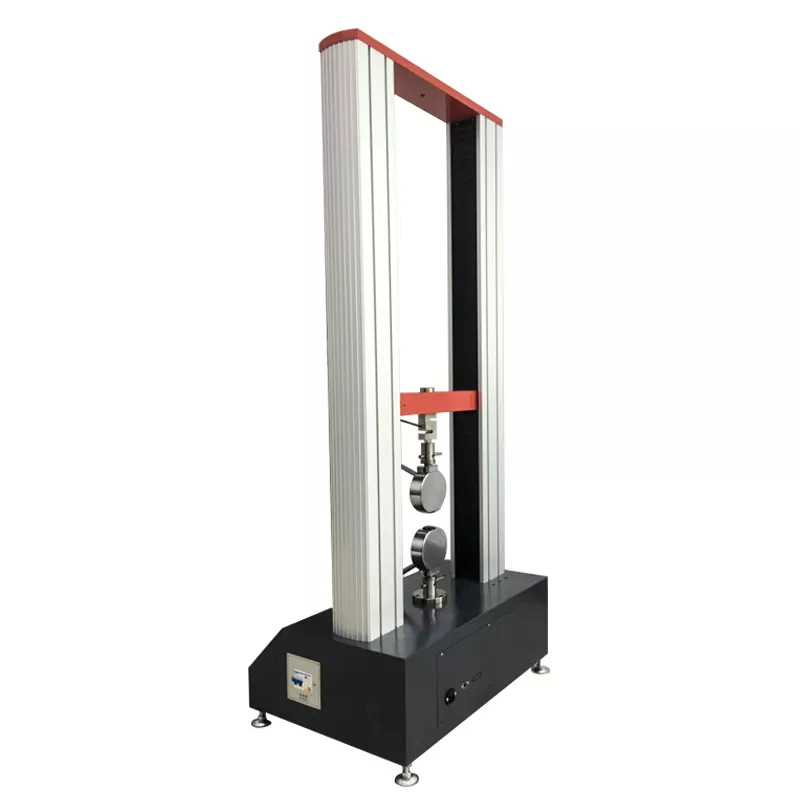

1. The base is supplemented by the aluminum alloy profile column with advanced spray treatment;
2. Adopt high precision, no clearance ball screw and timely gauge belt to ensure the accuracy of the transmission system;
3. Fully computerized data acquisition and motion control;
4. The test software under Windows XP operating system, users can use the existing functions of the software to complete the mechanics test project, and can also edit the test method according to their own actual needs;
5. Better than 0.5 level of force measurement accuracy, 1/300000 force value resolution.



Safety device



1. Limit protection: with program control and mechanical bipolar protection, to ensure the normal operation of the instrument in the set stroke;
2. Overload protection: when the load reaches 110% of the force sensor, the instrument will stop automatically;
3. Automatic diagnosis: check the measuring system and driving system regularly for over voltage, over current and over temperature, and stop immediately when abnormal conditions occur.



Parameter



Model YY-20K YY100K
Capacity(KN) 1,2,5,10,20,50,100,200,500,1000,2000(KN) optional(or customize)
Accuracy level 0.5%
Effective pull space 1200mm(contain grips)
Effective test width 400mm 320mm
Effective test force range 0.02/100~100%
Speed accuracy Less than ±0.5%
Displacement accuracy Less than ±0.5%
Deformation test accuracy Less than ±0.5%
Sensor High Accuracy Sensor
Test force resolution 1/250,000 1/150,000
Test Speed 0.1~500mm/min 50~500mm/min
Motor system Panasonic servo motor + Panasonic sevor drive AC motor + AC drive

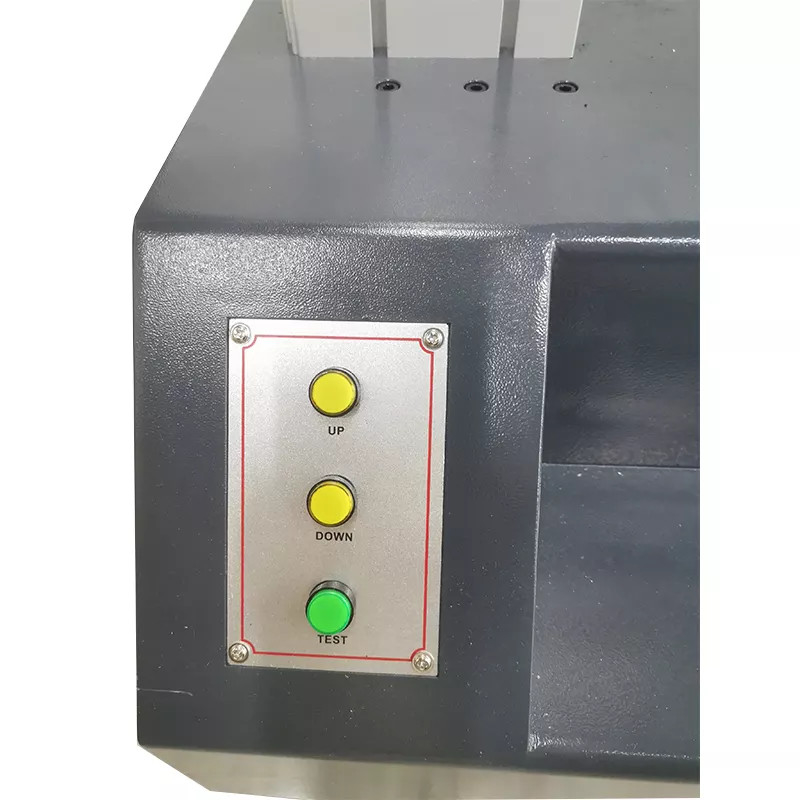

Lifting control Computer control or manual button control
Optional parts Lenovo computer
Dimension 80×50×150cm
Operation method

Computer Control





Electronic Computer Tensile Testing Machine Universal Clamp Strength Detect 0
