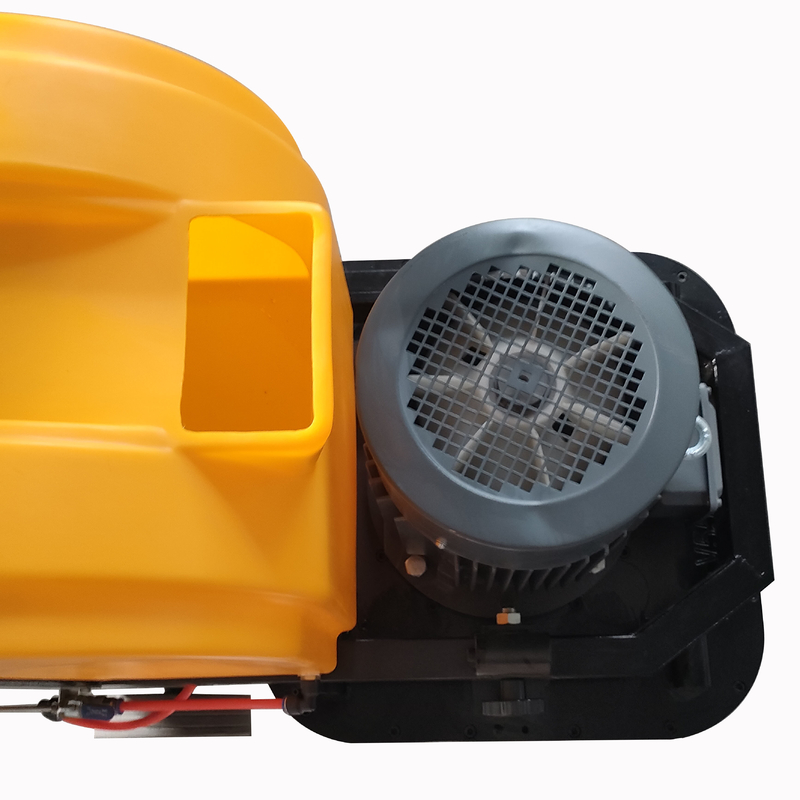

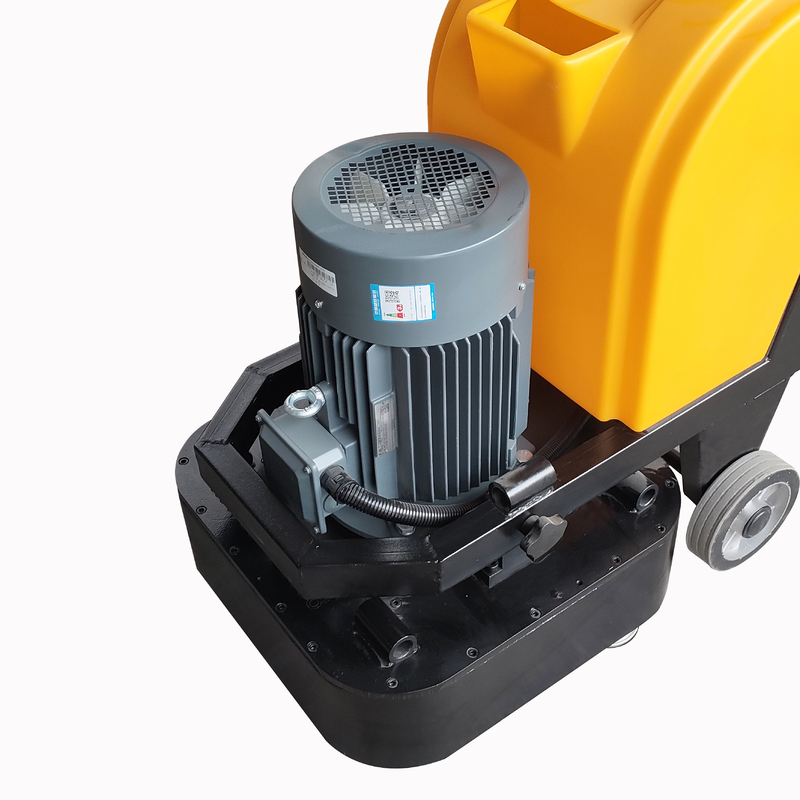

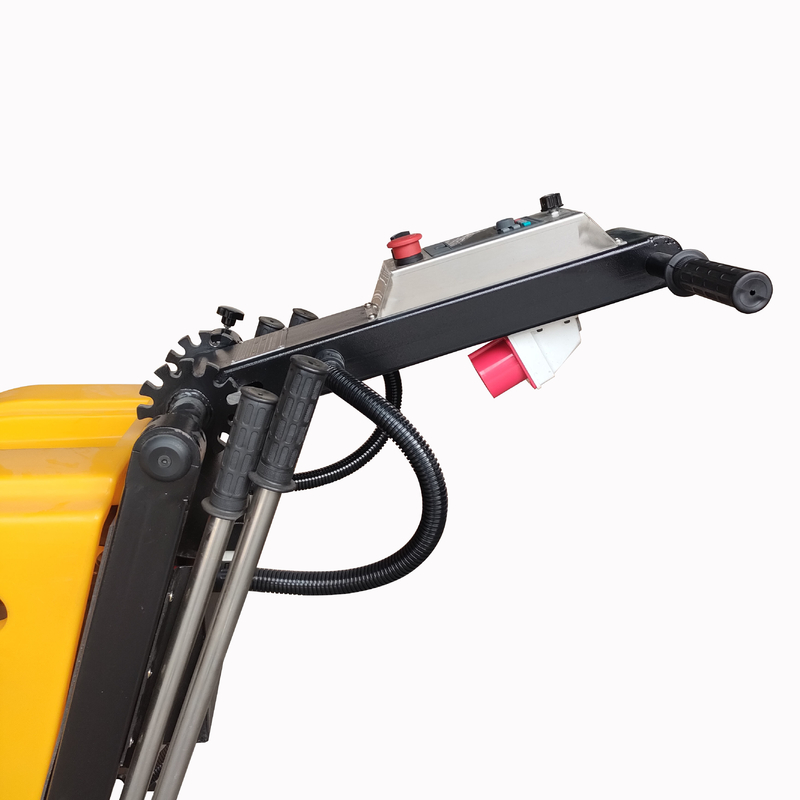

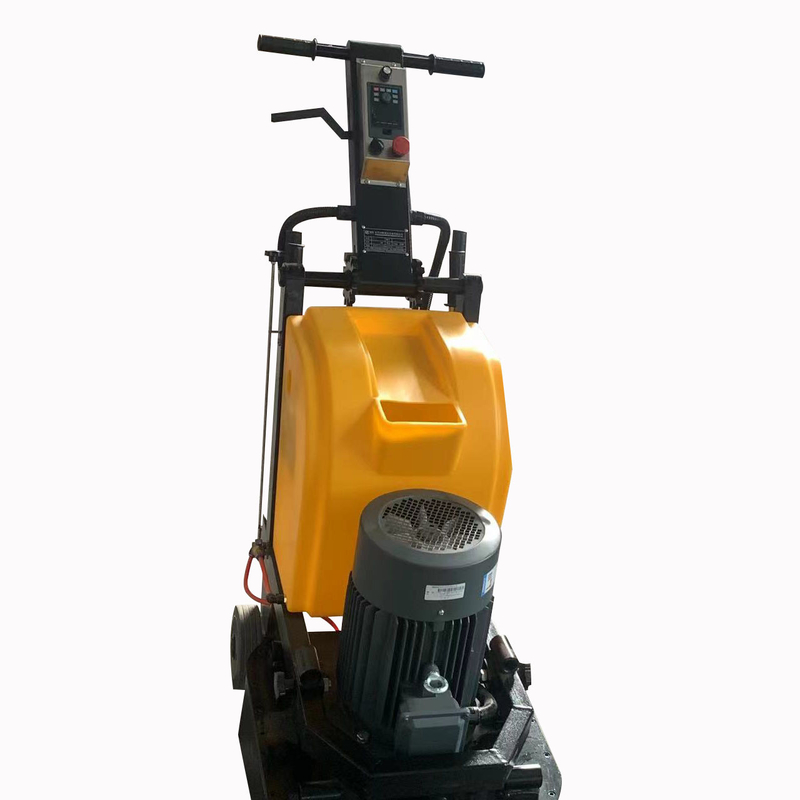

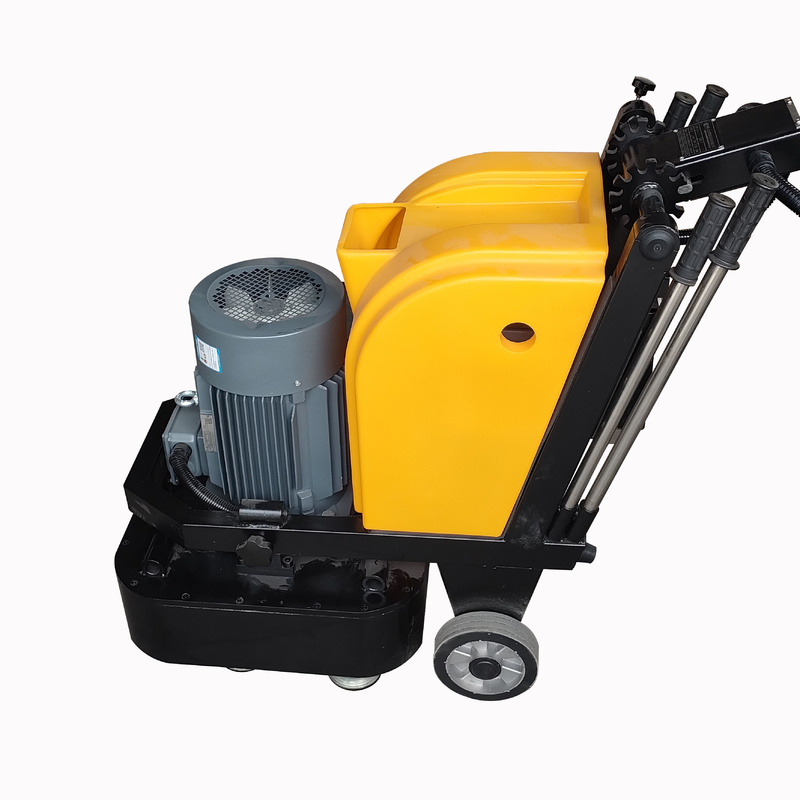

Professional Floor Systems Grinding Machine Diamond Floor Grinder
Description
The floor grinder is mainly used for polishing epoxy concrete stone floors, it can effectively polish old epoxy floors with terrazzo, concrete surfaces and epoxy mortar layers. It has the characteristics of lightweight, flexible and high performance. Equipped with hoover socket, it can be directly connected with the sander, can achieve dust-free effect with the work. It is the ideal equipment for floor engineering treatment.
Lightweight, flexible and highly efficient. Equipped with a hoover socket, the power cord of the hoover can be directly connected with the sander, avoiding the hassle of needing two power cords when working. This equipment is ideal for floor engineering processes. For grinding, the grinding wheel must be mounted on the floor grinder. Polycrystalline diamond grinding wheels can be ground first and then with normal diamond grinding wheels.
Product Features
1. floor grinding machine grinding surface: The larger the grinding surface of the machine, the more level the structure floor, but it is also because of the increase in the grinding surface, reducing the efficiency of the floor flatness.
2. floor grinding machine grinding head way of operation: floor grinding machine grinding head way of operation is more complex, the greater the grinding force, the higher the efficiency, the clarity of the ground will also improve. Two-way 12 grinding head floor grinder has more grinding power.
3. floor polisher's rotational speed: under normal circumstances, the higher the rotational speed of the floor polisher's grinding head, the higher the grinding force will be. However, excessively high rotational speed will reduce the grinding force of abrasives and abrasives, lower the pressure of the grinding head, which will reduce the stability of machine operation and lower the construction standard.
4. Ground grinding machine grinding head unit pressure: ground abrasive machine grinding head pressure is even with the weight of the machine, the higher the grinding head pressure, the higher the relative efficiency and leveling rate. If the ground construction is too soft, if the grinding head pressure is large, the cutting force increases, at this time the floor grinder cannot run at an even speed, and the flatness of the construction will be reduced.
5. Water control: In general, the ground grinding is divided into wet grinding and dry grinding, mainly determined by the ground. Water can play the role of lubrication, chip removal and cooling. Granite hard ground with the grinding process changes, water control should be timely given. The temperature of ground grinding also directly affects the brightness of grinding.
Parameters
| Power 10HP |
10HP |
| Inverter |
10HP |
| Voltage |
220-240V |
| Grinding discs |
12pcs |
| Work width |
650*650 mm2 |
| Work Width |
310* 550mm |
| Weight |
350Kgs |
| Water tank 30L |
30L |
| Function |
Leveling,Renovating, Polishing,Crystallizing |
