10CM2 GSM Textile Circle Fabric Cutter , Round Cutter For Fabric

10CM2 GSM Textile Circle Fabric Cutter , Round Cutter For Fabric

  • 10CM2 GSM Textile Circle Fabric Cutter , Round Cutter For Fabric
  • 10CM2 GSM Textile Circle Fabric Cutter , Round Cutter For Fabric
  • 10CM2 GSM Textile Circle Fabric Cutter , Round Cutter For Fabric
  • 10CM2 GSM Textile Circle Fabric Cutter , Round Cutter For Fabric
  • 10CM2 GSM Textile Circle Fabric Cutter , Round Cutter For Fabric
  • 10CM2 GSM Textile Circle Fabric Cutter , Round Cutter For Fabric
10CM2 GSM Textile Circle Fabric Cutter , Round Cutter For Fabric
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: ISO2403 BS3181 ASTMD1448; ISO1136 BS3183 ASTMD1282A
Model Number: YYW22
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $50
Packaging Details: Plywood Box
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Sample Diameter: 113cm Application: Textile Fabric, Carpet, Film, Foam
Cutting Thickness: 5mm Cutter Area: 100cm^2
Accessory: Up To 5 Mm Weight: 3kg
Diameter: 112.8mm Color: Accept Customization
High Light:

GSM Round Cutter for Fabric

,

10CM2 Textile Circle Fabric Cutter

,

GSM Textile Circle Fabric Cutter

Textile Circle Fabric Cutter/sampler 10CM2 GSM Sample Cutter/Round Cutter for Fabric



Use


The instrument is suitable for cutting round samples of various woolen, cotton, chemical fiber and knitted fabrics





Purposes:


The instrument is suitable for cutting round samples of various woolen, cotton, chemical fiber and knitted fabrics
Main technical indicators:
Sample area :100cm2 cut fabric thickness :4mm
Instrument size: φ 132×130mm



Usage

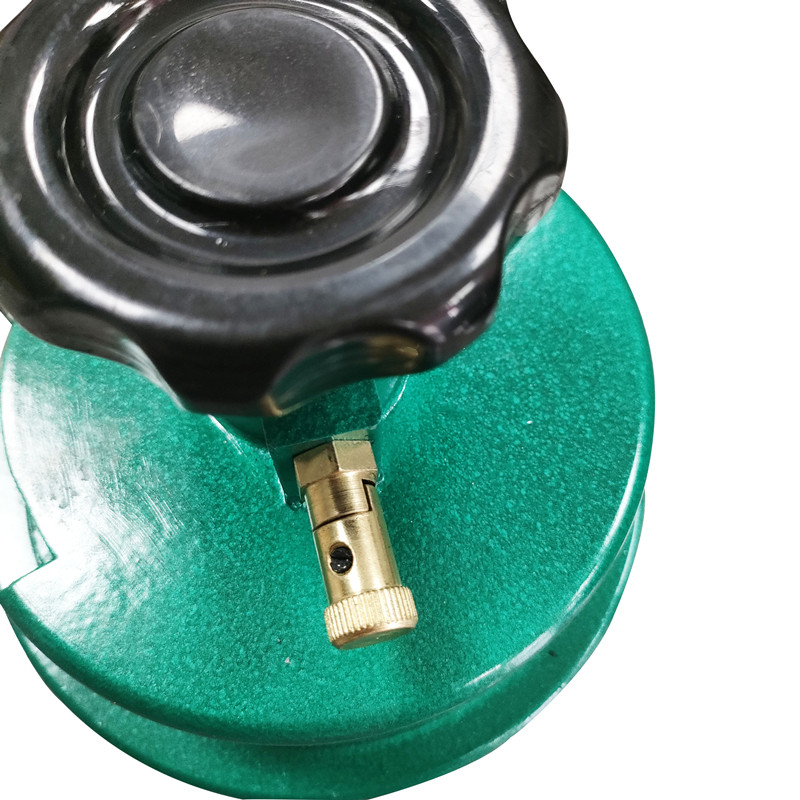

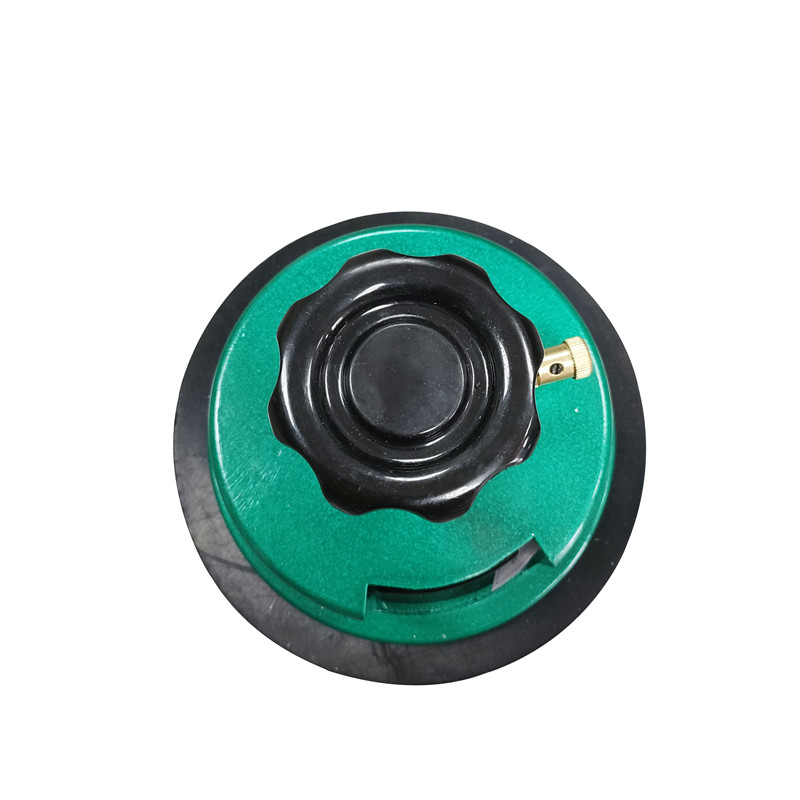

Lay the fabric to be cut flat on the rubber pad, put the disk sampler on the fabric, pull out the locking device on the sampler, rotate about 90 degrees, hold the outer cover with one hand, hold the corrugated hand wheel with one hand, and apply certain pressure, and then rotate the corrugated hand wheel clockwise (Angle greater than 90 degrees), the round sample can be cut. After using the sampler, the device will be locked and rotated to the original position, so that the blade can not be exposed, so as not to hurt hands and other items.

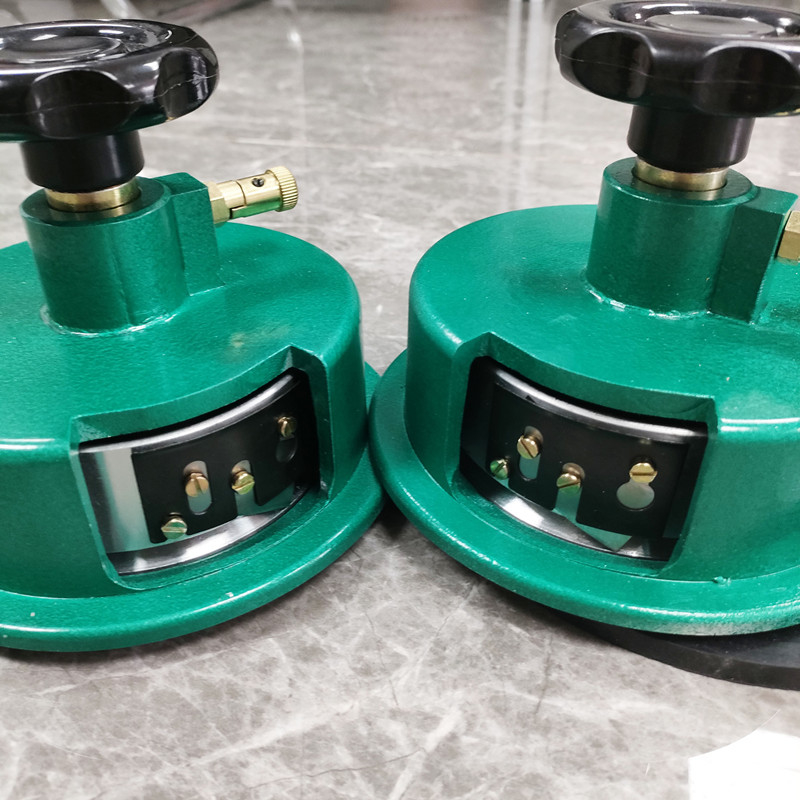

Structure and adjustment

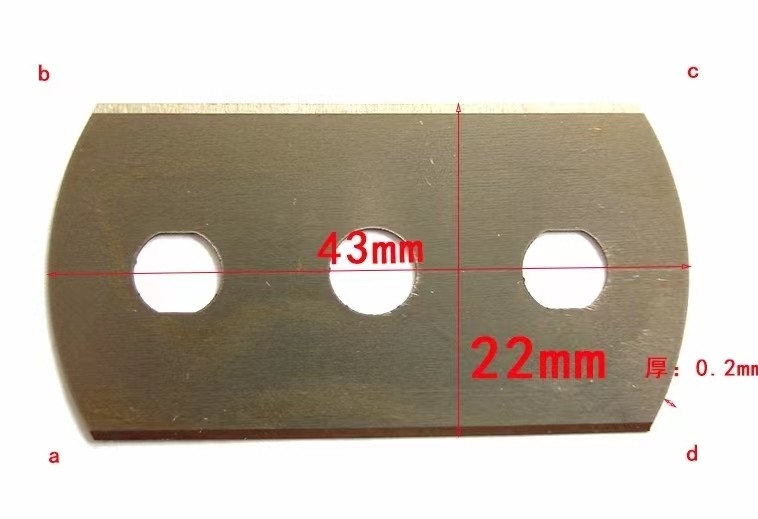

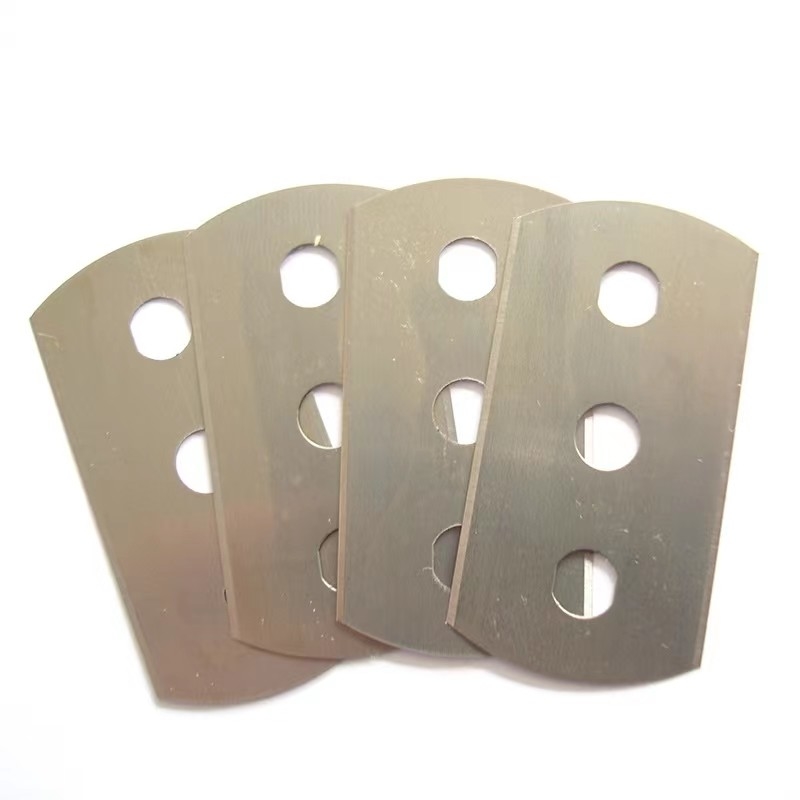

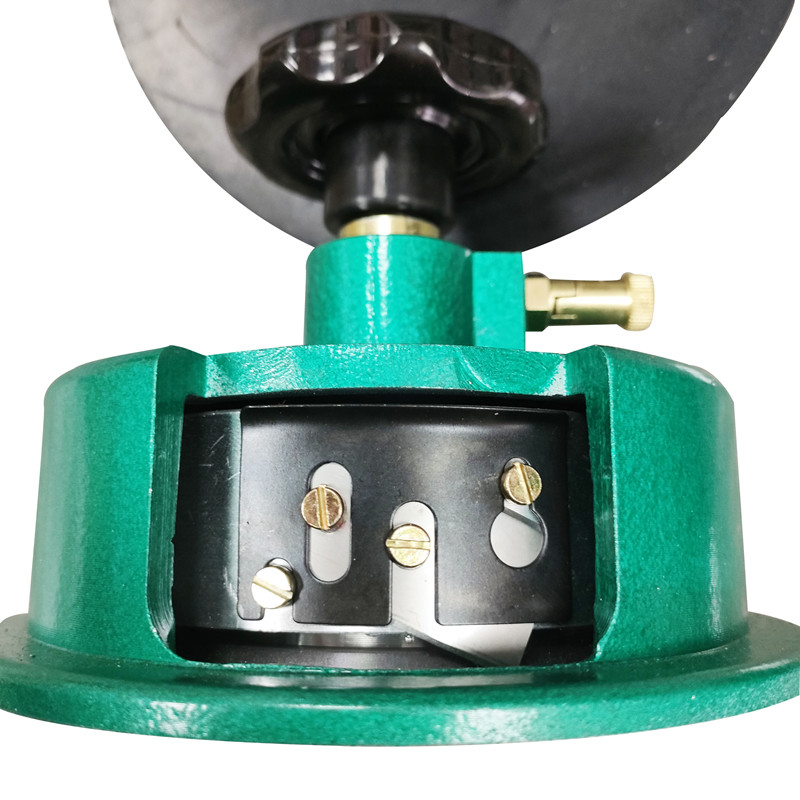

Cutter blade for double blade, a total of four pieces of circular external fours uniform, the blade can be replaced, specific operation is: loosen the cross screw (there are four screws on each piece), remove the blade clamp and sampling blade, change a new blade, blade clamp pressure, pay attention to the blade mouth to clockwise tangential, and four pieces of blade in the same plane, then tighten the cross screw.
The bottom of the instrument has a straight notch, used to fix the sample, easy to cut, prevent the sample from slipping.



Note


The instrument blade is sharp, do not put your hand on the bottom during use, in order to avoid damage.
Instrument cutting sample should be carried out on the rubber pad, the instrument is not used to wipe clean, put in the instrument box, so as not to damage.
Can be equipped with professional high-precision electronic balance, accurate weighing grams, suitable for all kinds of textile, cloth, printing and dyeing, sampling and other factories.



Parameters



Color Accept customization
Diameter 112.8mm
Sample diameter 113cm
Weight 3kg
Application Textile fabric, carpet, film, foam
Accessory up to 5 mm
Cutting thickness 5mm
Cutter Area 100cm^2



10CM2 GSM Textile Circle Fabric Cutter , Round Cutter For Fabric 0

10CM2 GSM Textile Circle Fabric Cutter , Round Cutter For Fabric 1

10CM2 GSM Textile Circle Fabric Cutter , Round Cutter For Fabric 2

10CM2 GSM Textile Circle Fabric Cutter , Round Cutter For Fabric 3
