| Product Name: | High Configuration Salt Spray Test Machine X 60 Salt Spray Corrosion Test Equipment | Usage: | Salt Spray Test Chamber |
|---|---|---|---|
| Material: | PVC Rigid Plastic Board | Salt Water Temperature: | Neutral Saline Test Method (NSS ACSS) 35C±1C, Acid Saline Test Method (CASS) 50C±1C |
| Spray Form: | Continuous Spraying Or Programmable Spraying | Power: | AC220V, Lines15A |
| Laboratory Relative Humidity: | 85% RH Or More | Saline Concentration: | 5% Concentration Of NaCl, Or Every Liter 5% NaCl Add 0.26g CuCl2H2O |
| High Light: | High Configuration Salt Spray Test Machine,60 Salt Spray Corrosion Test Equipment,Salt Spray Corrosion Test Equipment |
||

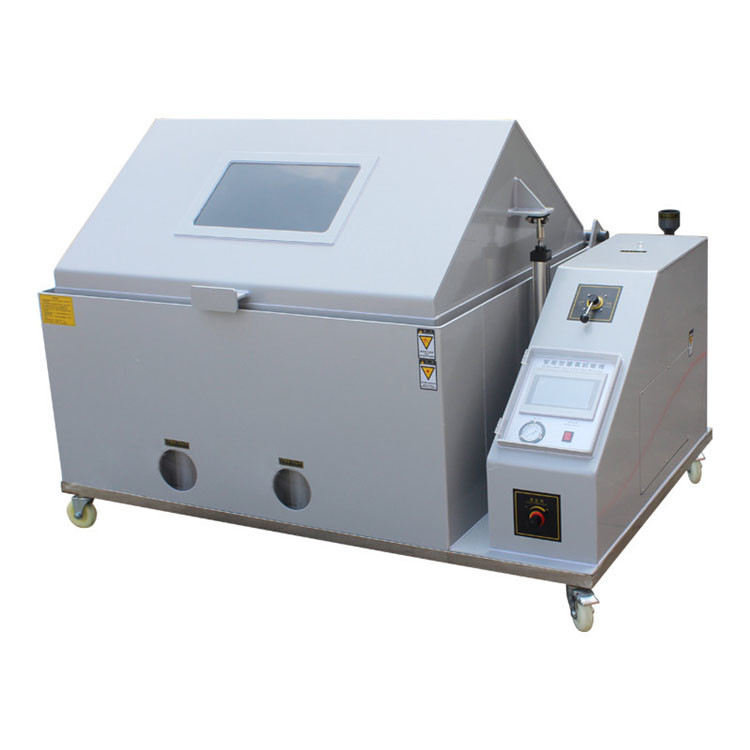

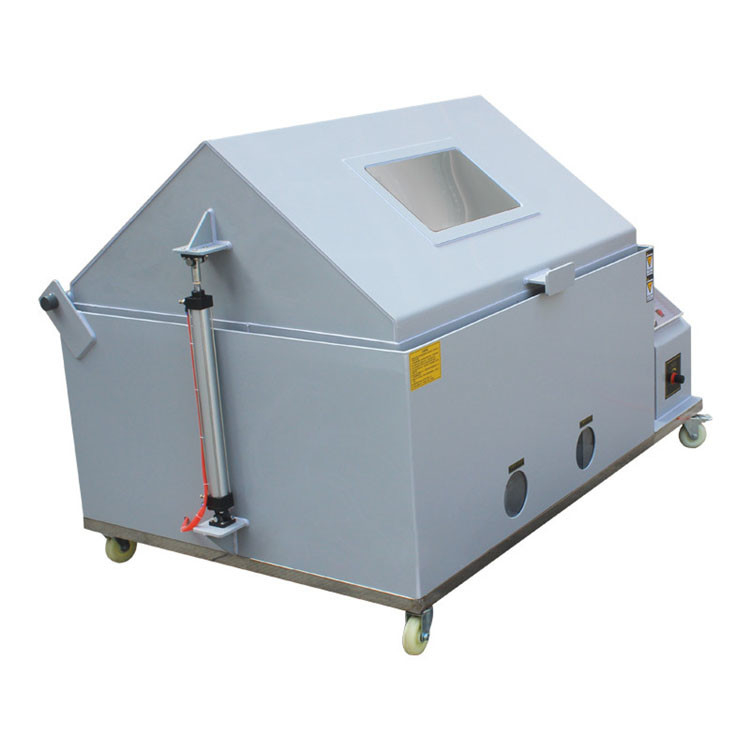

High Configuration Salt Spray Test Machine X 60 Salt Spray Corrosion Test Equipment
Product introduction:
Many customers request the salt spray cabinet should meet the astm b117 testing standard, astm b117 salt spray corrosion tests and standards, astm b117 salt spray, iso 9227 salt spray test, iso 7253, astm g85 salt spray test standard. Yes, They are the populare testing standard and used for salt spray cabinet testing period.
Purpose and Characteristics: Salt spray test standard for zinc plating, salt water resistant spray paint, salt test for painting, salt spray testing procedure for powder coating, salt spray test for stainless steel, salt spray testing for powder coating, salt spray test for zinc plating, salt spray check for paint.
Salt Spray Test Chamber is adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, metal products, it carries out the anti-corrosive treatment to test the corrosion resistance of the products.
Corresponding standard of the Salt Water Spray Test Chamber for CASS, NSS Test:
1. GB/T 2423.17-1993 salt spray test
2. GB/T 2423.18-2000 salt spray test
3. GB/T 10125-1997 salt spray test
4. ASTM.B117-97 salt
5. JIS H8502 salt spray test
6. IEC68-2-11 salt spray test
7. IEC68-2-52 1996 salt spray test
8. GB.10587-89 salt spray test
9. CNS.4158 salt spray test
10. CNS.4159 CASS Accelerated acetic acid copper salt spray test
11. GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test
Purpose :
Salt spray test machine is applicable for the salt spray corrosive test for the protection layer of components , parts , electronic and electrical parts and metal materials and industrial products
Chamber Structure:

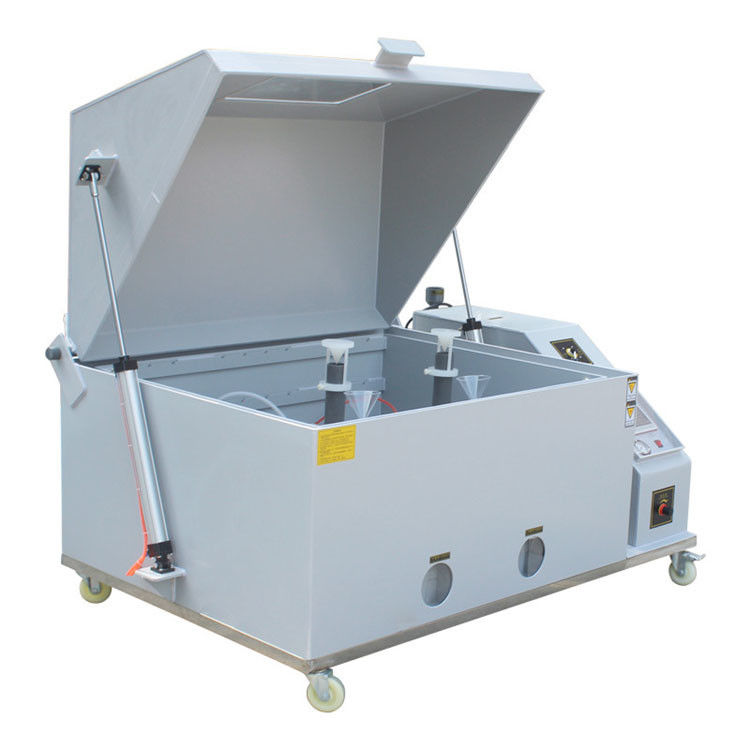

1. Salt spray test machine cover is made of transparent materials so that the operator can see the tested sample in the chamber and the spraying situation of the tested sample .
2. A waterproof structure is adopted between the chamber cover and chamber body and thus there is no salt spray overflow .
3. Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement .
Main technical parameters :
| Model | YY1015-60 | YY1015-90 | YY1015-120 |
| Inner box size: ( L×W×H ) cm | 60×40×45 | 90×60×50 | 120×100×50 |
| Outside box size: ( L×W×H ) cm | 107×60×118 | 141×88×128 | 190×130×140 |
| Equipment material: | P.V.C & P.P | ||
| Temperature range: | 35°C~55°C | ||
| Temperature fluctuations: | ≤±0 . 5°C | ||
| Temperature uniformity: | ≤±2°C | ||
| Temperature precision: | ±1°C | ||
| Test chamber temperature: | NSS ACSS 35±1°C CASS : 50±1°C | ||
| Saturated air barrel temperature: | NSS ACSS 47±1°C CASS 63±1°C | ||
| Brine temperature: | 35°C±1°C | ||
| Spray quantity: | 1 . 0~2 . 0 ml / 80cm2 / hr | ||
| PH: | NSS ACSS6 . 5~7 . 2 CASS 3 . 0~3 . 2 | ||
| Lab volume: | 108L | 270L | 600L |
| Brine tank capacity: | 15L | 25L | 40L |
| Power: | 1AC220V , 10A | 1AC220V , 15A | AC 1 , 220V , 30A |
| Safety Devices: | Overheating prevention circult-breaker,dehydration and overheating prevention mechanism,breakdown indicator light |
||
| Standard accessories: | Test salt, measure bucket, tool etc 1 set | ||
Specifications:
Salt Spray Test Chamber
1. Durable hard PVC construction
2. Anti-corrosion ,
3. Easy clean & operate
4. 1 year warranty
Features :
1. Low loading threshold for ergonomic loading and unloading..
2. "Easy Open' pneumatically operated canopy, with safety interlock.
3. Dry seal gasket to prevent wetting the operator's clothes.
4. Timed canopy lock and automatic purge of the cabinet interior with fresh air after testing and before the chamber is opened.
5. Easily accessible salt spray atomizer(s) in transparent hard-wearing acrylic, for ease of maintenance.
6. External portable salt solution tank for ease of cleaning. 115L for 300L, 73L for 450L, Chambers and 90L for 1000L Chambers and above.
7. Central viewing window for unimpeded visual access to chamber interior and test material.
8. Base castors and integrated fork lift lift truck runners, for ease of transportation.
9. A free choice of canopy colour.
10. Calibration certificate.
11. Consumables spares kit.
12. Fallout Measuring Kit.
