| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ISO: 3768, 3769, 3770; ASTM: 8117, B268 |
| Model Number: | YYN1020 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Case |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 2 sets per month |
| Product Name: | Precision Salt Spray Test Chamber Corrosion Testing Machine Salt Spray Accelerated Corrosion Testing Apparatus | Usage: | Salt Spray Test Chamber |
|---|---|---|---|
| Material: | PVC Rigid Plastic Board | Spraying Method: | Continuous Spraying |
| Test Chamber Temperature: | 35±1°C (NSS ACSS), 50±1°C (CASS) | Saturated Air Barrel Temperature: | 47±1°C (NSS ACSS), 63±1°C (CASS) |
| Laboratory Relative Humidity: | 85% RH Or More | Tester Chamber Volume: | 108L, 270L, 480L, 800L, 1200L |
| High Light: | Salt Spray Test Chamber,Salt Spray Test Chamber,Corrosion Testing Apparatus |
||

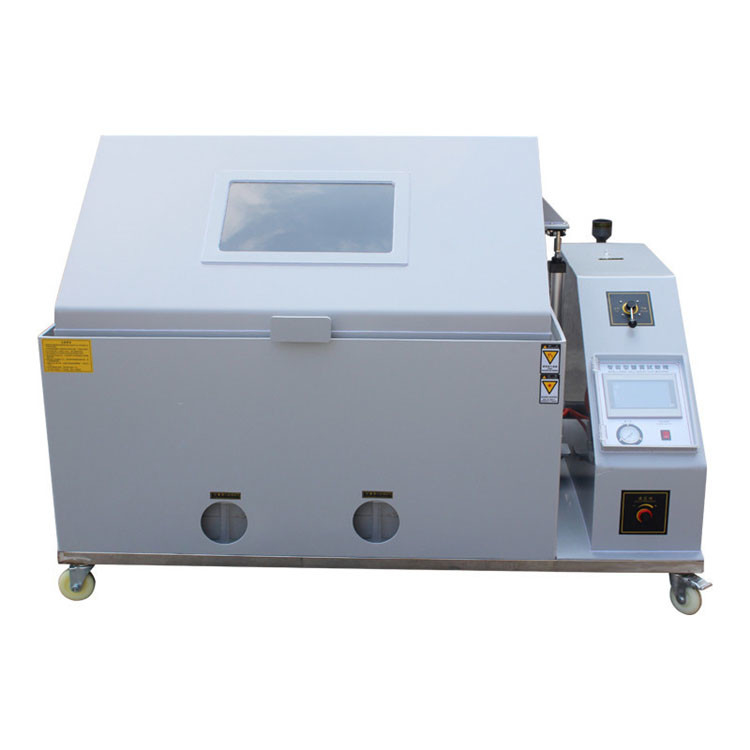

Precision Salt Spray Test Chamber Corrosion Testing Machine Salt Spray Accelerated Corrosion Testing Apparatus
Product introduction:
Many customers request the salt spray cabinet should meet the astm b117 testing standard, astm b117 salt spray corrosion tests and standards, astm b117 salt spray, iso 9227 salt spray test, iso 7253, astm g85 salt spray test standard. Yes, They are the populare testing standard and used for salt spray cabinet testing period.
Purpose and Characteristics: Salt spray test standard for zinc plating, salt water resistant spray paint, salt test for painting, salt spray testing procedure for powder coating, salt spray test for stainless steel, salt spray testing for powder coating, salt spray test for zinc plating, salt spray check for paint.
Salt Spray Test Chamber is adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, metal products, it carries out the anti-corrosive treatment to test the corrosion resistance of the products.
Corresponding standard of the Salt Water Spray Test Chamber for CASS, NSS Test:
1. GB/T 2423.17-1993 salt spray test
2. GB/T 2423.18-2000 salt spray test
3. GB/T 10125-1997 salt spray test
4. ASTM.B117-97 salt
5. JIS H8502 salt spray test
6. IEC68-2-11 salt spray test
7. IEC68-2-52 1996 salt spray test
8. GB.10587-89 salt spray test
9. CNS.4158 salt spray test
10. CNS.4159 CASS Accelerated acetic acid copper salt spray test
11. GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test
Purpose :
Salt spray test machine is applicable for the salt spray corrosive test for the protection layer of components , parts , electronic and electrical parts and metal materials and industrial products
Chamber Structure:

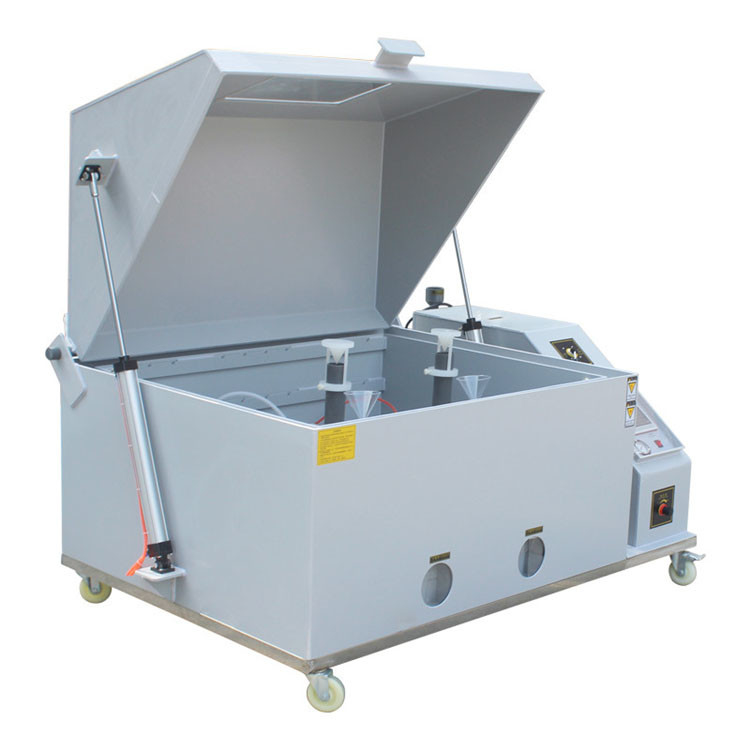

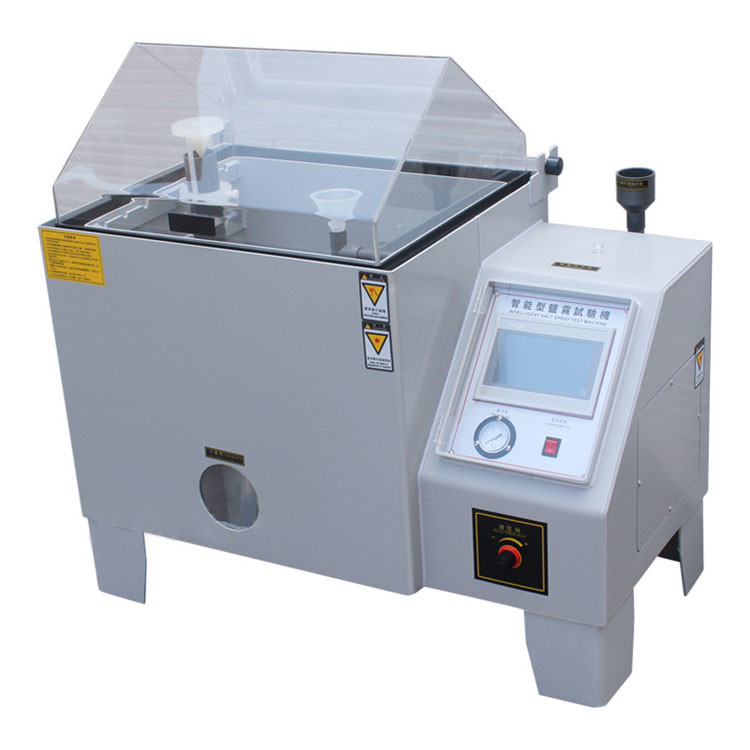

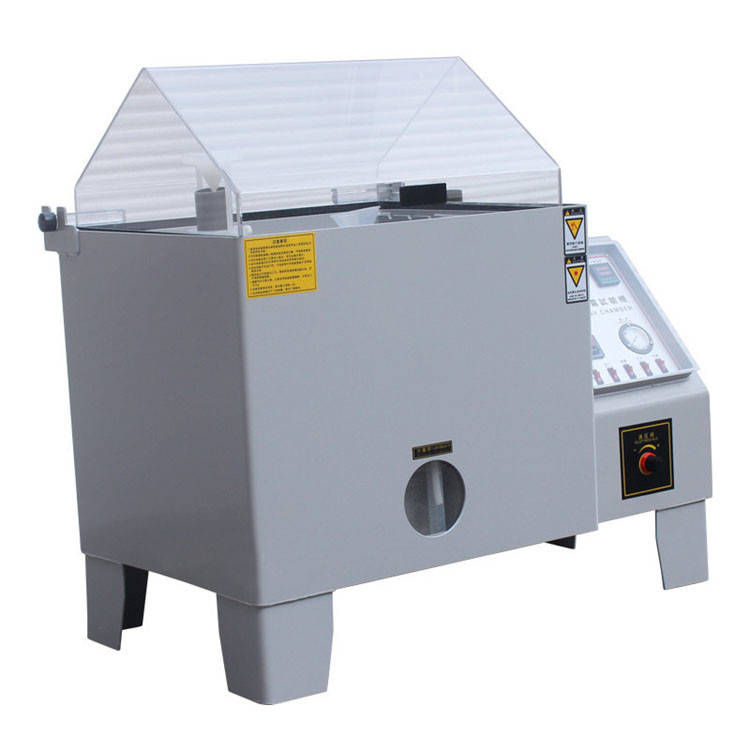

1. Salt spray test machine cover is made of transparent materials so that the operator can see the tested sample in the chamber and the spraying situation of the tested sample .
2. A waterproof structure is adopted between the chamber cover and chamber body and thus there is no salt spray overflow .
3. Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement .
Main technical parameters :
| Model | YY1015-60 | YY1015-90 | YY1015-120 |
| Inner box size: ( L×W×H ) cm | 60×40×45 | 90×60×50 | 120×100×50 |
| Outside box size: ( L×W×H ) cm | 107×60×118 | 141×88×128 | 190×130×140 |
| Equipment material: | P.V.C & P.P | ||
| Temperature range: | 35°C~55°C | ||
| Temperature fluctuations: | ≤±0 . 5°C | ||
| Temperature uniformity: | ≤±2°C | ||
| Temperature precision: | ±1°C | ||
| Test chamber temperature: | NSS ACSS 35±1°C CASS : 50±1°C | ||
| Saturated air barrel temperature: | NSS ACSS 47±1°C CASS 63±1°C | ||
| Brine temperature: | 35°C±1°C | ||
| Spray quantity: | 1 . 0~2 . 0 ml / 80cm2 / hr | ||
| PH: | NSS ACSS6 . 5~7 . 2 CASS 3 . 0~3 . 2 | ||
| Lab volume: | 108L | 270L | 600L |
| Brine tank capacity: | 15L | 25L | 40L |
| Power: | 1AC220V , 10A | 1AC220V , 15A | AC 1 , 220V , 30A |
| Safety Devices: | Overheating prevention circult-breaker,dehydration and overheating prevention mechanism,breakdown indicator light |
||
| Standard accessories: | Test salt, measure bucket, tool etc 1 set | ||
Specifications:
Spray mode: Continuous spray, intermittent spray, cyclic spray
Internal capacity: 108L, 270L, 480L, 800L, 1200L
Salt spray type: NSS, AASS, CASS
Test Chamber temp.: (35±1)℃ (NSS, AASS) (50±1)℃ (CASS)
Saturated air barrel temp.: (47±1)℃ (NSS, AASS) (63±1)℃ (CASS)
Test machine material: PVC board (high corrosion resistance, high temperature resistance,high humidity resistance )
Control system: High precision temperature controller, Omron timer, Temperature error: ±1℃, With full detection fault early warning system. Lights up when fault occurs
Automatic water supply system
With defog function
Features :
1. Imported reinforced hard PP plates with smooth and flat surface
2. Imported transparent impact-resistant plates as observe window
3. All pipe is anti-corrosion can be used 15years .
4. Adopt water seal method to prevent leakage of salt spray.
5. With air pressure cylinder for convenient operation.
6. Independent heating system , fast speed , temperature and humidity are evenly distributed
7. Equipped with automatic demisting device
8. Fault alarm and resolution remind function
9. Power failure protection function
10. Self-diagnosis function
11. Calendar timing function
12. Tri-color Indicator and EMO (Emergency-off Switch) available
