Name: 0.1-500mm/Min Tensile Strength Measuring Instrument , 50 / 60Hz Pulling Force Tester
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYE1085
Price: 25,000.00 USD
Availability: InStock

Home > products > Tensile Testing Machine >

0.1-500mm/Min Tensile Strength Measuring Instrument , 50 / 60Hz Pulling Force Tester

500mm/Min Tensile Strength Measuring Instrument

60Hz Tensile Strength Measuring Instrument

AC Motor Pulling Force Tester

Place of Origin:

DONGGUAN

Brand Name:

YUYANG

Certification:

Model Number:

YYE1085

Request A Quote

0.1-500mm/Min Tensile Strength Measuring Instrument , 50 / 60Hz Pulling Force Tester

Product Details

Warranty:

12 Months

Test Speed:

0.1-500mm/min

Dimension:

58*58*125cm

Load Resolution:

1/250,000

Optional Accessories:

Stretcher, Air Clamp

Power:

Electronic, 1PH, AC220V, 50/60Hz

Capacity:

2,5,10,20,50,100,200,500kg

Accuracy:

±0.5%

Weight:

70kg

Highlight:

500mm/Min Tensile Strength Measuring Instrument

60Hz Tensile Strength Measuring Instrument

AC Motor Pulling Force Tester

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiable

Packaging Details

Wooden Boxes

Delivery Time

5-20 Days

Payment Terms

T/T

Supply Ability

300 Set/Sets per Month

Computer Control Tensile Strength Test Machine For Yarn / Textile / Plastic

Get Best Price

Video

YYL-006 Mechanical Equipment Automatic Electronic Tensile 100kn 50kn Hydraulic Universal Testing Machine For Geocell Straps

Get Best Price

Video

AC220V YYL-001 10kn 20kn 50kn 100kn 200kn 300kn Universal Tensile Strength Testing Machine For Terminal Tensile Testing

Get Best Price

Video

600kn Laboratory Rock Bolt Test Instrument For Anchorage Rebar Tensile Testing 10kn 100kn Universal Testing Machine 2ton 5ton 10 Ton Plastic Rubber Steel Ropes Metal Material Utm Tensile Str

Get Best Price

86-769-26622869

Contact Now

Product Description

Stainless Steel 304 UV Accelerated Weathering Tester Aging Test

Descriptions:

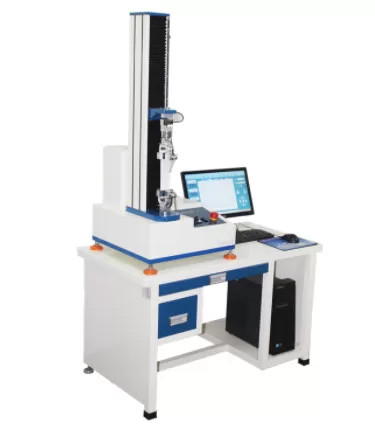

This machine also known as a materials testing machine , it is applicable to testing tensile stress, compressive stress, shearing force, peeling force, and elongation of materials, components, and finished product for metal, plastic, rubber, textile, synthetic chemicals, wire and cable, leather, ect.

Specifications:

Model	YY-1065	YY-1068
Range of speed	0.1~500mm/min	50~500 mm/min
Motor	Panasonic sevor motor	AC motor
Resolution	1/250,000	1/150,000
Capacity choice	1, 2, 5,10, 20, 50,100, 200, 500 kg optional
Stroke	850 mm (can be customized)
Accuracy	± 0.5 %
Force relative error	± 0.5 %
Displacement relative error	± 0.5 %
Test speed relative error	± 0.5 %
Effective testing space	120 mm
Accessories	Computer, printer, system operation manual
Optional accessories	Stretcher, air clamp
Operation method	Windows operation
Weight	70 kg
Dimension	(W * D * H) 58 * 58 * 145 cm
Power	1 PH, AC 220 V, 50/60 Hz
Stroke protection	Machinery, computer double protection, prevent over preset
Force protection	system setting
Emergency stop device	Handling emergencies
