| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ISO: 3768, 3769, 3770; ASTM: 8117, B268 |
| Model Number: | YYQX63 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Case |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 2 sets per month |
| Product Name: | Management Salt Spray Corrosion Test Machine , Salt Hot Test Chamber | Usage: | Salt Spray Test Chamber |
|---|---|---|---|
| Equipment Material: | Both Inside & Outside Shell Adopt P.V.C Rigid Plastic Board | Temperature Fluctuations: | ≤±0.5℃ |
| Temperature Uniformity: | ≤±2℃ | Temperature Precision: | ±1℃ |
| Laboratory Relative Humidity: | 85% RH Or More | Saline Concentration: | 5.02% Concentration Of NaCl, Or Every Liter 5% NaCl Add 0.26g CuCl2H2O |

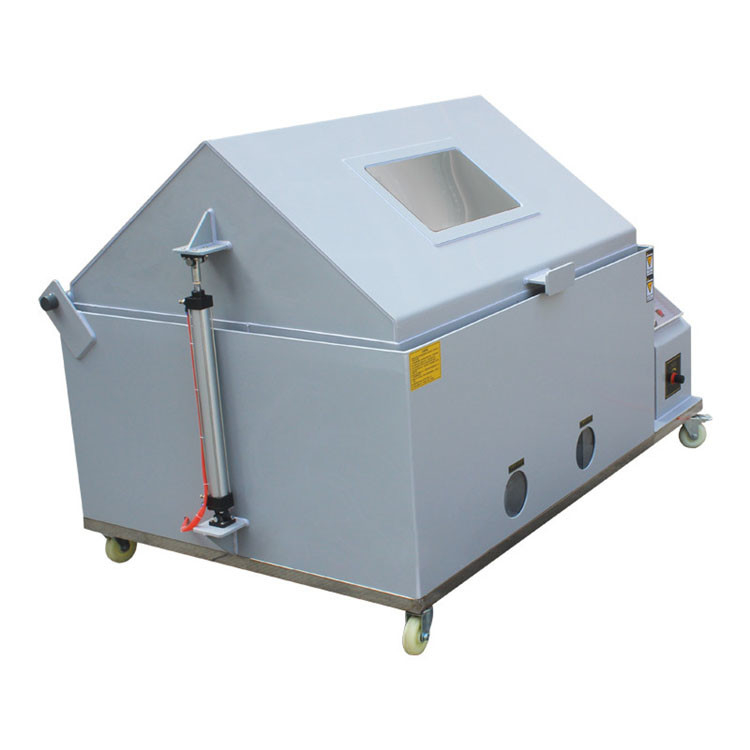

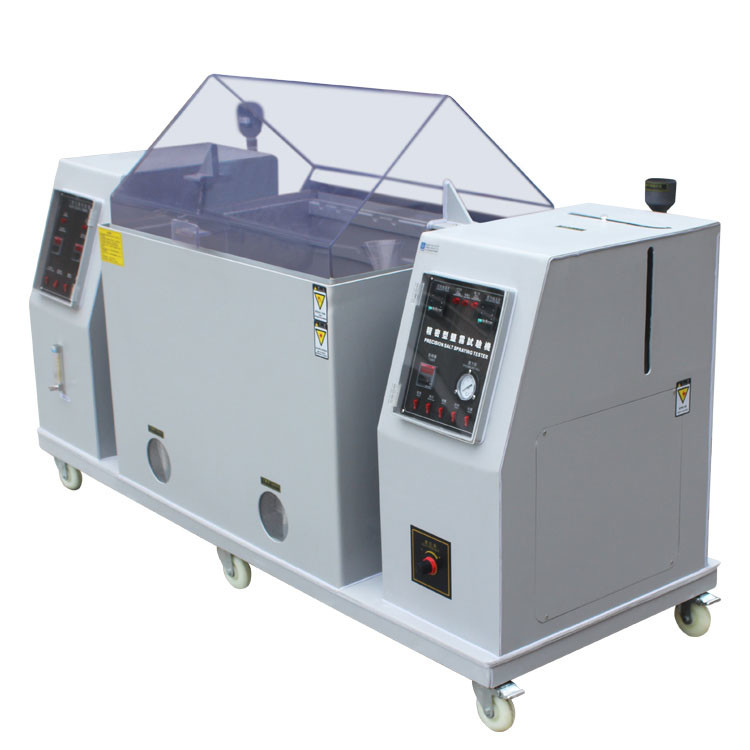

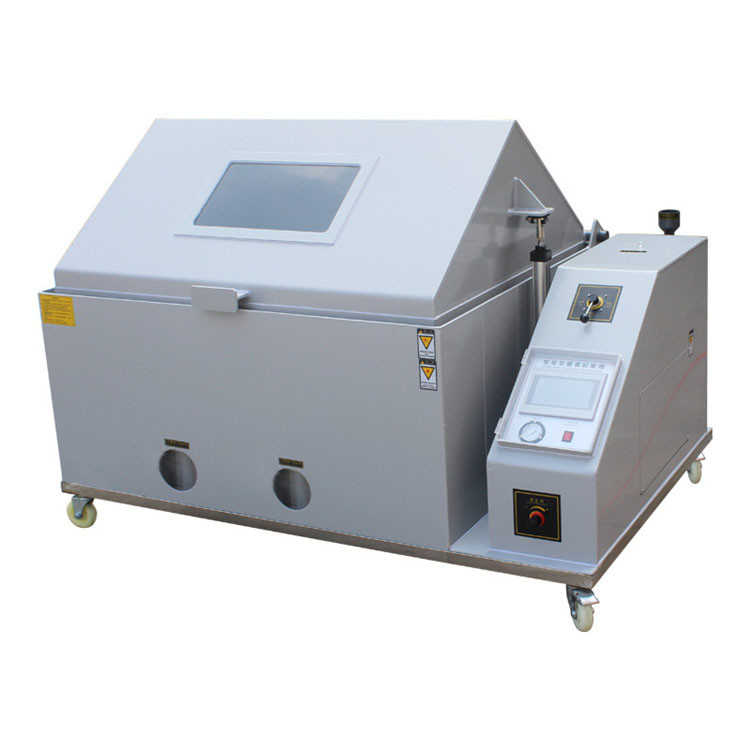

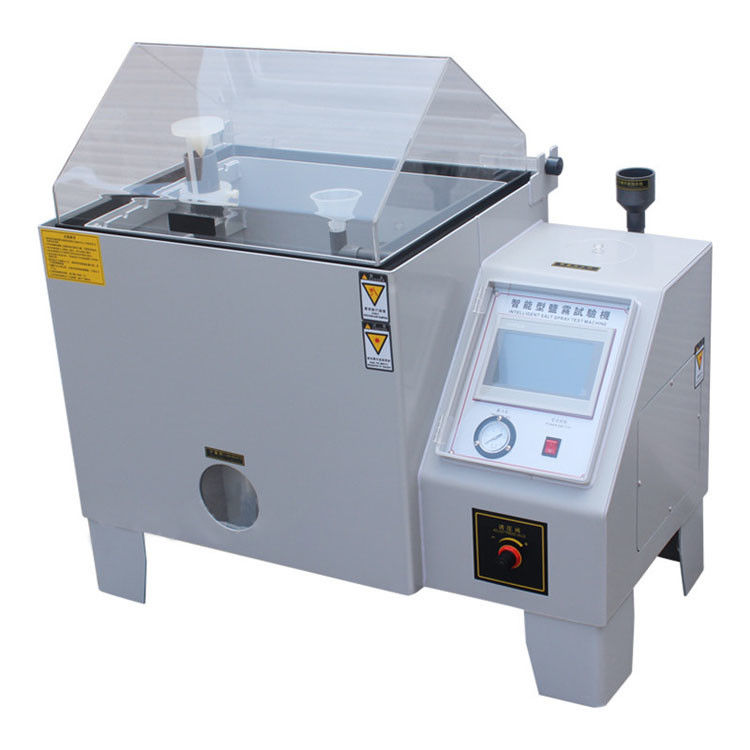

Management Salt Spray Corrosion Test Machine , Salt Hot Test Chamber
Product introduction:
Salt Spray Test Chamber is an international certification standardization and popular corrosion test method for checking the corrosion resistance of materials and surface coatings.
HAIDA salt spray chamber is the inexpensive, fastest, standard and repeatable ,mainly used to detect salt spray corrosion resistance of the material or material surface coating which often in corrosive environment . The HD salt spray chamber is equipped with an intelligent salt spray test system that enables quick and standardized conversion of test modules. Automatically adjust the test temperature in the workpeace (Salt Spray Method (NSS ACSS) 35 ± 1 ° C, Corrosion-resistant Testing Method (CASS) 50 ± 1 ° C).
Corresponding standard of the Salt Water Spray Test Chamber for CASS, NSS Test:
1. GB/T 2423.17-1993 salt spray test
2. GB/T 2423.18-2000 salt spray test
3. GB/T 10125-1997 salt spray test
4. ASTM.B117-97 salt
5. JIS H8502 salt spray test
6. IEC68-2-11 salt spray test
7. IEC68-2-52 1996 salt spray test
8. GB.10587-89 salt spray test
9. CNS.4158 salt spray test
Application Industry:
Salt spray chamber is mainly artificial simulation of corrosion standard environment, used to test long-term corrosive environment in the material or surface coating corrosion resistance.Salt spray test chamber widely used in hardware, electroplating, electronics, chemicals, automotive, aviation, coatings, wire and cable, circuit boards, communications and other industries.
Chamber Structure:
1. Salt spray test machine cover is made of transparent materials so that the operator can see the tested sample in the chamber and the spraying situation of the tested sample .
2. A waterproof structure is adopted between the chamber cover and chamber body and thus there is no salt spray overflow .
3. Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement .
Main technical parameters :
| Model | YY1015-60 | YY1015-90 | YY1015-120 |
| Inner box size: ( L×W×H ) cm | 60×40×45 | 90×60×50 | 120×100×50 |
| Outside box size: ( L×W×H ) cm | 107×60×118 | 141×88×128 | 190×130×140 |
| Equipment material: | P.V.C & P.P | ||
| Temperature range: | 35°C~55°C | ||
| Temperature fluctuations: | ≤±0 . 5°C | ||
| Temperature uniformity: | ≤±2°C | ||
| Temperature precision: | ±1°C | ||
| Test chamber temperature: | NSS ACSS 35±1°C CASS : 50±1°C | ||
| Saturated air barrel temperature: | NSS ACSS 47±1°C CASS 63±1°C | ||
| Brine temperature: | 35°C±1°C | ||
| Spray quantity: | 1 . 0~2 . 0 ml / 80cm2 / hr | ||
| PH: | NSS ACSS6 . 5~7 . 2 CASS 3 . 0~3 . 2 | ||
| Lab volume: | 108L | 270L | 600L |
| Brine tank capacity: | 15L | 25L | 40L |
| Power: | 1AC220V , 10A | 1AC220V , 15A | AC 1 , 220V , 30A |
| Safety Devices: | Overheating prevention circult-breaker,dehydration and overheating prevention mechanism,breakdown indicator light |
||
| Standard accessories: | Test salt, measure bucket, tool etc 1 set | ||
Specifications:
Salt Spray Test Chamber
1. Durable hard PVC construction
2. Anti-corrosion ,
3. Easy clean & operate
4. 1 year warranty
Features :
1. Provides USB Host for USB flash drive
2. Touch-screen operator control interface.
3. ‘Easy Open’ pneumatically operated canopy.
4. Dry seal gasket prevents wetting operator’s clothes, etc.
5. Low loading threshold for loading and unloading.
6. Large capacity floor standing salt solution reservoir.
7. Calibration certificate.
