Name: AC220V Electronic Power Usage Universal Strength Tester Pull Force
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YJH47
Price: 25,000.00 USD
Availability: InStock

Home > products > Tensile Testing Machine >

AC220V Electronic Power Usage Universal Strength Tester Pull Force

Tensile Testing Machine AC220V

Servo Motor Universal Strength Tester

500mm/min Universal Strength Tester

Place of Origin:

DONGGUAN

Brand Name:

YUYANG

Certification:

Model Number:

YJH47

Request A Quote

AC220V Electronic Power Usage Universal Strength Tester Pull Force

Product Details

Warranty:

12 Months

Test Speed:

0.1-500mm/min

Dimension:

58*58*125cm

Control:

Computer Control

Trademark:

OTS

Power:

Electronic, 1PH, AC220V, 50/60Hz

Capacity:

2,5,10,20,50,100,200,500kg

Accuracy:

±0.5%

Weight:

0-100Kg

Highlight:

Tensile Testing Machine AC220V

Servo Motor Universal Strength Tester

500mm/min Universal Strength Tester

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiable

Packaging Details

Wooden Boxes

Delivery Time

5-20 Days

Payment Terms

T/T

Supply Ability

300 Set/Sets per Month

Computer Control Tensile Strength Test Machine For Yarn / Textile / Plastic

Get Best Price

Video

YYL-006 Mechanical Equipment Automatic Electronic Tensile 100kn 50kn Hydraulic Universal Testing Machine For Geocell Straps

Get Best Price

Video

AC220V YYL-001 10kn 20kn 50kn 100kn 200kn 300kn Universal Tensile Strength Testing Machine For Terminal Tensile Testing

Get Best Price

Video

600kn Laboratory Rock Bolt Test Instrument For Anchorage Rebar Tensile Testing 10kn 100kn Universal Testing Machine 2ton 5ton 10 Ton Plastic Rubber Steel Ropes Metal Material Utm Tensile Str

Get Best Price

86-769-26622869

Contact Now

Product Description

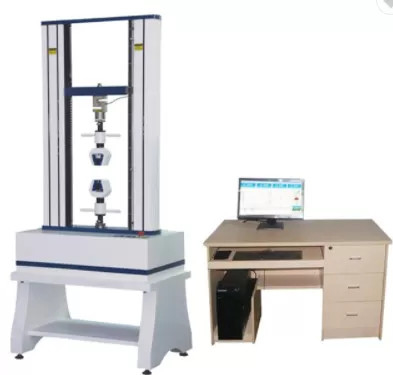

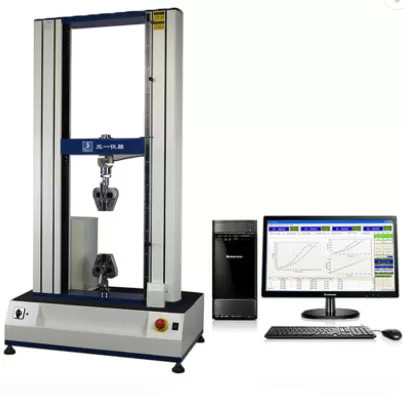

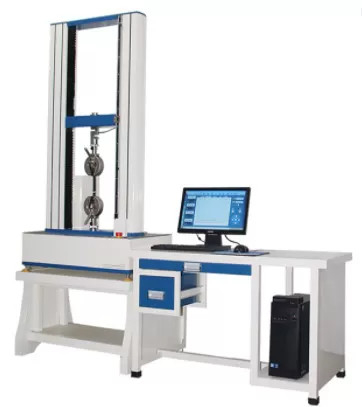

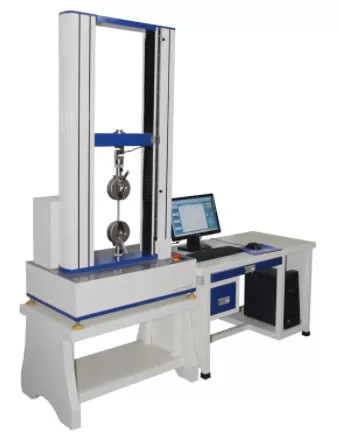

Tensile Testing Machine Electronic Power Usage Universal Strength Tester Pull Force

Descriptions:

This machine can test various materials (both finished and semi-finished products ) of tensile strength ,compressive strength and elongation ,can do stripping ,tear strength ,flexural ,compression test and etc. It can connect up to the computer and display or printout the test times , test value , max. value , etc . Also it can make various report forms according to the requirements .
The testing machine is widely used in all kinds of hardware, metal, rubber and plastics, footwear, leather, clothing, textiles, insulators, wires, cables, terminals and other types of materials, testing, tensile, tear, peel,compression, bending, shear, three-point bending ... and other physical test performance.

Specifications:

Model	YY-1065	YY-1068
Range of speed	0.1~500mm/min	50~500 mm/min
Motor	Panasonic sevor motor	AC motor
Resolution	1/250,000	1/150,000
Capacity choice	1, 2, 5,10, 20, 50,100, 200, 500 kg optional
Stroke	850 mm (can be customized)
Accuracy	± 0.5 %
Force relative error	± 0.5 %
Displacement relative error	± 0.5 %
Test speed relative error	± 0.5 %
Effective testing space	120 mm
Accessories	Computer, printer, system operation manual
Optional accessories	Stretcher, air clamp
Operation method	Windows operation
Weight	0-100 kg
Dimension	(W * D * H) 58 * 58 * 145 cm
Power	1 PH, AC 220 V, 50/60 Hz
Stroke protection	Machinery, computer double protection, prevent over preset
Force protection	system setting
Emergency stop device	Handling emergencies

AC220V Electronic Power Usage Universal Strength Tester Pull Force 0
