| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ISTA 1A, ASTM D999 |
| Model Number: | YY040 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10 |
| Packaging Details: | Plywood Case |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 2 sets per month |
| Vibration Speed: | 100CPM-300 CPM | Vibration Range: | 1 Inch(25.4mm) |
|---|---|---|---|
| Vibrating Frequency: | 60-300 Rpm(adjustable) | Simulation Speed: | 25km/h-40km/h |
| Timer: | 0~999.99hours | Testing Equipments: | Cycling Type |
| Max Test Load: | 100kg | Power: | AC220V 10A |
| Weight: | About 350 Kg | ||
| High Light: | Carton Box Vibration Tester,ASTM D999 Vibration Tester,AC220V Paper Testing Equipments |
||

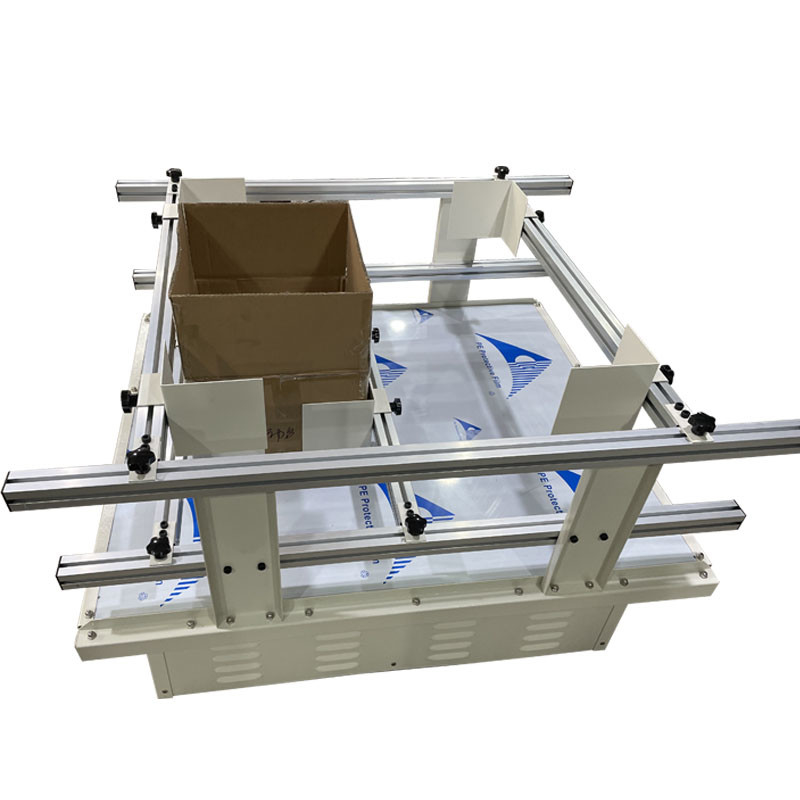

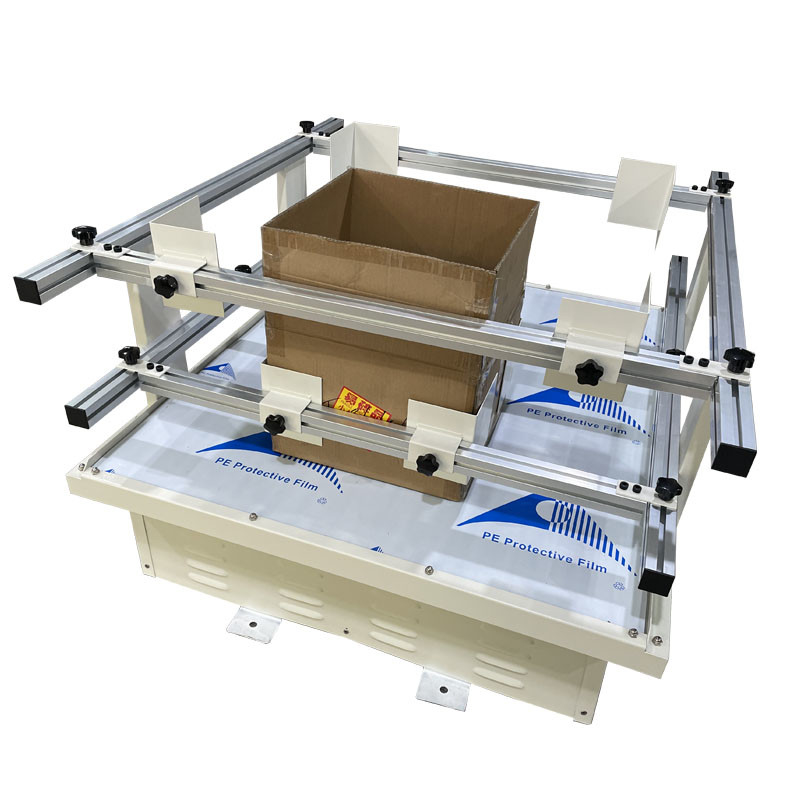

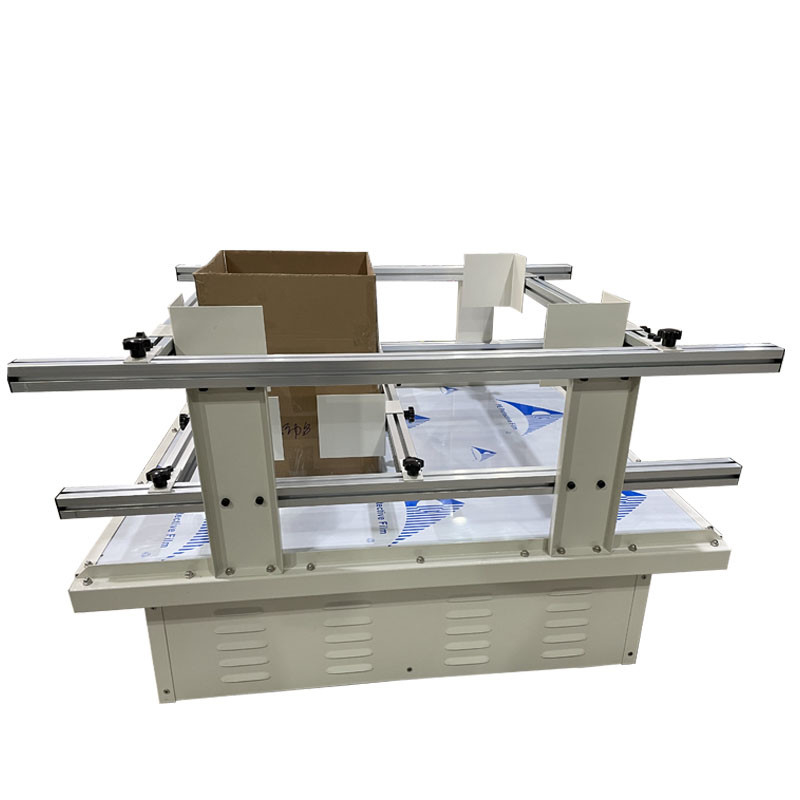

Carton Box Use Transport Simulation Vibration Tester, Paper Testing Equipments
Dscriptions:
Transport Simulation Vibration Testing Machine is based on the United States and European transport standards, and with reference to the United States of similar equipment to improve manufacturing. The use of eccentric bearings in rotating elliptical trajectories generated to simulate a car or ship the goods during transport the vibration of the collision. Test platform will be fixed on the eccentric bearing, when the eccentric bearing rotation, the test platform for the entire plane would produce an oval-shaped upper and lower front and rear movement, adjust the eccentric shaft with the rotation speed is equivalent to adjust the speed of motor vehicles or vessels.
Application:
Apply for conveyance test of toys, electronic parts, houseware, IT, communication, furniture, gift, package in compliance with USA & EURO shipping standards.
Standards:
EN71 ISTA-1A/1B ANSI UL ASTM international shipping standards.
Features:
Good cost performance.
Digital display for vibration frequency
Low noise: with synchronous noiseless belt transmission.
To use slideway for testing sample loading and unloading: easy and safe operation.
Heavy slot steel with vibration damping rubber for bottom plate of the machine,
safe and stable working
Cycling vibration system: in compliance with USA & EURO shipping standards.
Specifications:
|
Item |
Specification |
|
Vibration speed |
100CPM-300 CPM |
|
Vibration range |
1 inch(25.4 mm) |
|
Vibrating Frequency |
60-300 Rpm(adjustable) |
|
Simulation speed |
25km/h-40km/h |
|
Machine Dimension (L×W×H) |
1250×1100×800mm |
|
Package Dimension (L×W×H) |
1600*1200*1000mm (estimated) |
|
Max Load |
100kg |
|
Power |
Single Phase, 220V, 50 /60 Hz |
|
Weight |
About 350 kg |
