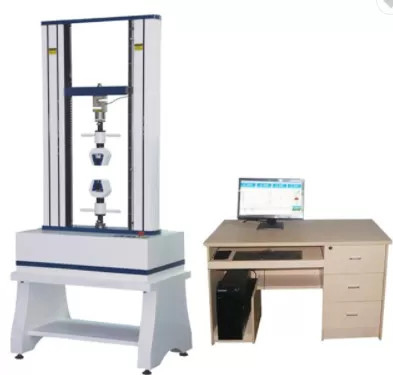

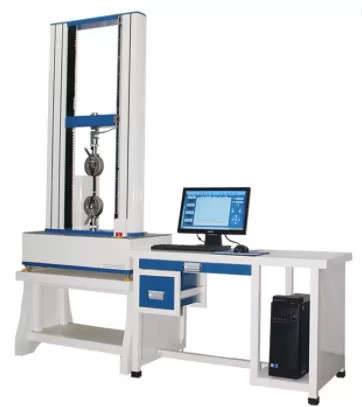

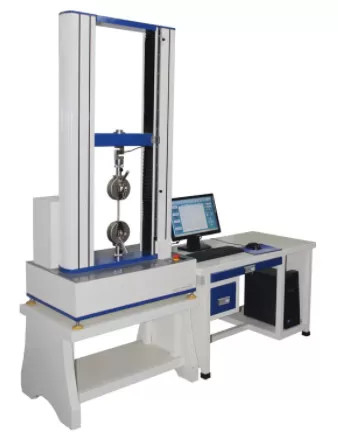

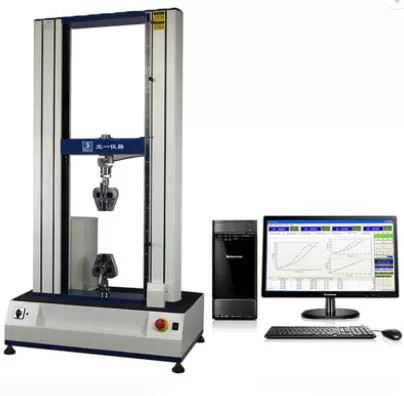

Name: Electronic Tensile Testing Machine Electromechanical Brick Compression
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYE1085
Price: 25,000.00 USD
Availability: InStock

Home > Products > Tensile Testing Machine >

Electronic Tensile Testing Machine Electromechanical Brick Compression

1PH Tensile Testing Machine

Electromechanical Tensile Testing Machine

Electro Hydraulic Tensile Tester

Place of Origin:

DONGGUAN

Brand Name:

YUYANG

Certification:

Model Number:

YYE1085

Request A Quote

Product Details

Warranty:

12 Months

Test Speed:

0.1-500mm/min

Dimension:

58*58*125cm

Load Resolution:

1/250,000

Optional Accessories:

Stretcher, Air Clamp

Power:

Electronic, 1PH, AC220V, 50/60Hz

Load Accuracy:

±0.25%

Capacity:

100KN, 200KN, 300KN

Weight:

70kg

Highlight:

1PH Tensile Testing Machine

Electromechanical Tensile Testing Machine

Electro Hydraulic Tensile Tester

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiable

Packaging Details

Wooden Boxes

Delivery Time

5-20 Days

Payment Terms

T/T

Supply Ability

300 Set/Sets per Month

YY-LDS5 Digital Tensile Testing Machine

Get Best Price

Video

For Instron Tensile Testing Machine for Testing Equipment

Get Best Price

Video

YY-WDS20 Digital Display Electronic Tensile Testing Machine

Get Best Price

Video

50KG Electric Vertical Tensile Testing Machine

Get Best Price

86-769-26622869

Contact Now

Product Description

Stainless Steel 304 UV Accelerated Weathering Tester Aging Test

Descriptions:

Tensile testing is a fundamental type of mechanical testing performed by engineers and materials scientists in manufacturing and research facilities all over the world. A tensile test (or tension test) applies force to a material specimen in order to measure the material's response to tensile (or pulling) stress. This type of testing provides insight into the mechanical properties of a material and enables product designers to make informed decisions about when, where, and how to use a given material.

Specifications:

Model	YY-1065	YY-1068
Range of speed	0.1~500mm/min	50~500 mm/min
Motor	Panasonic sevor motor	AC motor
Resolution	1/250,000	1/150,000
Capacity choice	1, 2, 5,10, 20, 50,100, 200, 500 kg optional
Stroke	850 mm (can be customized)
Accuracy	± 0.5 %
Force relative error	± 0.5 %
Displacement relative error	± 0.5 %
Test speed relative error	± 0.5 %
Effective testing space	120 mm
Accessories	Computer, printer, system operation manual
Optional accessories	Stretcher, air clamp
Operation method	Windows operation
Weight	70 kg
Dimension	(W * D * H) 58 * 58 * 145 cm
Power	1 PH, AC 220 V, 50/60 Hz
Stroke protection	Machinery, computer double protection, prevent over preset
Force protection	system setting
Emergency stop device	Handling emergencies

Electronic Tensile Testing Machine Electromechanical Brick Compression
